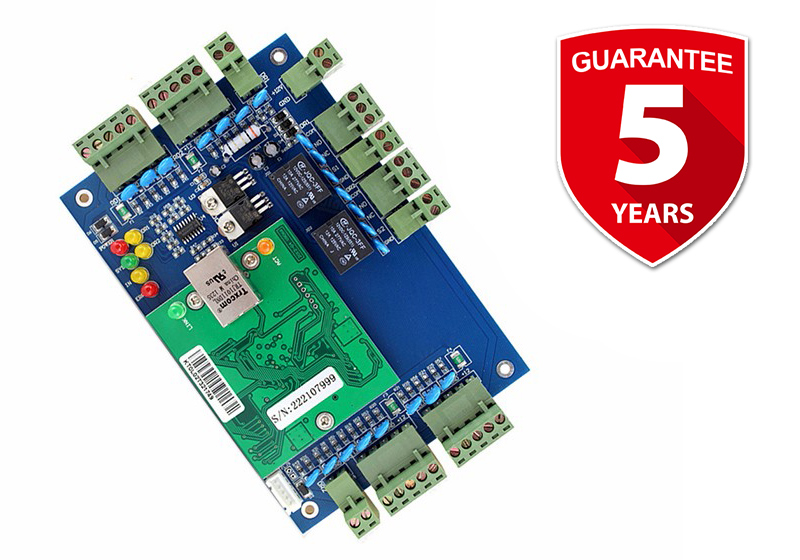

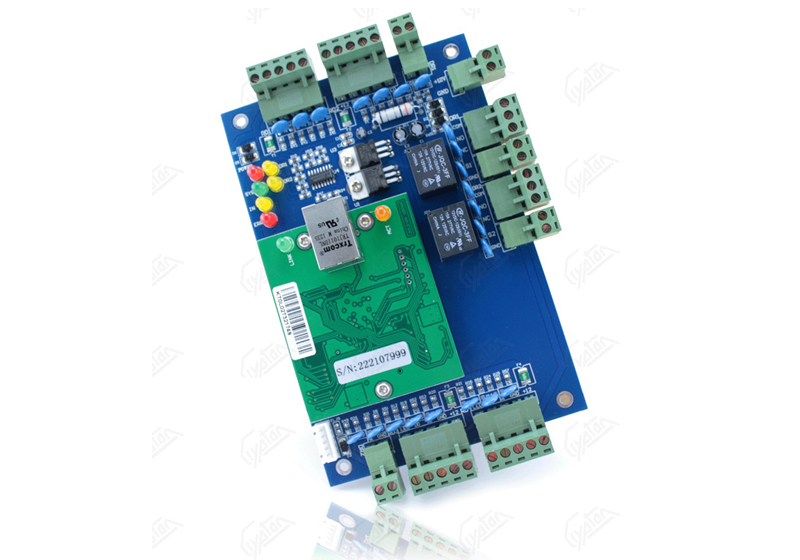

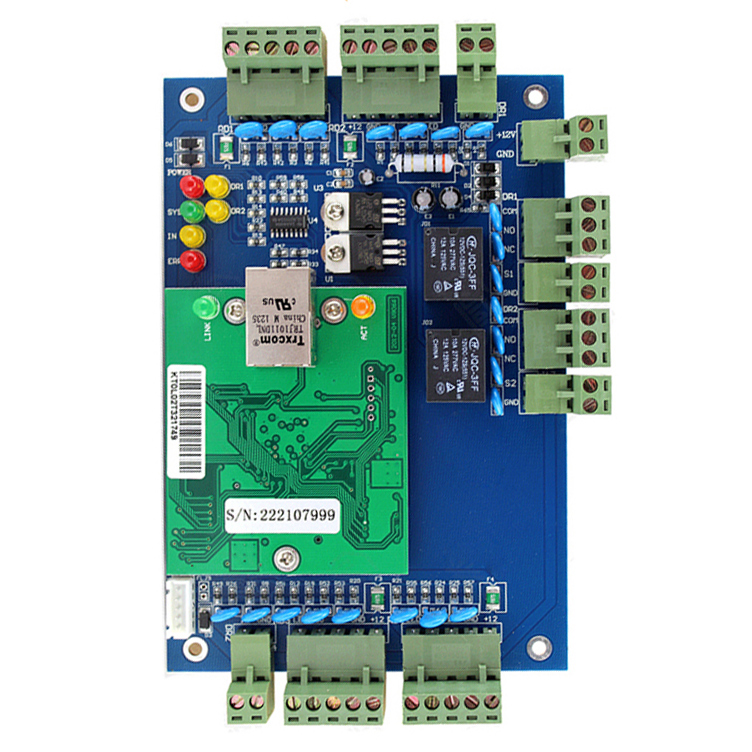

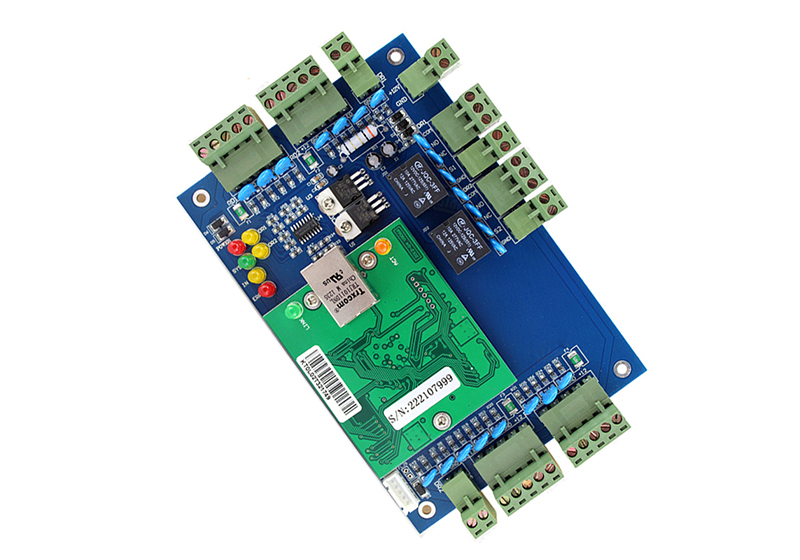

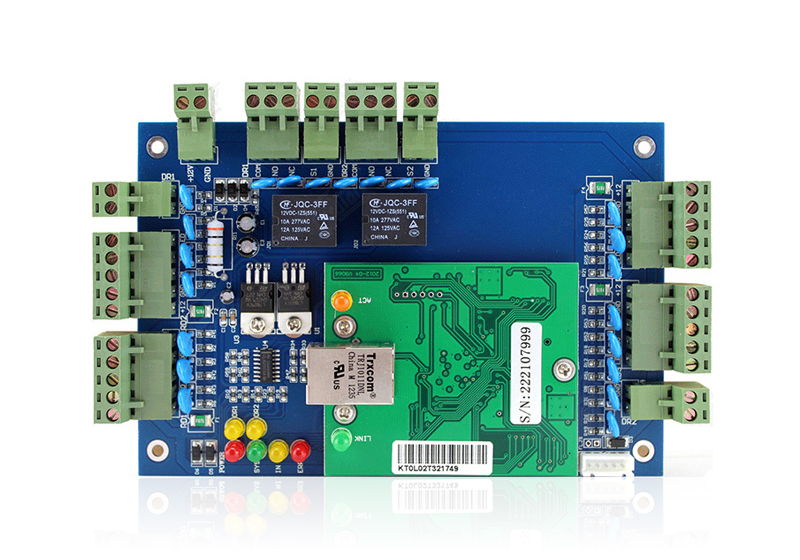

TCP/IP Double Door Access Control Controller

Double door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software.

Model: ACB-002

  • Brand:

    S4A
  • Item NO.:

    ACB-002
  • Specifications

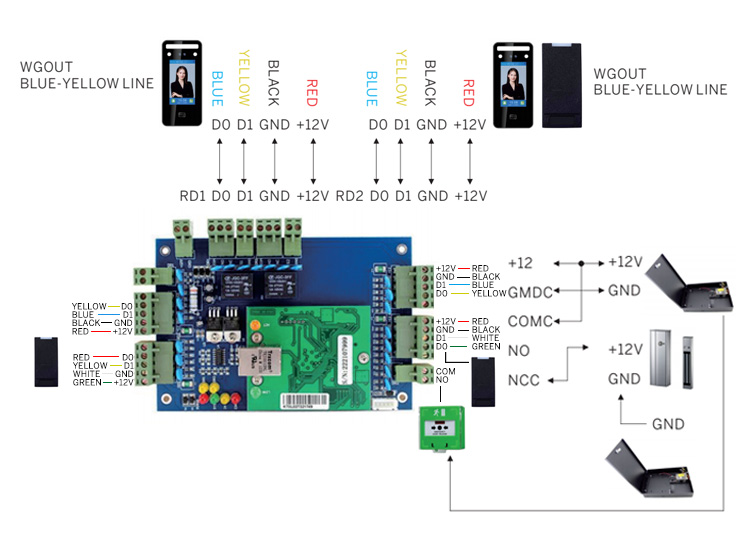

  • Wiring Diagram

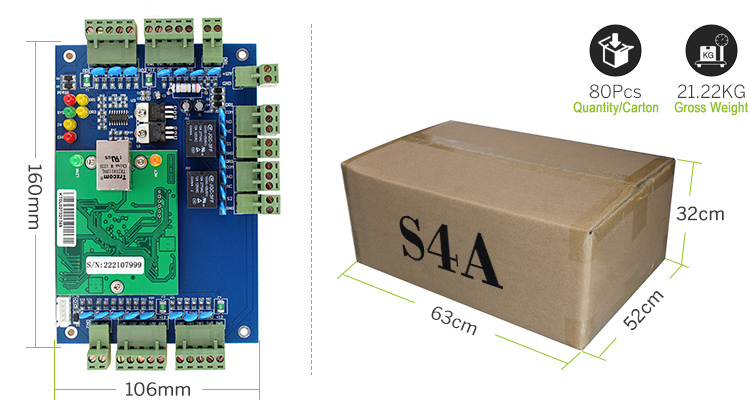

  • Package

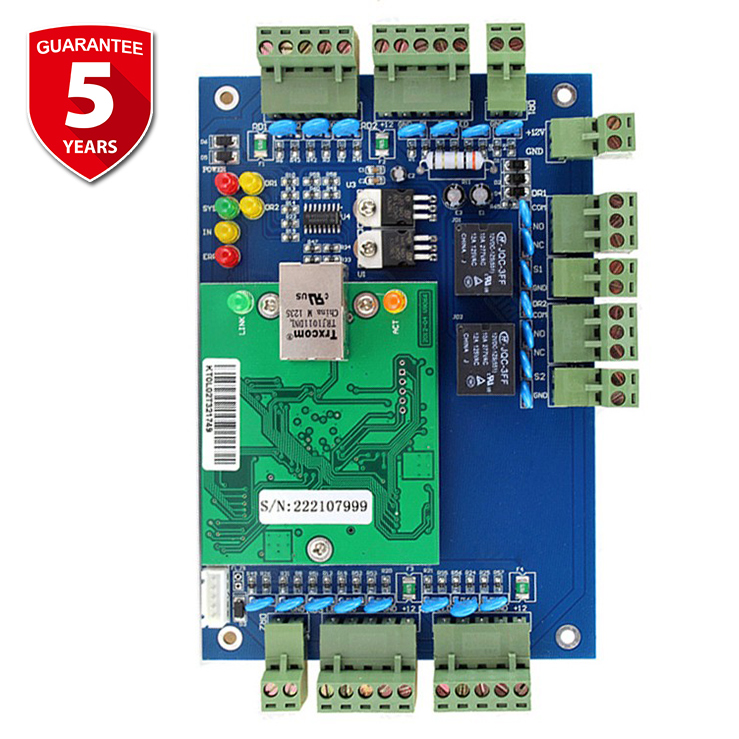

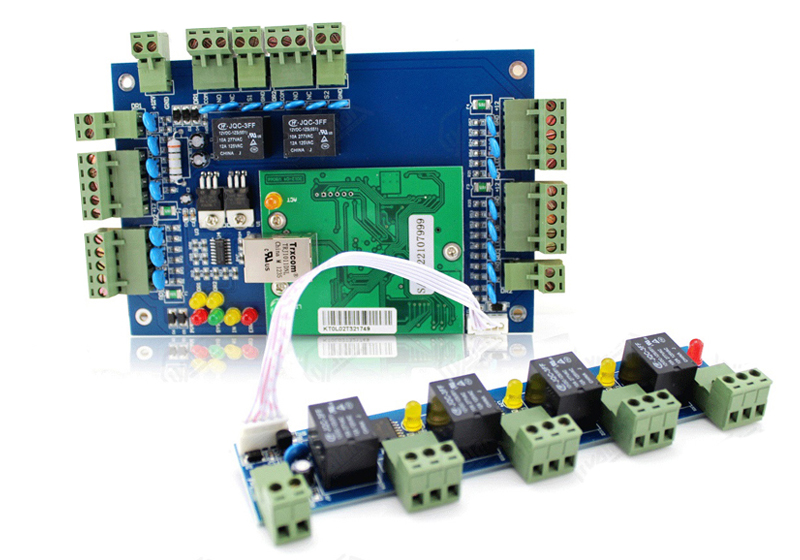

Double 2 Door TCP/IP Network Access Control PCB Board Wiegand Gate Panel Access Control Board with SDK Free Software

Model No.: ACB-002


S4A brand access control boards offer a variety of benefits, including the following:

Standalone operation: Embedded standalone access control systems do not require a constant connection to an external server or network, making them suitable for environments with limited or unreliable network connectivity.

Ease of use: S4A standalone access control systems are typically easier to install, configure, and manage than network-based systems, with a user-friendly interface that does not require specialized technical knowledge to operate.

Cost-effective: No additional infrastructure or complex network equipment is required, making them less expensive for small to medium-sized installations with a limited number of access points.

Reliable: Since they do not rely on an external network or server, they are less susceptible to network outages or interference, ensuring stable operation of access control functions.

Secure: Encryption and secure authentication mechanisms are often integrated to protect sensitive access control data from unauthorized access.

Flexible deployment: They can be used in a variety of environments, including remote areas, temporary installations, or areas with limited infrastructure.

Scalable: They can be easily expanded or reduced to accommodate changing access control needs, and additional standalone devices can be installed as needed without complex reconfiguration.
Protect privacy: Access control data is stored locally on the system, providing additional privacy protection for organizations that value data privacy and control.
In addition, the S4A access control board has some other advantages, such as being made of high-quality materials, durable and long-lasting. Some models support functions such as mobile phone Bluetooth door opening, remote electronic key sending door opening, various door opening methods, large user registration capacity, and anti-tampering alarm, door magnetic alarm, anti-duress alarm and other functions, further improving security

Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping a card or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button

Control 4 doors, get in the door by swiping the card, and get out-door by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

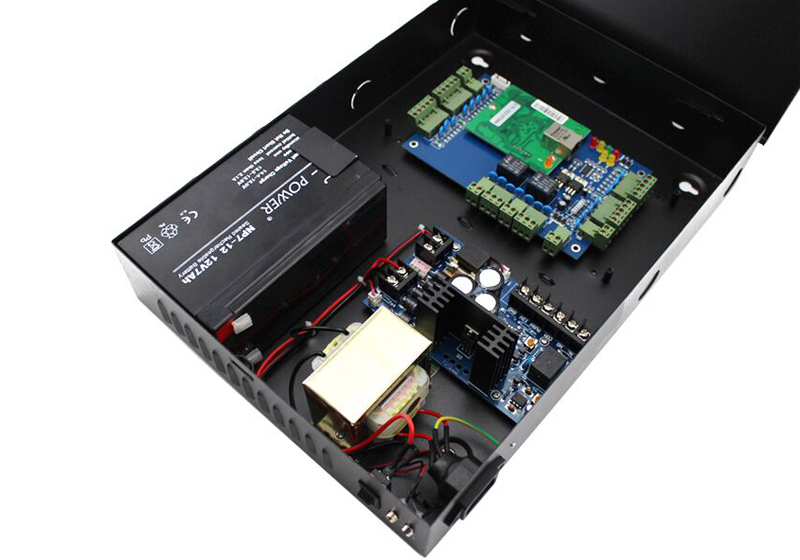

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2pcs

4pcs

4 pcs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit
