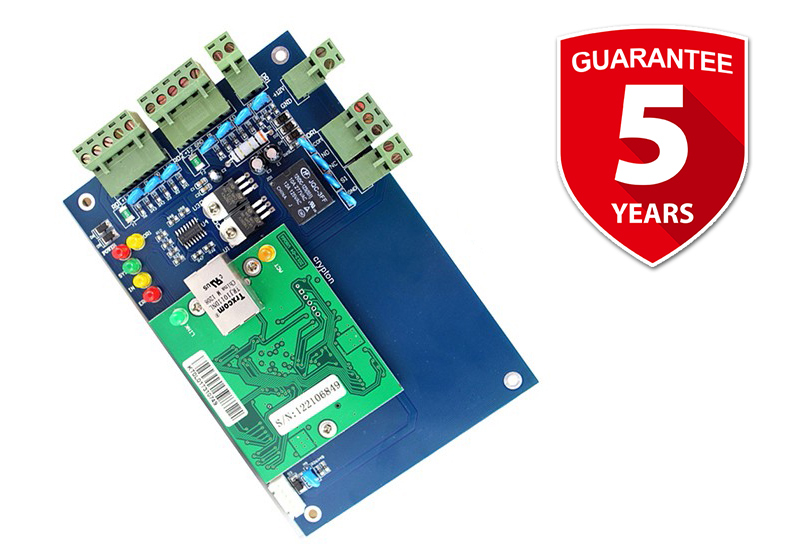

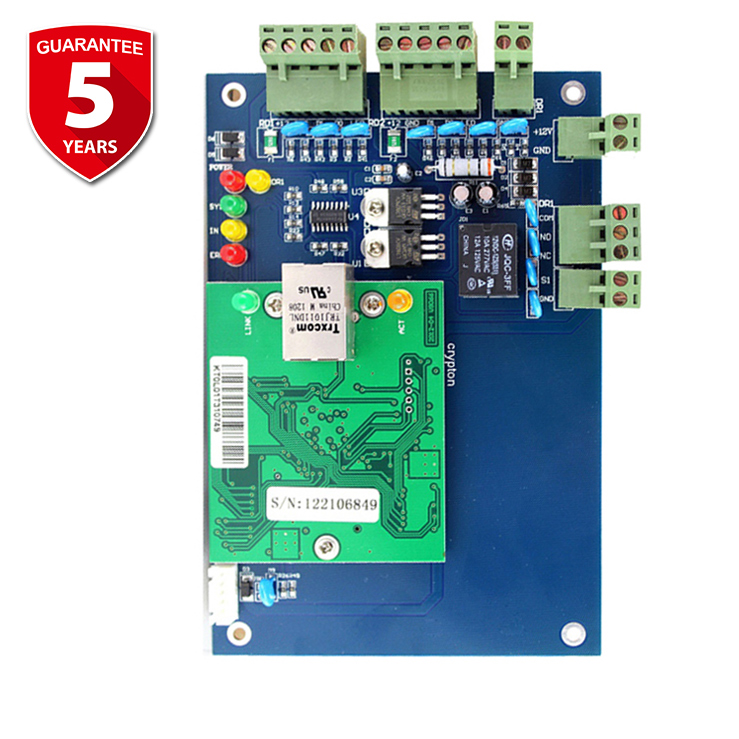

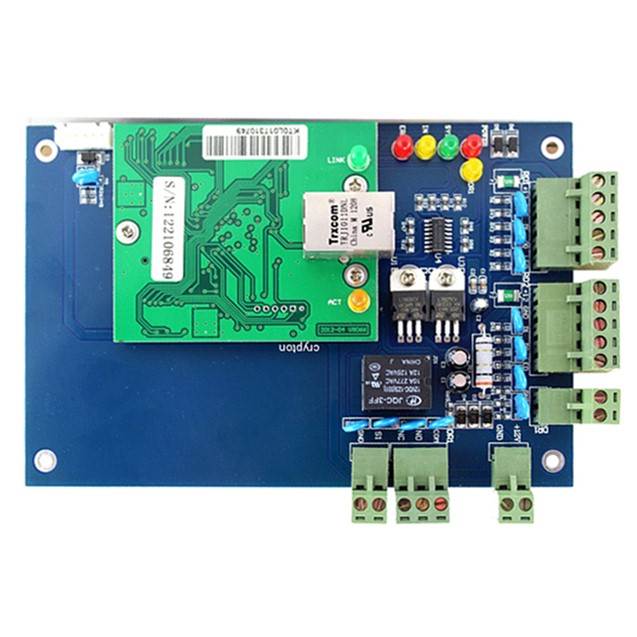

Single door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software and SDK

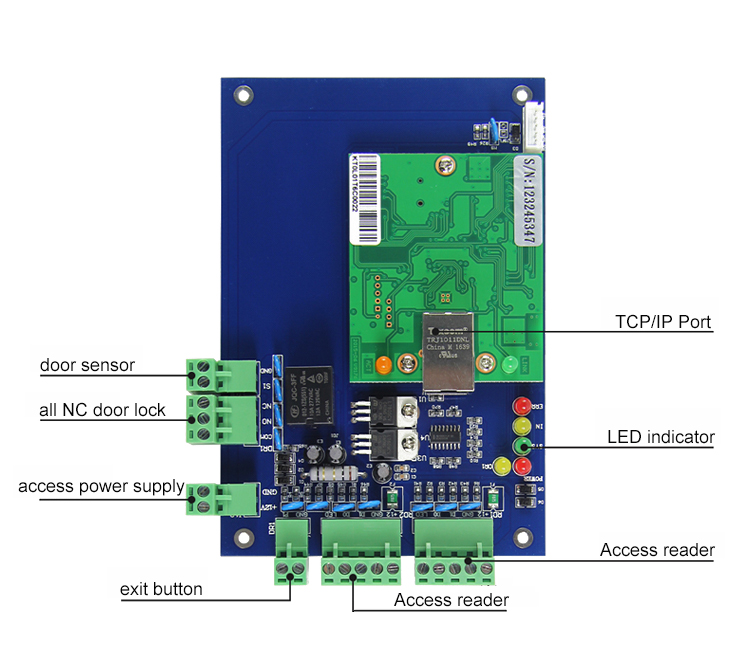

1door support 2pcs RFID Access reader or 1pcs RFID reader+1pcs exit push button
Brand:
S4AItem NO.:
ACB-001Wholesale Price RFID System One Doors Network Panel Wiegand Gate Access Control Panel
Model No.: ACB-001

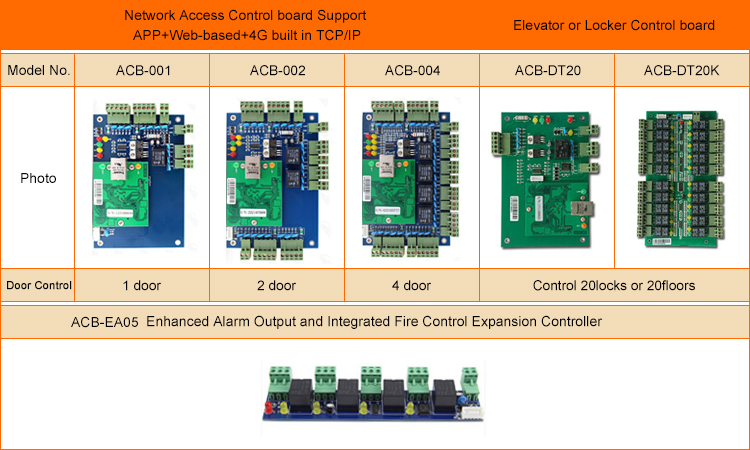

For the networked control panel, we have a single door, a double door, and four doors.
The software is permanently free. The main selling point of our control board
is the software function. The function is particularly powerful.
Such as Task List, Time profile. Anti-passback function etc,
If you want to know more specific functions, please feel free to leave me a message.
Parameter
Single Door Control Panel
Multi Door (2) Control Panel
Multi Door (4) Control Panel
Model #
ACB-001
ACB-002
ACB-004
Communication
TCP/IP 10M/100M adaptive
TCP/IP 10M/100M adaptive
TCP/IP 10M/100M adaptive
Description
Control 1 door, get in and out the door by swiping the card or get in by swiping the card and get out the door by button
Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button
Control 4 doors, get in the door by swiping the card and get out the door by button

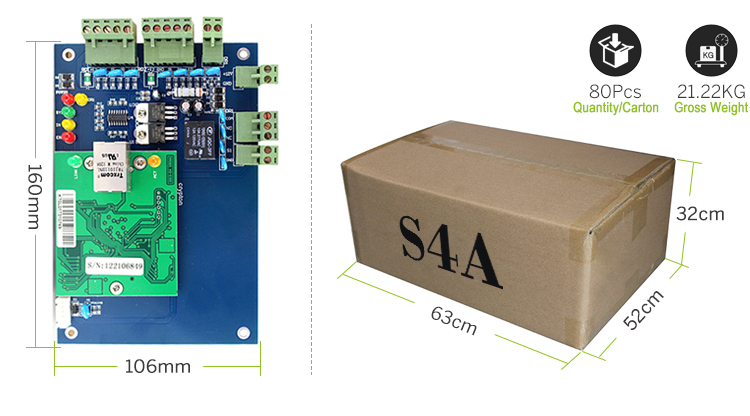

Size of PCB board
160mm*106mm
160mm*106mm
160mm*106mm
Size of Case
273mm*228mm*65mm
Power Supply
12VDC 4-7A
Power Consumption of Circuit Board
Less than 100mA

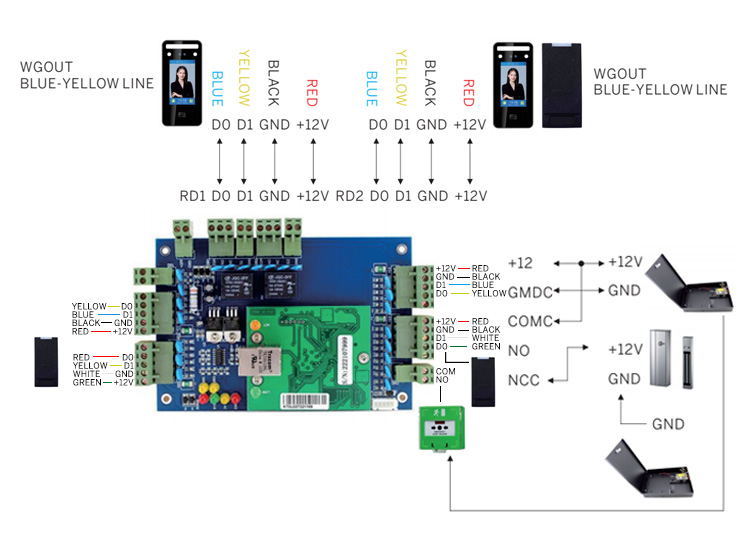

Input Format of Reader
Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)
Quantity of Readers
2pcs
4pcs
4 pcs
Door Controlled
1door
2 Doors
4 Doors
Door opening time extending setting
1-600 seconds(adjustable)
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
