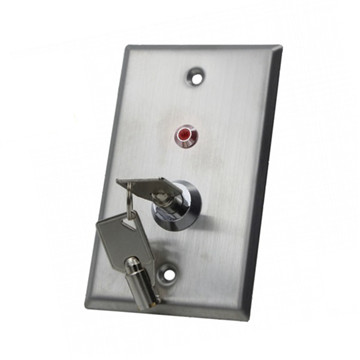

Switch Lock On/Off Key Switch Emergency Door Release SPST for Access Control Panel Mount with 2 Keys

>SPDT ( NO/NC/COM ), Round Key_x000d_ Red LED indicator only
>Input: DC12V

>Material: Material

>Contact Rating: 3A/125-250VAC



  • Brand:

    S4A
  • Item NO.:

    EB-S70KL
  • Specifications

Switch Lock On/Off Key Switch Emergency Door Release SPST for Access Control Panel Mount with 2 Keys
Model No.: EB-S70KL

Product Parameter

Parameter Description

S4A Model

EB-S70KL

Product Name

Key Switch


Dimensions

115Lx70W(mm)

Material

Stainless Steel

Output Contact

SPDT ( NO/NC/COM )

Key

Round Key

LED

Red


Installation Diameter

19mm

Input

DC12V

Contact Rating

3A/125-250VAC

Mechanical Life

500000 tests

Operating temp

-20℃~+55℃(14-131F)

Suitable Humidity

0-95% (relative humidity)


Unit Weight

0.153KG

Standard Package

100PCS/carton

Carton Weight

16.5KG

Carton Size

51*43*33(cm)

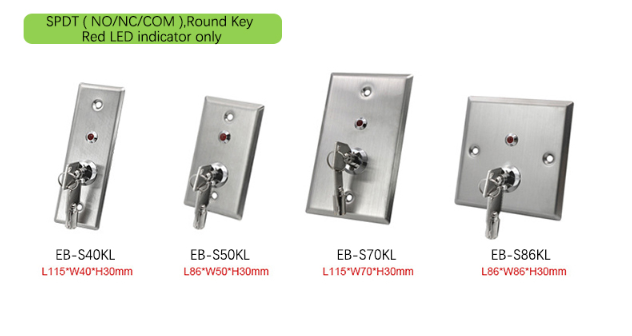

Key Switch Lock
