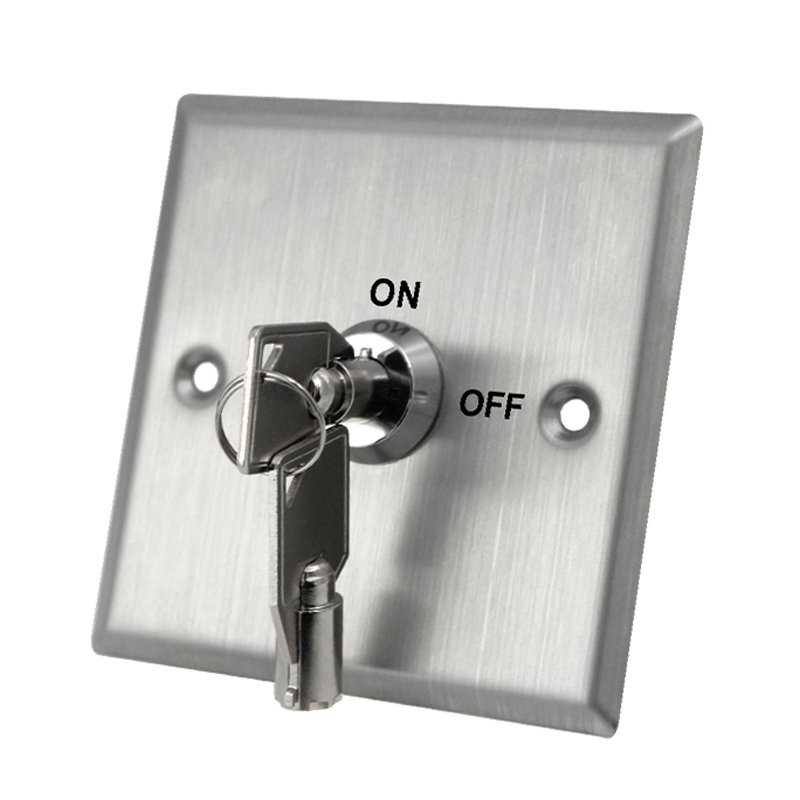

EB-S86K Door Security Emergency Stainless Steel Door Release Key Switch

>SPDT ( NO/NC/COM ), Round Key
>Input: DC12V
>Contact Rating: 3A/125-250VAC

  • Brand:

    S4A
  • Item NO.:

    EB-S86K
  • Specifications
  • Package

EB-S86K Door Security Emergency Stainless Steel Door Release Key Switch
Model No.: EB-S86K

Product Parameter

Parameter Description

S4A Model

EB-S86K

Product Name

Key Switch

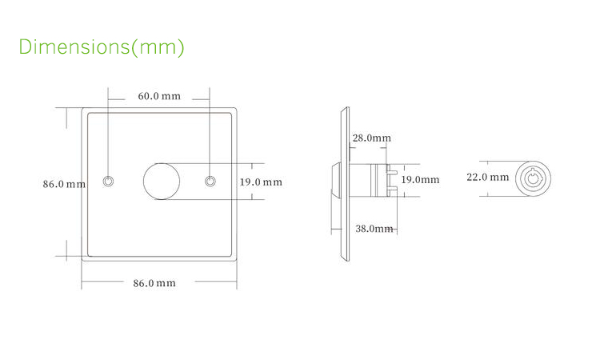

Dimensions

86Lx86W(mm)

Material

Stainless Steel

Output Contact

SPDT ( NO/NC/COM )

Key

Round Key


Installation Diameter

19mm

Input

DC12V

Contact Rating

3A/125-250VAC

Mechanical Life

500000 tests

Operating temp

-20℃~+55℃(14-131F)

Suitable Humidity

0-95% (relative humidity)


Unit Weight

0.128KG

Standard Package

100PCS/carton

Carton Weight

14KG

Carton Size

50*45*28(cm)

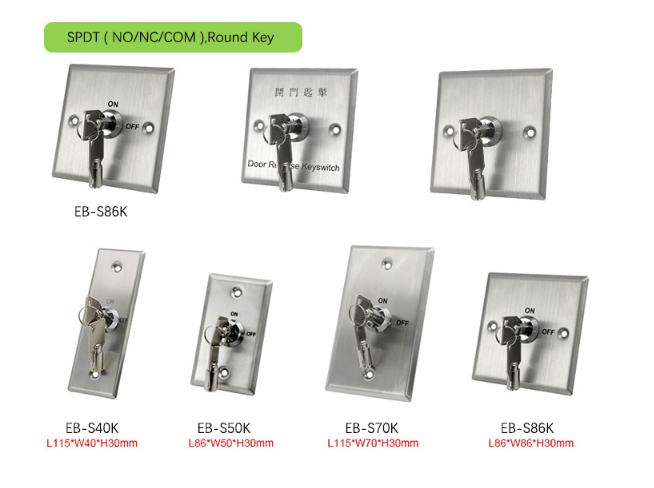

Stainless Steel Door Release Button

Stainless Steel Door Release Button
