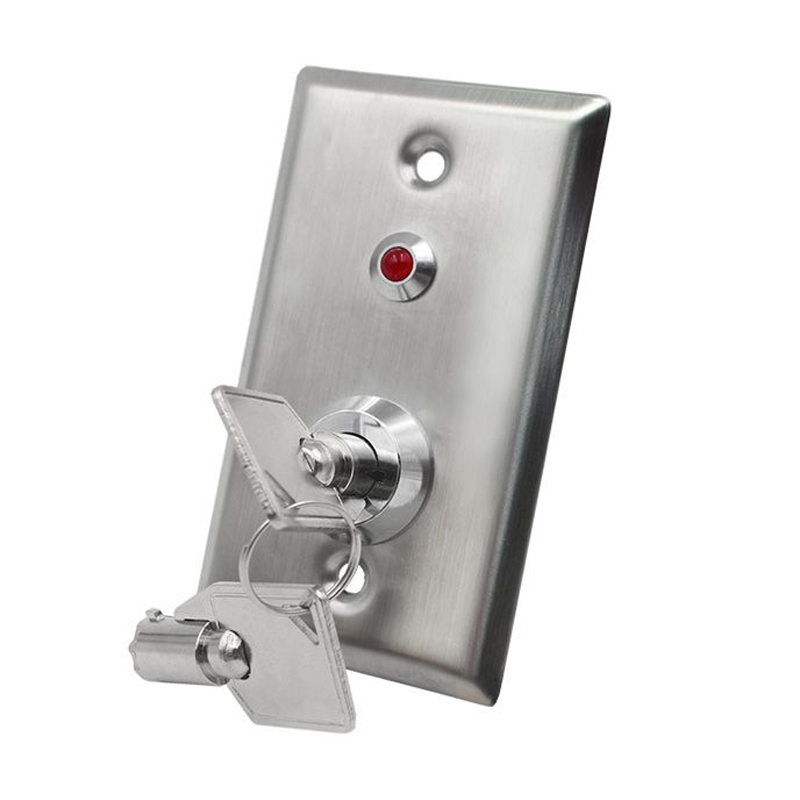

Factory Price EB-S50KL Door Access Control Exit Push Buttons And Emergency Pull Station Exit Switches

>SPDT ( NO/NC/COM ), Round Key_x000d_ Red LED indicator only
>Input: DC12V

>Material: Material

>Contact Rating: 3A/125-250VAC



  • Brand:

    S4A
  • Item NO.:

    EB-S50KL
  • Specifications
  • Package

Factory Price EB-S50KL Door Access Control Exit Push Buttons And Emergency Pull Station Exit Switches
Model No. :EB-S50KL

Product Parameter

Parameter Description

S4A Model

EB-S50KL

Product Name

Key Switch

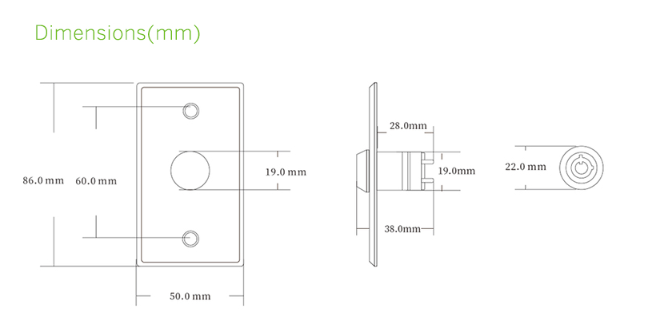

Dimensions

86Lx50W(mm)

Material

Stainless Steel

Output Contact

SPDT ( NO/NC/COM )

Key

Round Key

LED

Red


Installation Diameter

19mm

Input

DC12V

Contact Rating

3A/125-250VAC

Mechanical Life

500000 tests

Operating temp

-20℃~+55℃(14-131F)

Suitable Humidity

0-95% (relative humidity)


Unit Weight

0.13KG

Standard Package

100PCS/carton

Carton Weight

14KG

Carton Size

50*45*28(cm)

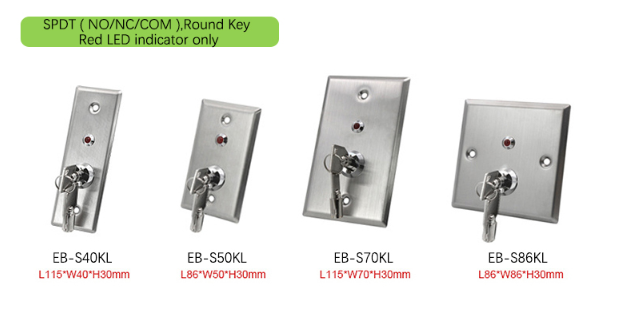

Key Switch Lock

Key Switch Lock
