Standalone Proximity Reader with Metal Case and Anti-vandal

> Card type: EM Card

> Metal case, anti-vandal

> Waterproof conforms to IP66

> One relay, 2000 users, standalone

> Pulse mode, toggle mode

> Built-in LDR for anti-tamper

> Card block enrolment

  • Brand:

    S4A
  • Item NO.:

    S6
  • Specifications

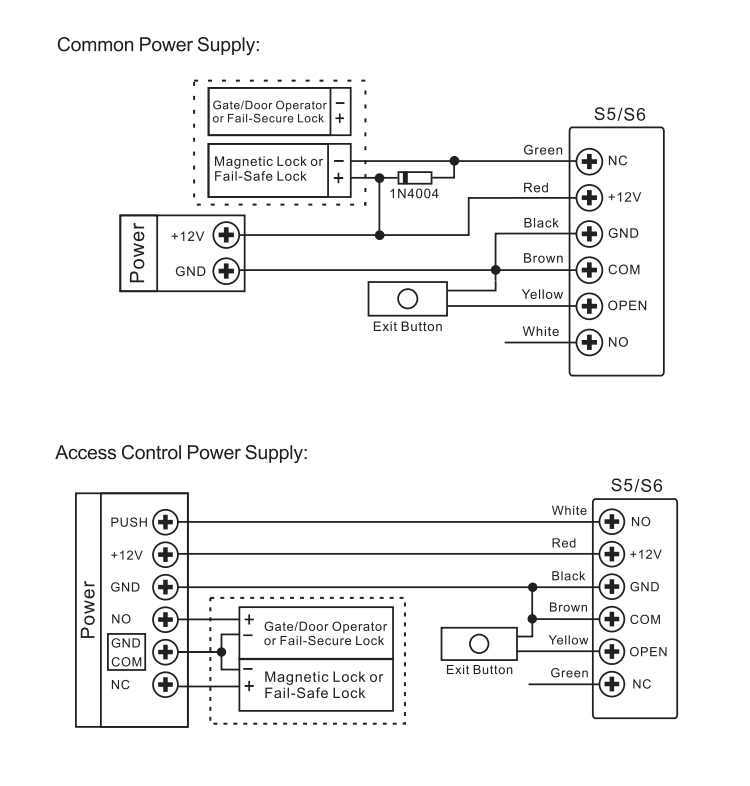

  • Wiring Diagram

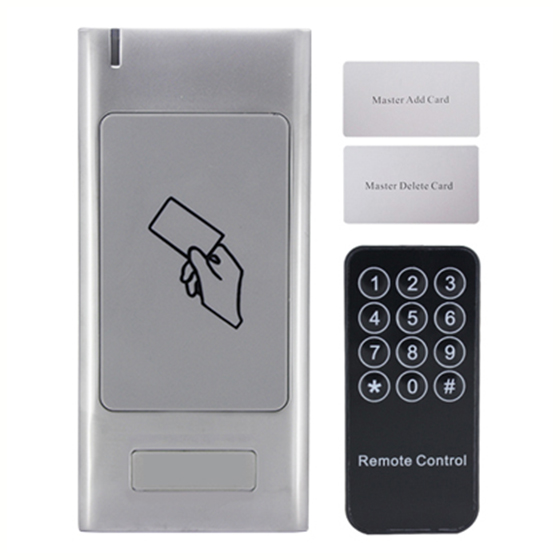

  • Package

Standalone Proximity Reader with Metal Case and Anti-vandal

Model No.: S6 EM


The S6-EM is a compact, waterproof stand-alone programmable access control system that provides proximity entry.

The product unique feature is simple in design, easy operation, and high reliability.

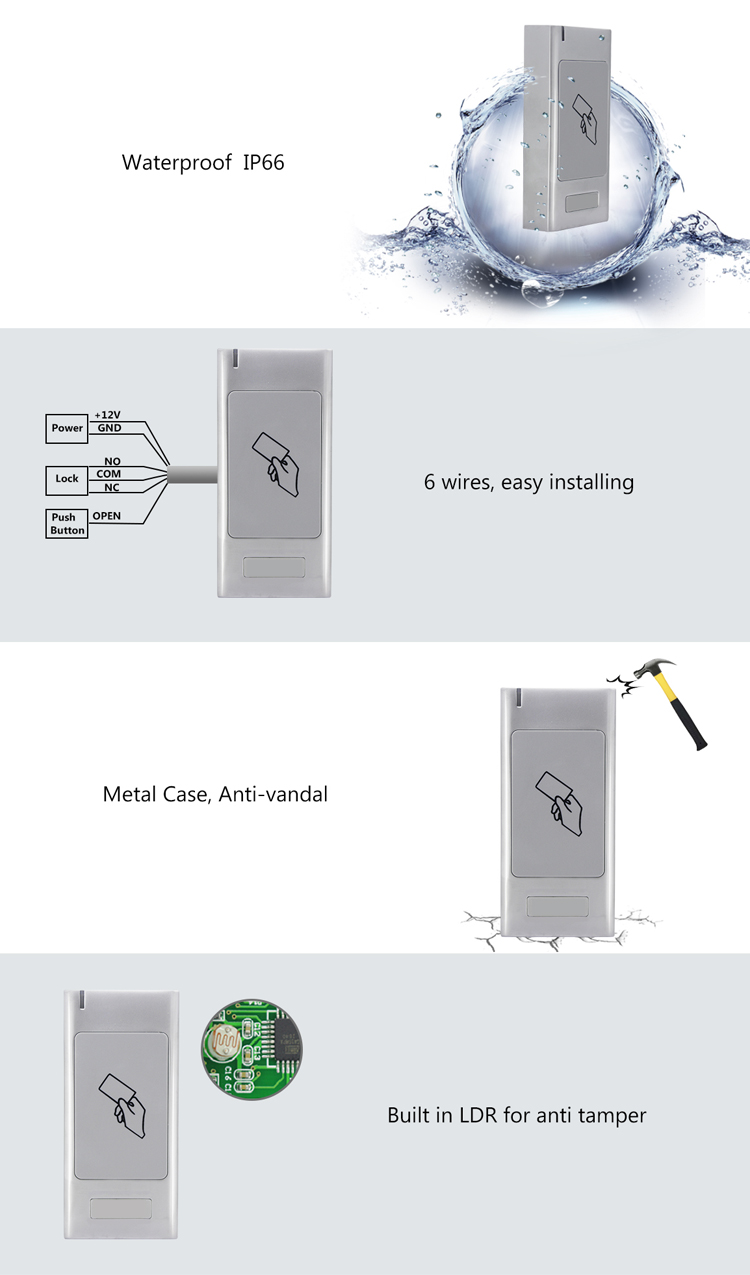

> Metal case, anti-vandal

> Waterproof conforms to IP66

> One relay, 2000 users, standalone

> Card type: 125KHz EM card

> Pulse mode, toggle mode

> Built-in LDR for anti-tamper

> Card block enrolment


User Capacity

2000

Card

EM Card

Operating Voltage

9~24V DC

Idle Current

< 40mA

Proximity Card Reader

EM

Radio Technology

125KHz

Read Range

3~10cm

Wiring Connections

Relay output, exit button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0-99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Operating Humidity

20% RH ~ 98% RH

Physical

Zinc Alloy

Surface Finish

Powder Coat

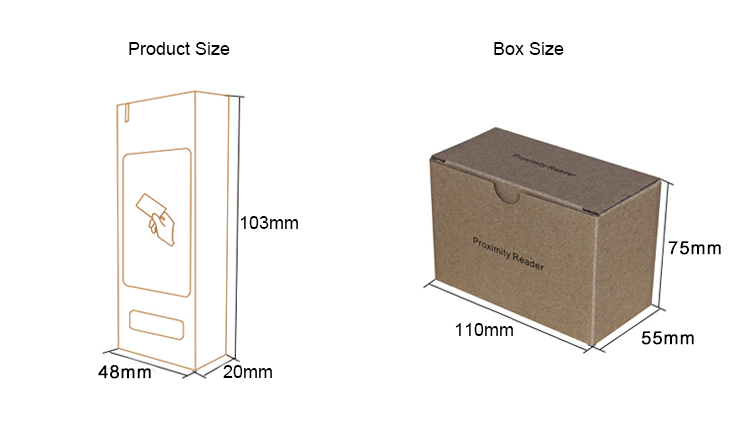

Dimensions

103L x 48W x 19H (mm)

Unit Weight

260g

Shipping Weight

320g

Standalone Proximity Reader

Standalone Proximity Reader

Standalone Proximity Reader
