New Products

Standalone Economical Reader

> Card type: EM or MF Card

> Waterproof conforms to IP66

> One relay, 2000 users, standalone

> Pulse mode, toggle mode

> Built-in LDR for anti-tamper

  • Brand:

    S4A
  • Item NO.:

    S2
  • Specifications

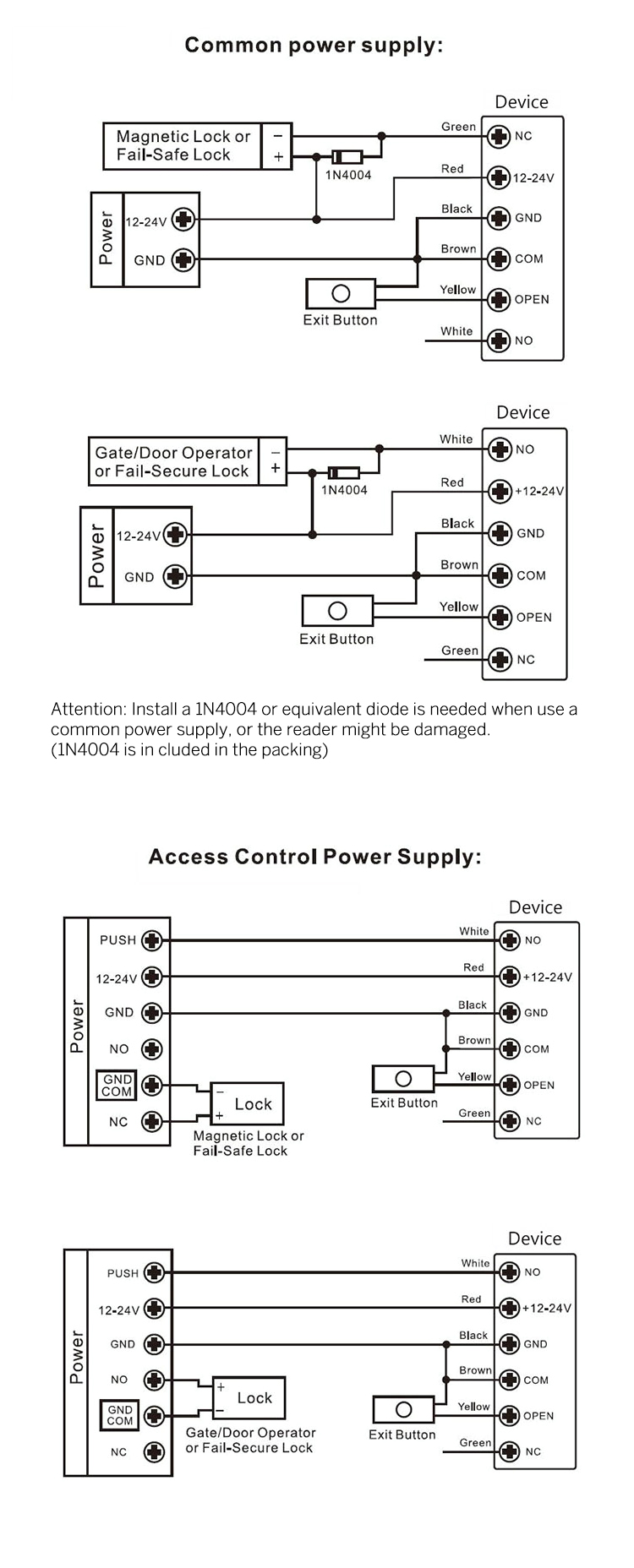

  • Wiring Diagram
  • Package
  • Download

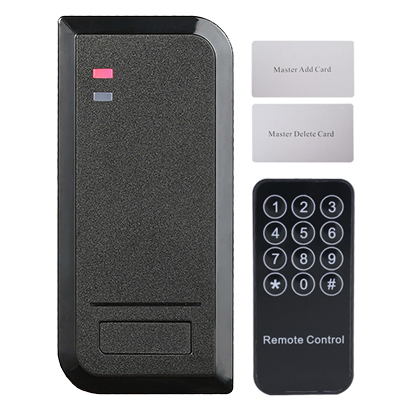

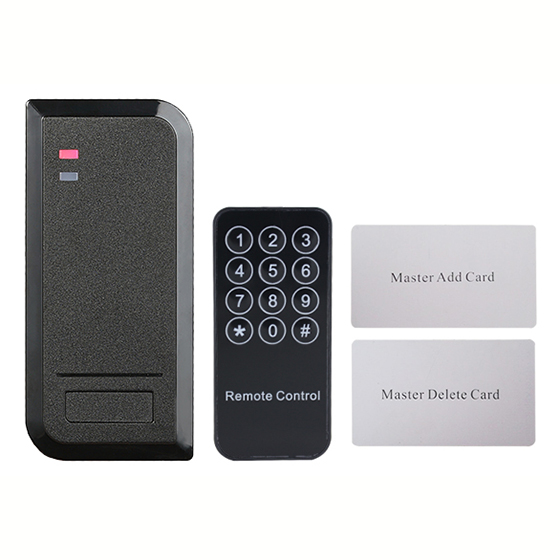

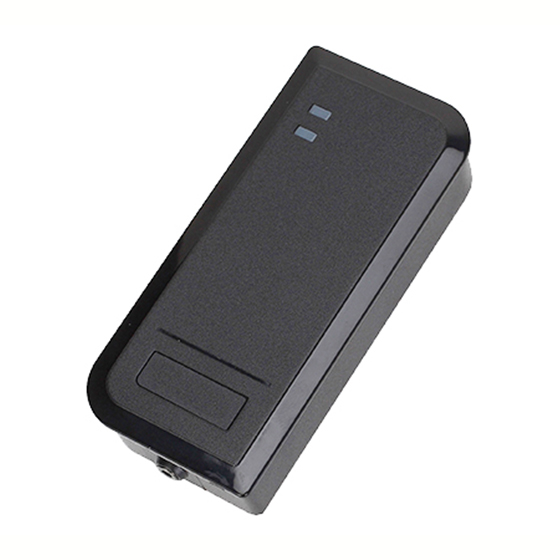

Standalone Economical Reader

Model No.: S2 EM, MF


The S2-EM is a compact, waterproof stand-alone programmable access control system.

The product unique feature is simple in design, easy operation, and high reliability.

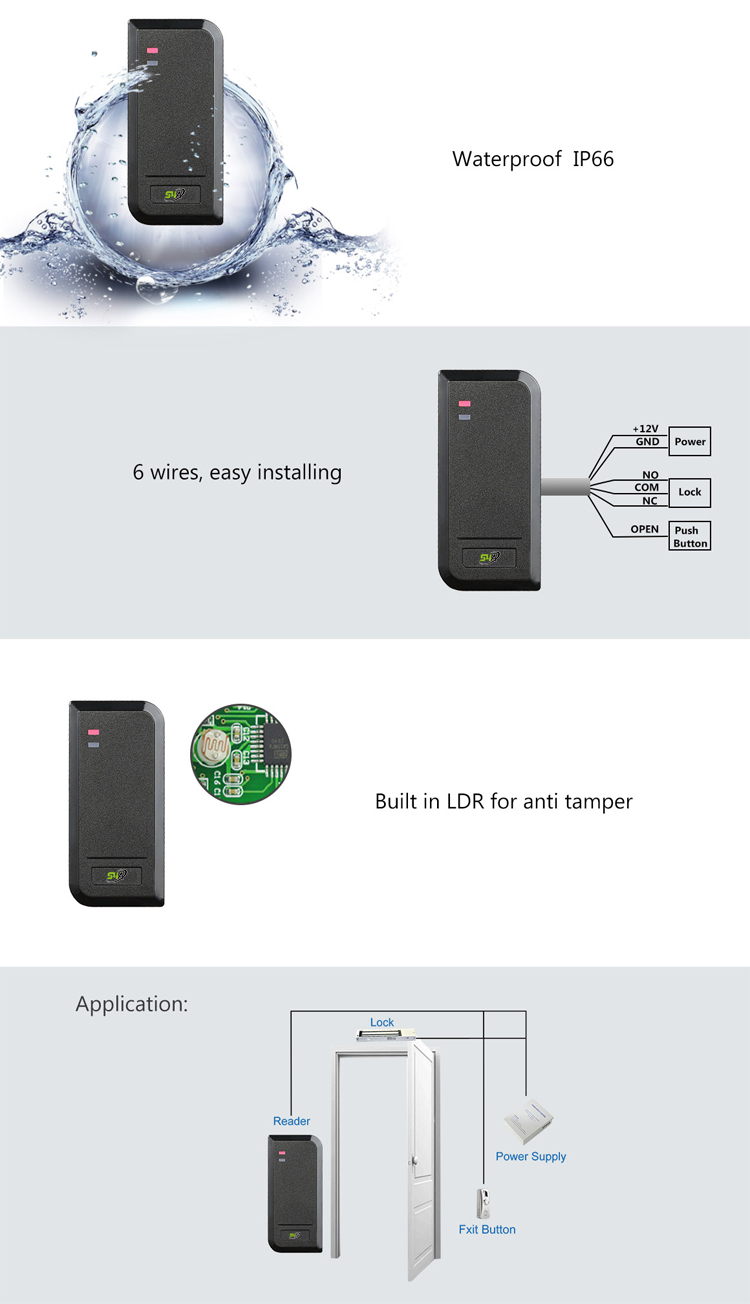

> Waterproof conforms to IP66

> One relay, 2000 users, standalone

> Card type: 125KHz EM card only

> Pulse mode, toggle mode

> Built-in LDR for anti-tamper

> Card block enrolment

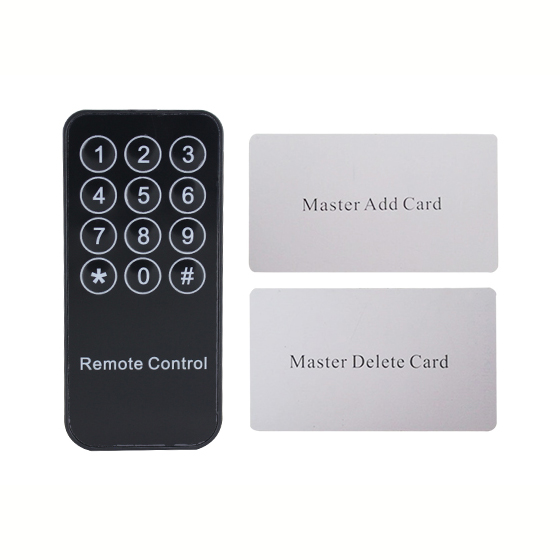

> Easy for programming by master cards and remote control

> Easy for install, 6 wires only


User Capacity

2000

Card

EM or Mifare Card

Operating Voltage

9~24V DC

Idle Current

< 40mA

Proximity Card Reader

EM, MF

Radio Technology

125KHz or 13.56MHz card

Read Range

3~10cm

Wiring Connections

Relay output, exit button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0-99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Operating Humidity

20% RH ~ 98% RH

Physical

ABS Shell

Colour

Black

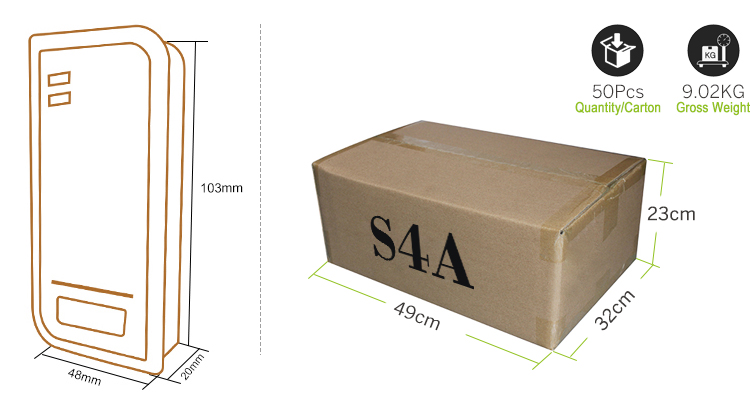

Dimensions

103L x 48W x 20H (mm)

Unit Weight

100g

Shipping Weight

150g

Standalone Economical Reader

Standalone Economical Reader

Standalone Economical Reader

Model No.

Quantity/Carton

Gross Weight

Carton Size

S2

50pcs

9.02KG

49x32x23cm

Standalone Reader

S4A User Manual S2_Standalone Economical Reader
