Standalone RFID Access Control

/

Cheap ABS RFID Access Control

/Standalone Access Control Module

New Products

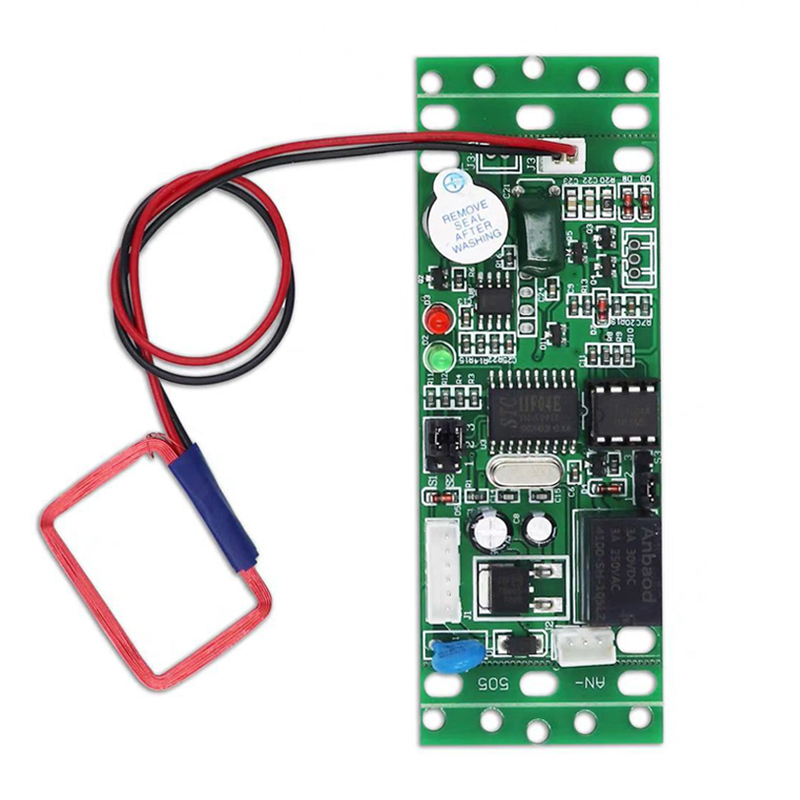

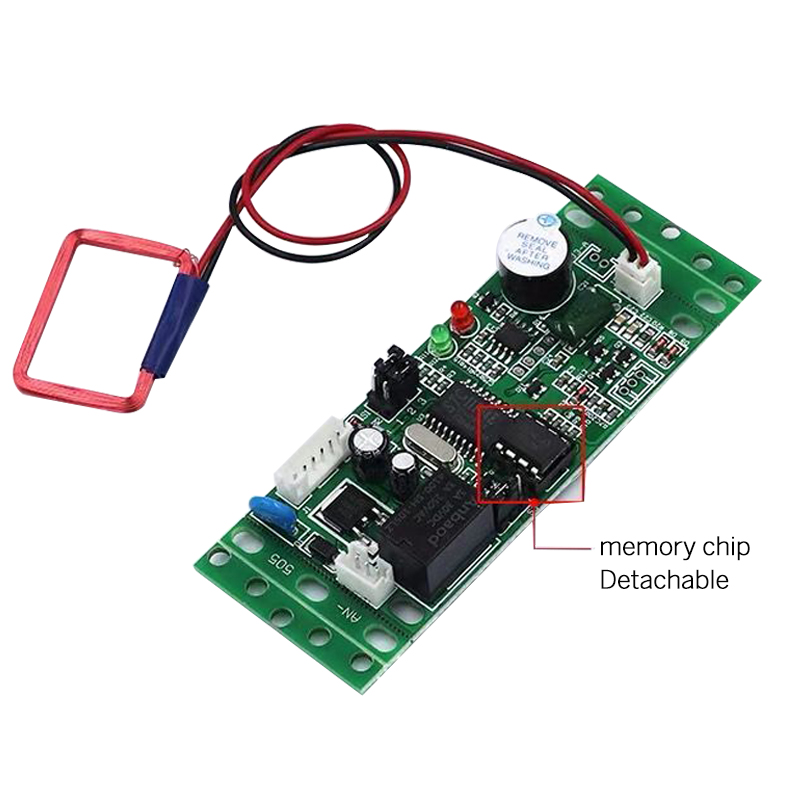

Standalone Access Control Module

> Card type: EM or MF Card

> User Capacity: 2000

> Access Controller PCB board

> Voltage: DC12V

  • Brand:

    S4A
  • Item NO.:

    PCB-1
  • Specifications
  • Package
  • Download

Standalone Access Control module

Model No.: PCB-1 EM, MF


Card type

EM or MF

Working frequency

125KHz or 13.56MHz

Capacity

2000 users

Card reading distance

1-15cm

Operating voltage

DC12V ±10%

Operating current

<100mA

Relative humidity

20%~80%

Dimensions

86 * 45 * 12mm


Installations Guide:


Mark

Colour

Function

+12V

Red

Power+

GND

Black

Power-

NO

BLUE

Relay NO output

COM

Yellow

Relay Com output

NC

Grey

Relay NC output

OPEN

White

Door Release


Standalone Access Control Module

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

PCB-1

100PCS

7.08KG

11.5KG

58X38X25cm



Access Control module


S4A User Manual PCB-1_Standalone Access Control Module

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
