Card type: EM+Mifare Dual Cards
Card capacity: 20000pcs
Voltage: DC12V
Brand:
S4AItem NO.:

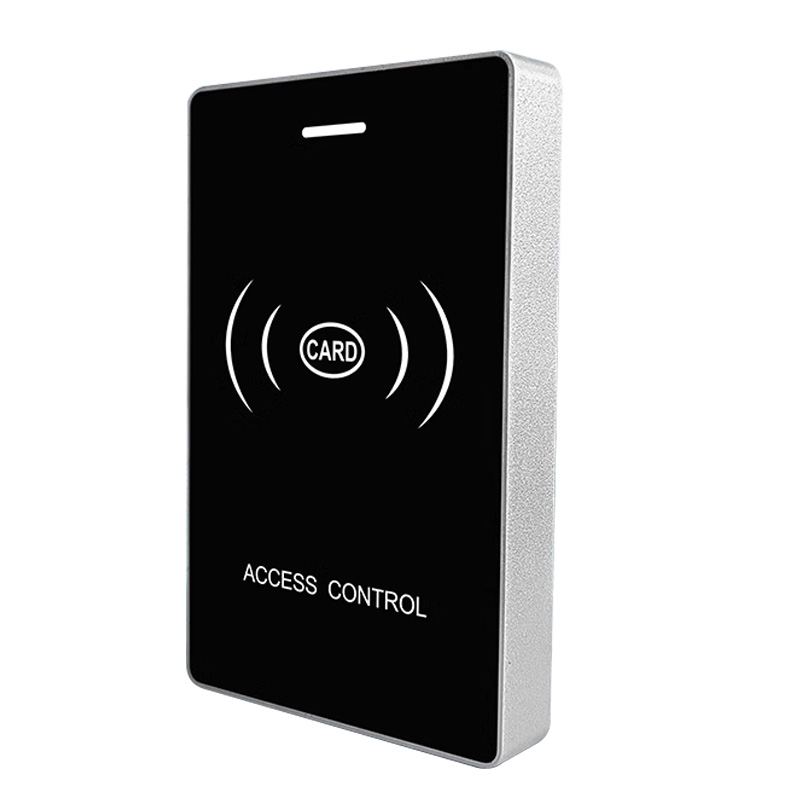

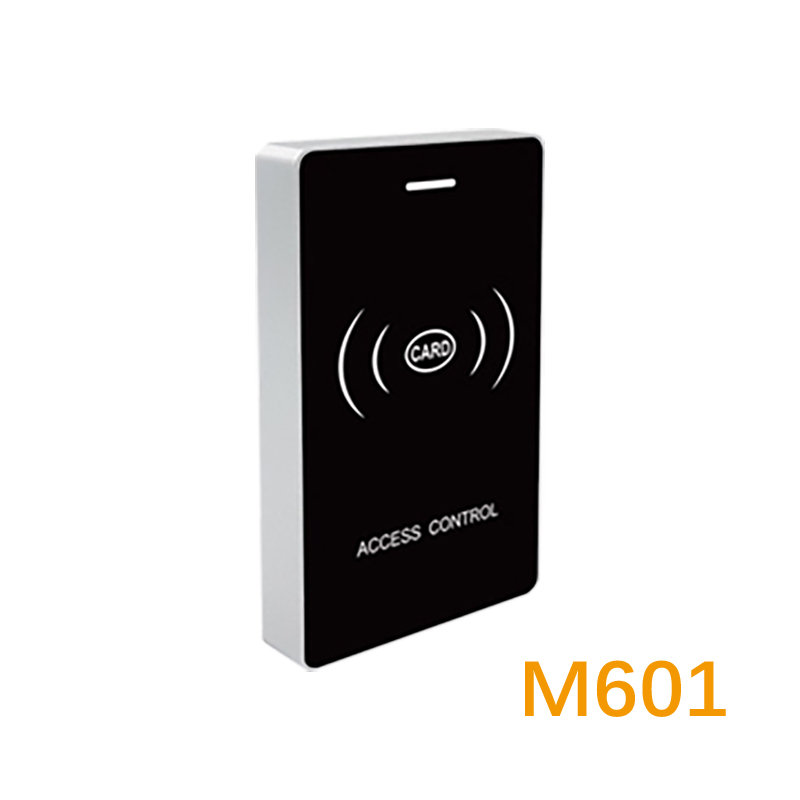

M601RFID Standalone Access Control with Add and Delete Card support ID+IC
| Product Parameter | Parameter Description |
| S4A Model | M601 |
| Product Name | RFID Standalone Access Control |
| Card type | EM 125KHz+ MIfare 13.56MHz Dual Cards |
| Card capacity | 20000pcs |
| Voltage | DC12V |
| Work current | 150mA |
| Operating Temperature | 0℃ ~ 45℃ |
| Storage Temperature | -10℃ ~ 55°C (14°F-131°F) |
| Relative Humidity operating | 40%RM~90%RH |
| Storage | 20%RH~90%RH |
| Dimensions | 114 x 71 x 15mm |
The S4A RFID Standalone Access Control with Add and Delete Card support for ID + IC cards offers the following advantages:
1. High Security: Both ID and IC cards have their security features. The IC card, in particular, comes with encryption measures, enabling data storage and ensuring high security. It allows for the setting of different passwords for reading and writing data, providing a good hierarchical management approach to safeguard system security. In contrast, the ID card, while having a lower security level, can still be used in scenarios with lower security requirements. The combination of the two cards caters to different security needs.
2. Convenient Card Management: The ability to add and delete cards offers great convenience. Administrators can easily manage user access rights through the management system by adding new cards for authorized personnel or deleting cards of those who no longer need access. This helps maintain the security and order of the access control system, adapting to changes in personnel and access rights.
3. Strong Independence: As a standalone access control system, it operates independently without relying on constant connectivity to external servers or networks. This makes it suitable for use in environments with limited or unreliable network connectivity, such as remote areas, temporary work sites, or places with poor network coverage. It can still function stably, ensuring the normal operation of access control.
4. Simple Installation and Management: S4A standalone access control systems are generally easier to install, configure, and manage compared to network-based systems. They usually feature a user-friendly interface, which is accessible to users without extensive technical knowledge. Even ordinary staff can quickly master the basic operations, reducing the need for professional technical support and lowering management costs.
5. Cost-Effectiveness: Since standalone access control systems do not require additional infrastructure or complex networking equipment, they can be more cost-effective than networked access control systems. This makes them suitable for small - to medium-sized installations with a limited number of access points, helping users save on hardware and installation costs.
6. High Reliability: Not being reliant on external networks or servers, standalone access control systems are less susceptible to network outages or disruptions, ensuring consistent access control functionality. Whether there are network failures, power outages, or other emergencies, the system can still maintain normal access control operations to the greatest extent possible, reducing the risk of security breaches.
7. Flexible Deployment: These systems offer flexibility in terms of deployment options and can be used in various settings. They are not restricted by specific environmental conditions and can be flexibly deployed in different types of buildings, such as offices, residential communities, villas, banks, and prisons, meeting the access control needs of different scenarios.
8. Good Scalability: S4A standalone access control systems can be easily scaled up or down to accommodate changing access control requirements. As the number of access points or users increases, additional standalone devices can be installed as needed without complex reconfigurations, allowing the system to grow with the user's needs.






S4A User Manual_RFID Standalone Access Control with Add and Delete Card support ID+IC
