> Power supply: AC220V/50Hz 4.5W
> Sensitivity: 3 levels adjustable (low, medium, high)
> Reaction time: 35ms
> Working frequency: One-level adjustable
> Size: 112x73x38mm
> Delay function: Three-stage delay adjustable (1st gear 0.7s)
Brand:
S4AItem NO.:

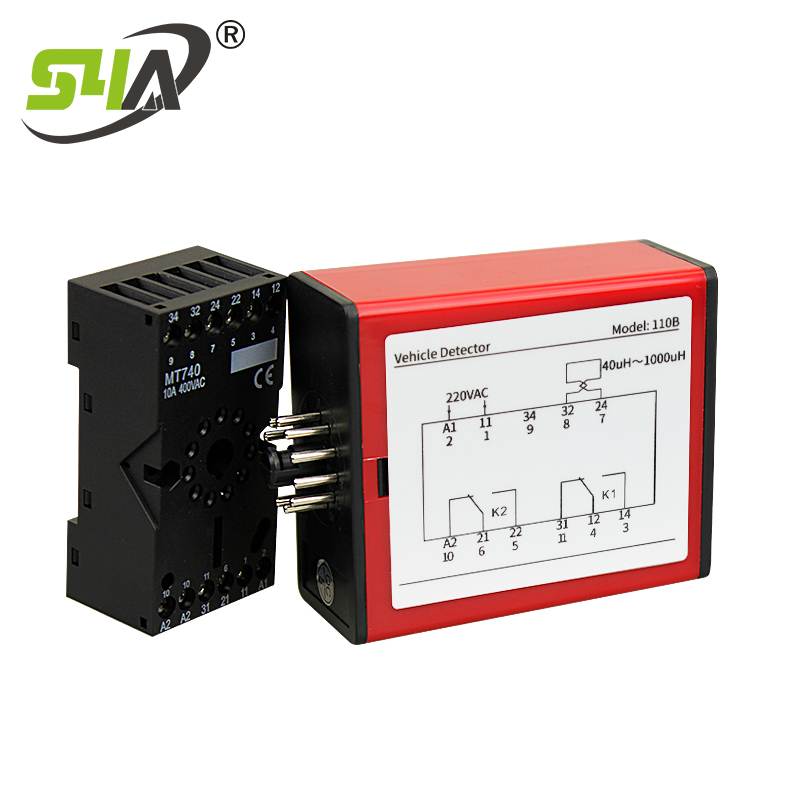

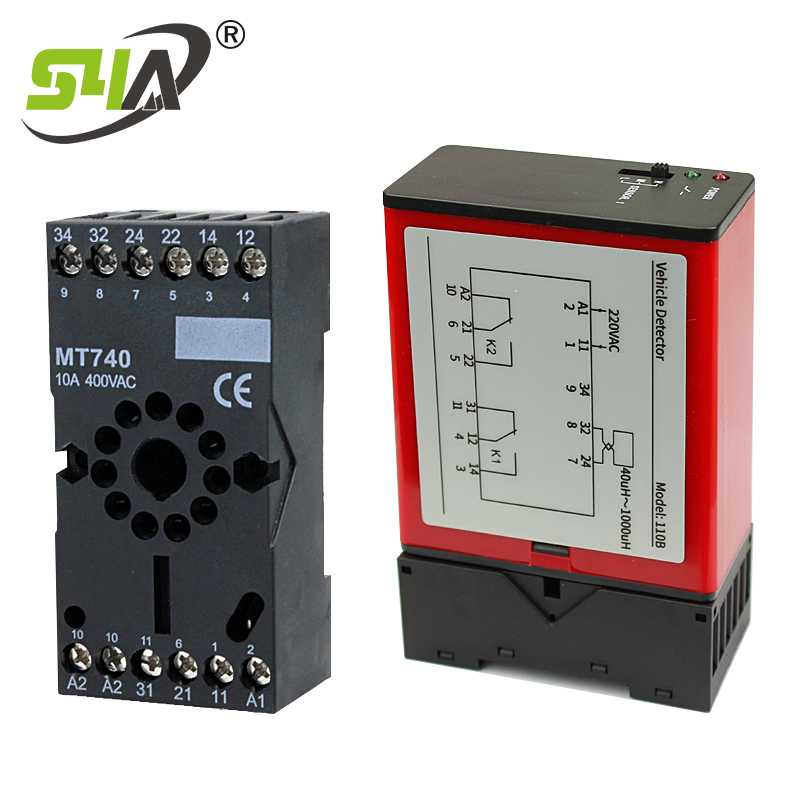

110BSingle-Way Vehicle Door Detector
Model No.: 110B
This product is an inductive coil vehicle detection Device, its working principle is that the metal parts of the vehicle will Change the inductance of the detection loop through the microcontroller An analysis is performed to determine if the vehicle exists. Mainly used. For controlling electric doors, quick doors, barriers, and Involving a field requiring the presence detection of a vehicle Together.
Feature of vehicle loop detector:
> Industrial-grade design, superior anti-interference ability, and stability.
> Adjustable Multi-level sensitivity to meet various needs.
> Support multiple output interfaces to adapt to different scenarios.
> Support loop coil self-diagnosis checking.
> Working with a boom barrier gate, it can realize gate automatically close after the vehicle passes.
> Support for environmental drift compensation.
Power supply | AC220V/50Hz 4.5W |
Sensitivity | 3 levels adjustable (low, medium, high) |
Reaction time | 35ms |
Working frequency | One level adjustable |
Maximum coil | 8Mx1M |
Size | 112x73x38mm |
Output method | Relay |
Probe lead | Within 10 meters |
Delay function | Three-stage delay adjustable (1st gear 0.7s) |
Single Channel Inductive Vehicle Car Park Barrier Loop Exit Safety Sensor Detector | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
110B | 50pcs | 8.5KG | 14.5KG | 58x27x26 cm |
S4A Datesheet_Single Way Vehicle Door Detector
