> Display: 2.4 inches
> Fingerprint Users: 1000
> Attendance Records: 100,000
> Communication: USB
> Dimension: 160*130*30mm
Brand:
S4AItem NO.:

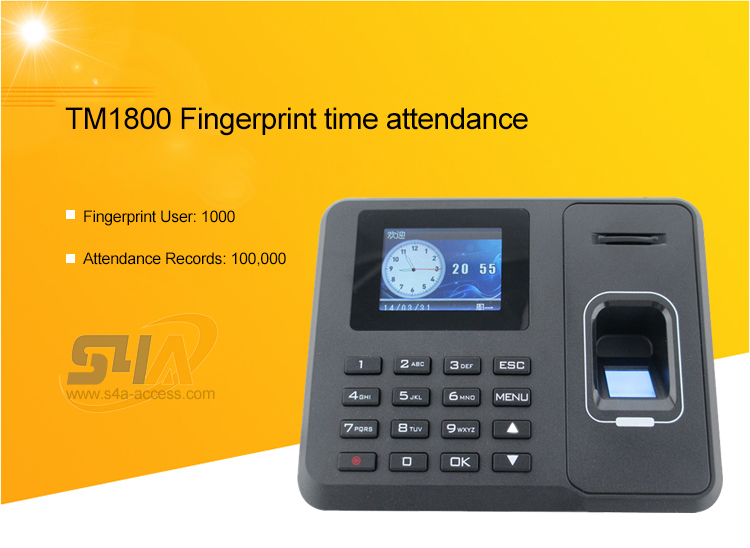

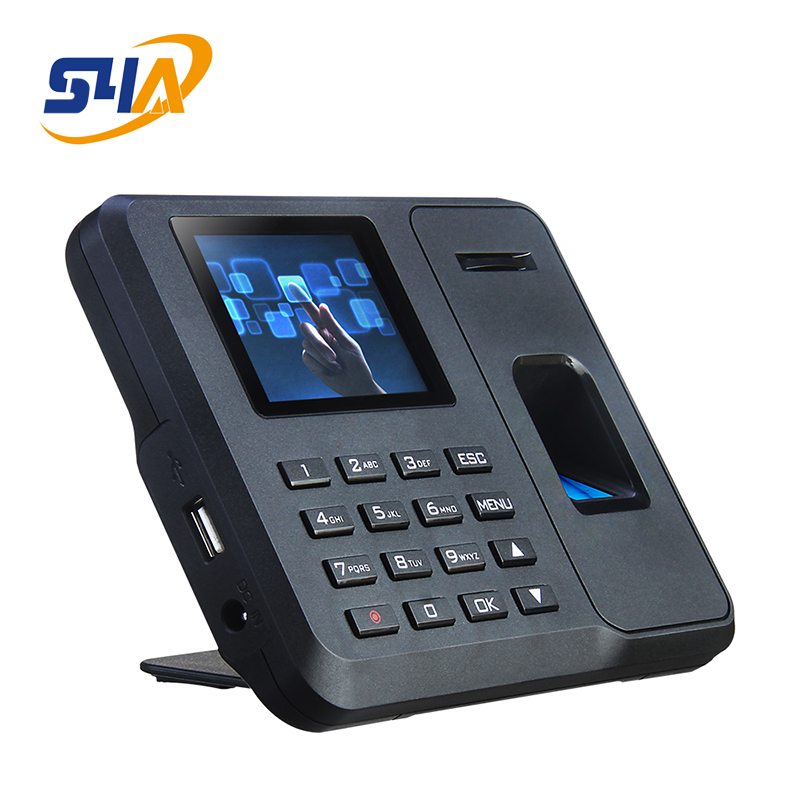

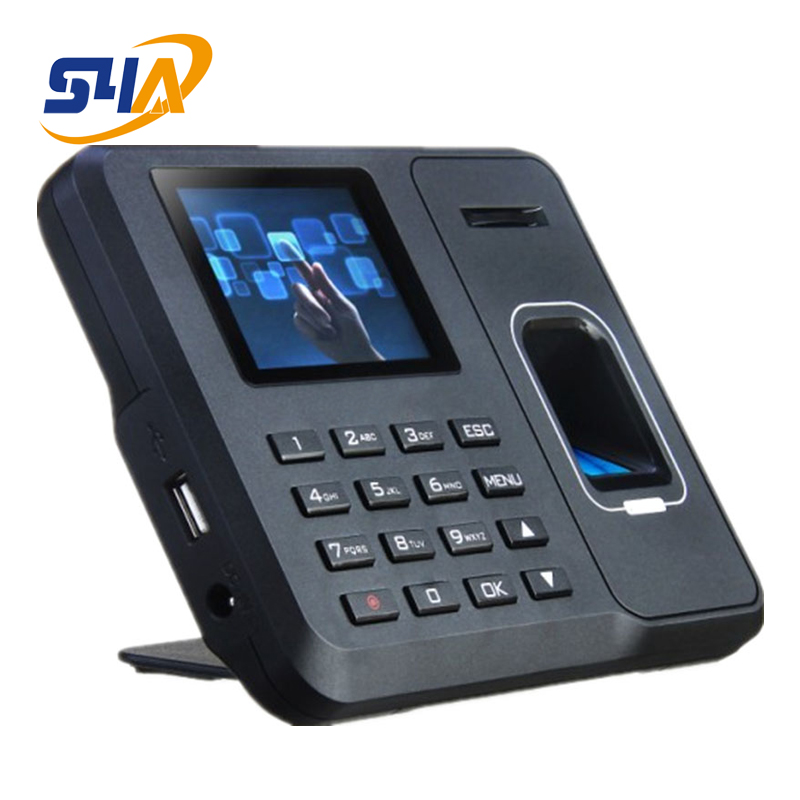

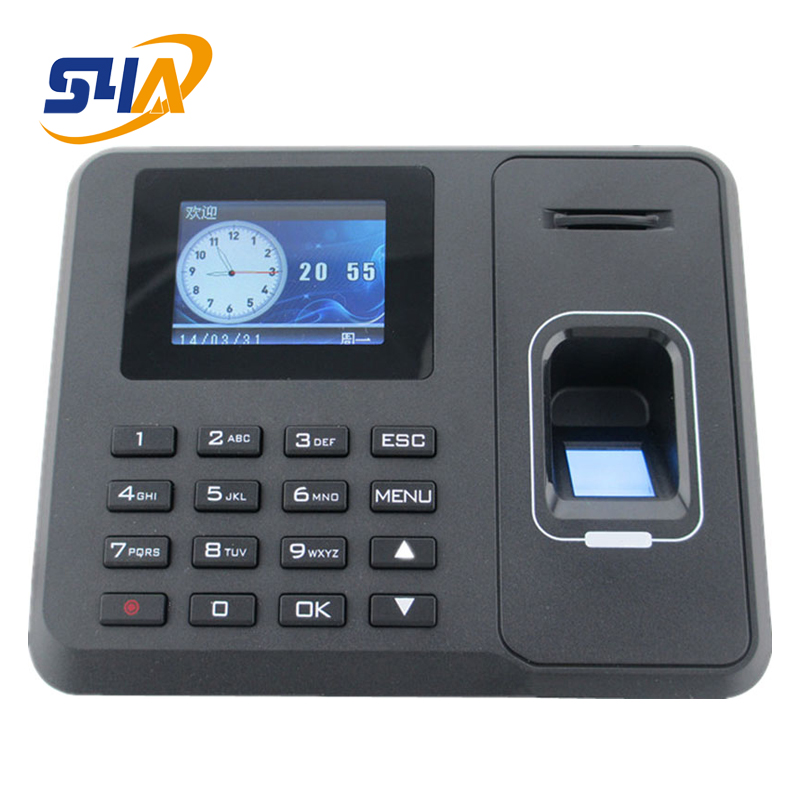

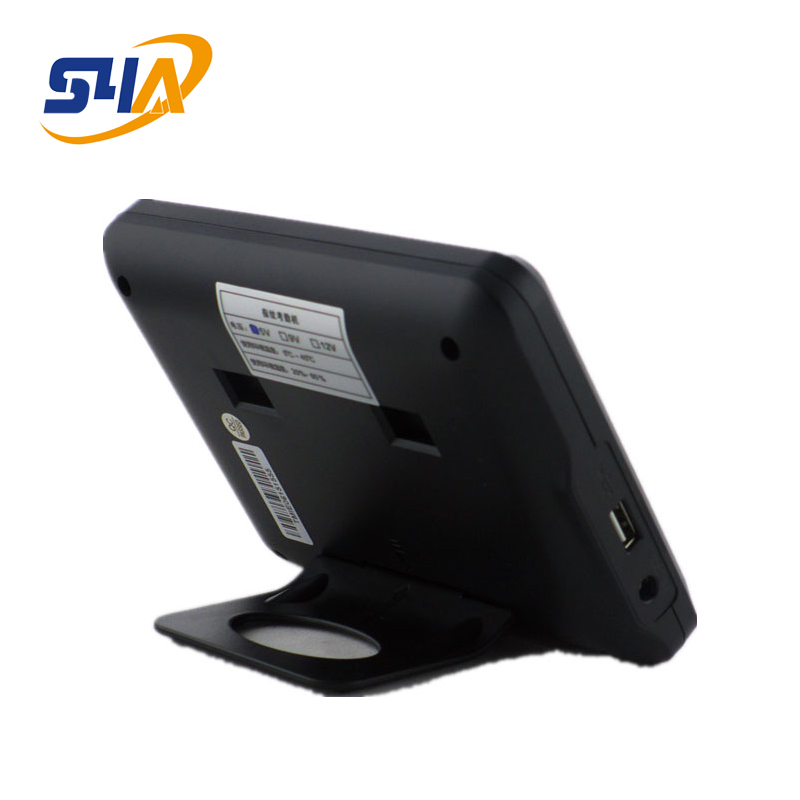

TM1800Fingerprint Time Attendance Access Control Integrated Machine
Model No: TM1800
Product advantages:
TM1800 voices the name and ID when put fingerprints, both Well-Hung and Desktop style, USB Pen driver downloads the reports from the device, is easy to use, and operation without software.
Product Features:
Attendance Shift Setting
> As Days, weeks, and Months to setting the Attendance
> Support work in&out, relay, overtime setting
> Support Holiday, and weekends, Leaving the setting
> Support Retroactive setting
Color LCD
> High-resolution ratio LCE shows employee name and fingerprint image.
Employee information register
> T9 input to register the employee name in the device
> USB pen driver to download or upload the employee details
USB Pen Driver stores data
> USB pen driver download or upload the exports in Excel, TXT File
> USB pen driver download or upload employee details for easy editing
> USB pen driver download upload attendance shift setting
Attendance exports
> Auto-generate exports in Excel TXT File
> Both Raw data and statistical data reports
Card | ID Optional |
Fingerprint Users | 1000 |
Password User | 1000 |
Attendance Records | 100,000 |
Display | 2.4 inches |
Operation | Offline |
Power Supply | DC5V 2A |

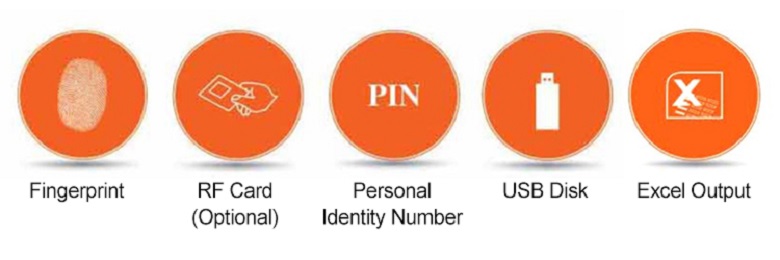

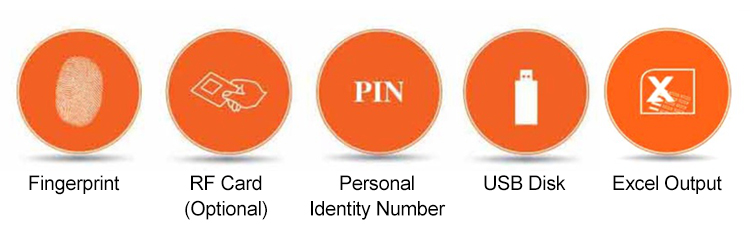

Authentication Methods | Fingerprint, Pincode, (ID Optional) |
Fingerprint Verification Mode | 1:1, 1:N |
Fingerprint Sensor | Optical Sensor |
Verification Speed | ≤0.6s |
False Rejection Rate | <0.01% |
False Acceptance Rate | <0.0001% |
Display Language | English, Arabic, Indonesian, German, Spanish, Thai, Persian |
Attendance Management | Yes (Built-in Automatic Reporting System) |
Interface | USB |
Attendance Record Check | Press the OK Button for Checking |
Reporting | Excel Report Output |
Operating Temperature | -10℃~60℃ |

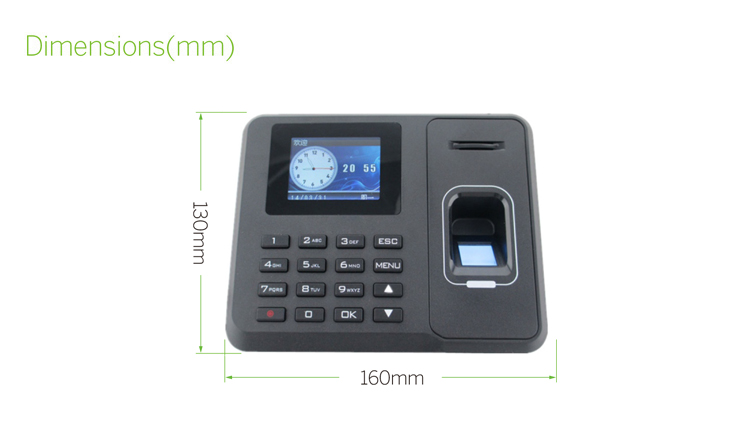

Dimension | 160*130*30mm |
S4A User Manual TM1800_Fingerprint Time Attendance Access Control Integrated Machine
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
