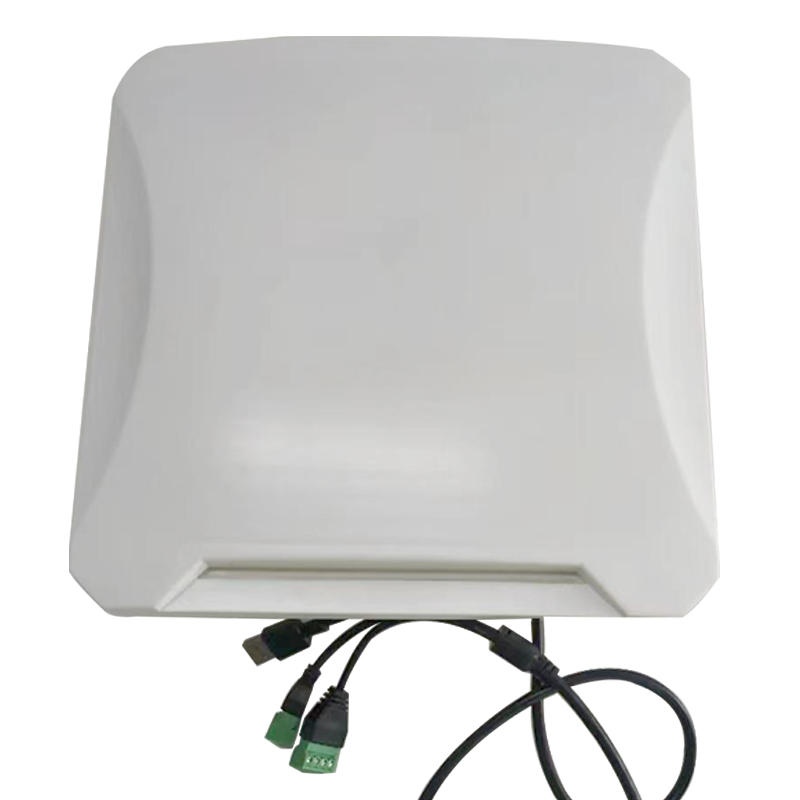

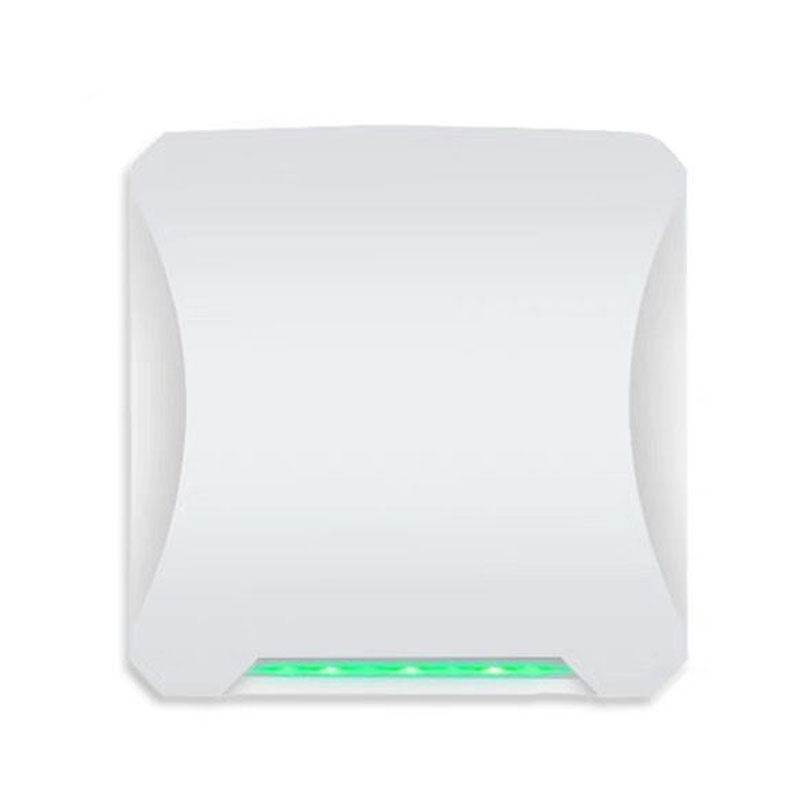

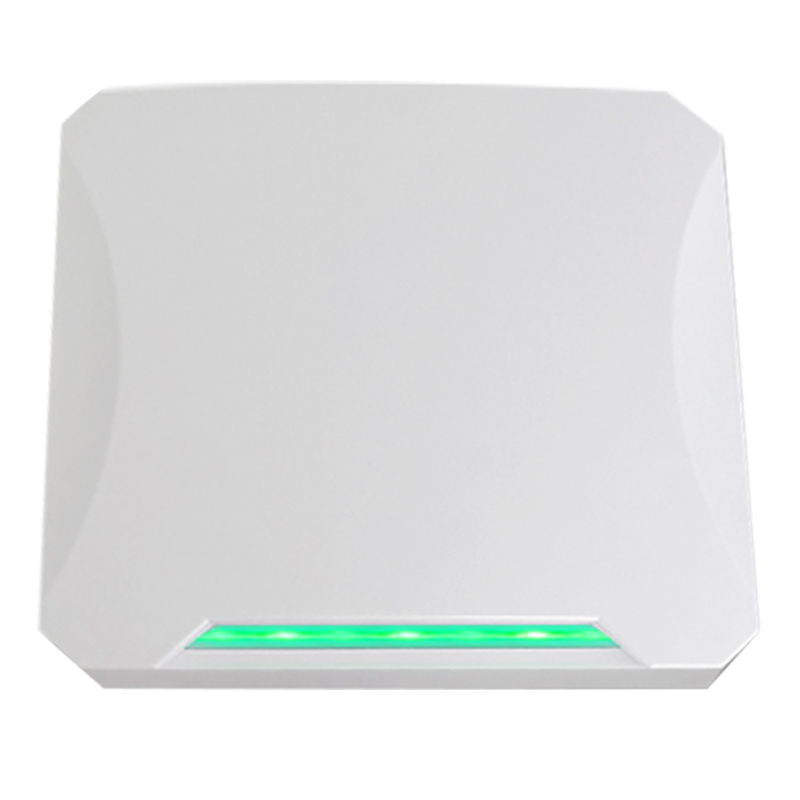

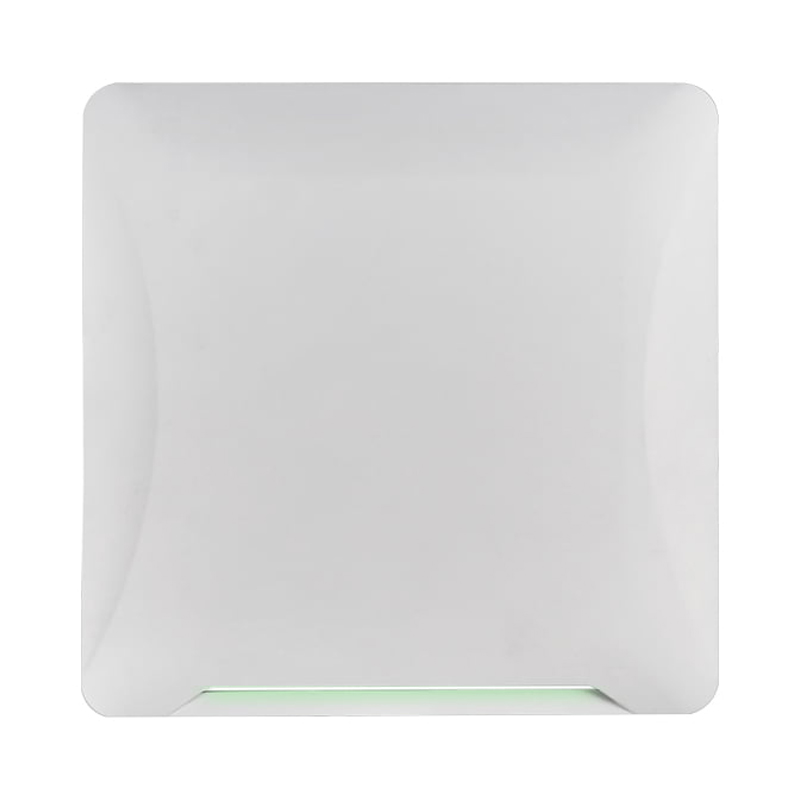

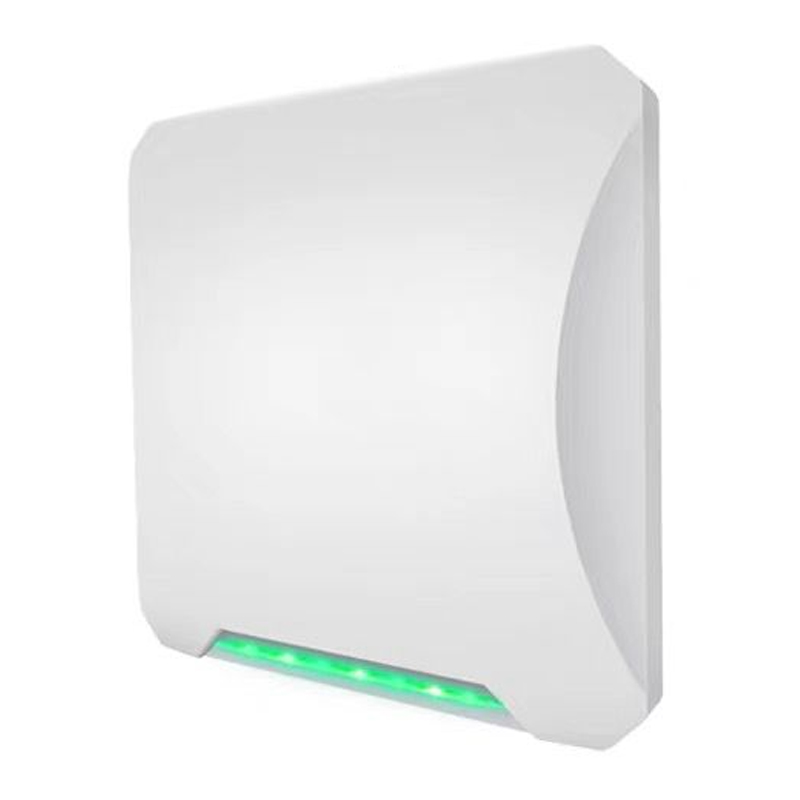

S4A UHF RFID Reader 15M Long Range 12dBi Antenna Integrated RFID Reader Writer with Wiegand RS485 for Parking

Operating frequency:National standard (920~925MHz)

American standard (902~928MHz)

European standard (865~ 868MHz)

Other multinational frequency standards (customized)

Brand:
S4A
Item NO.:
UHF-202415

Inquire Now

Specifications

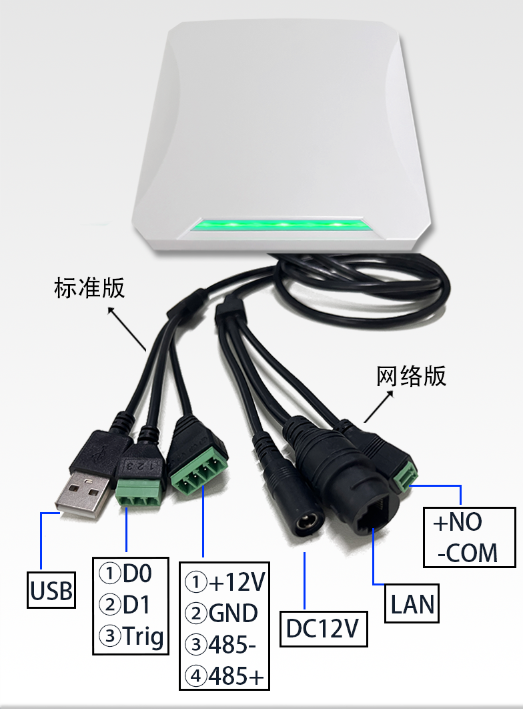

Wiring Diagram

15M–16M Extra Long Range: Achieves ultra-long distance hands-free vehicle identification, ideal for high-speed lanes and non-stop toll systems.

12dBi High-Gain Antenna: Equipped with a built-in 12dBi circular polarization antenna, ensuring strong signal penetration and a wide reading coverage.

All-in-One Integration: Combines the powerful reader and high-gain antenna into a single unit, saving installation space and hardware costs.

Multi-Protocol & Dual Frequency: Supports EPC Gen2 (ISO18000-6C) and ISO18000-6B; compatible with both US (902–928MHz) and EU (865–868MHz) standards.

Rich Interfaces & Free SDK: Features Wiegand 26/34, RS232, and RS485 outputs; Free SDK is provided for quick system integration.

IP65 Rugged Waterproof: Heavy-duty, weatherproof casing built to perform reliably in extreme outdoor environments.

System parameters	ARM7+E710 module.
Operating frequency	National standard (920~925MHz)
	American standard (902~928MHz)
	European standard (865~ 868MHz)
	Other multinational frequency standards (customized)
Recognition distance	>25 meters
Group reading performance	>500 tags
Tag protocol	Support IS018000-6C (EPC GEN2) protocol electronic tags.
Frequency hopping mode	Frequency hopping (FHSS) or fixed frequency, can be set by software;
Operating mode	Automatic mode, trigger mode, interactive mode, etc.
RF power	0-33dBm (power software adjustable)
Antenna parameters	8dBi circular polarization antenna (built-in)
Supported interface	Standard RS485, Wiegand26, Wiegand34, optional RJ45, GPRS, etc.
Operating voltage	+12V
Recognition prompt	Buzzer or LED flashing
Power consumption	<5W
Operating temperature	-20℃ ～ +70℃ (customization is required if out of range)
Operating humidity	20％～ 95％ (no condensation)
Storage temperature	-40℃ ～ +125℃
Dimensions	180x180x60mm/ 265x185x70mm
Net weight	550G
Gross weight	1100G
Secondary development	Provide dynamic link library (DLL) and demonstration software source code to support secondary development.
Notes	The recognition distance and group reading performance depend on the tag performance and specific application scenarios, and can be customized as required
