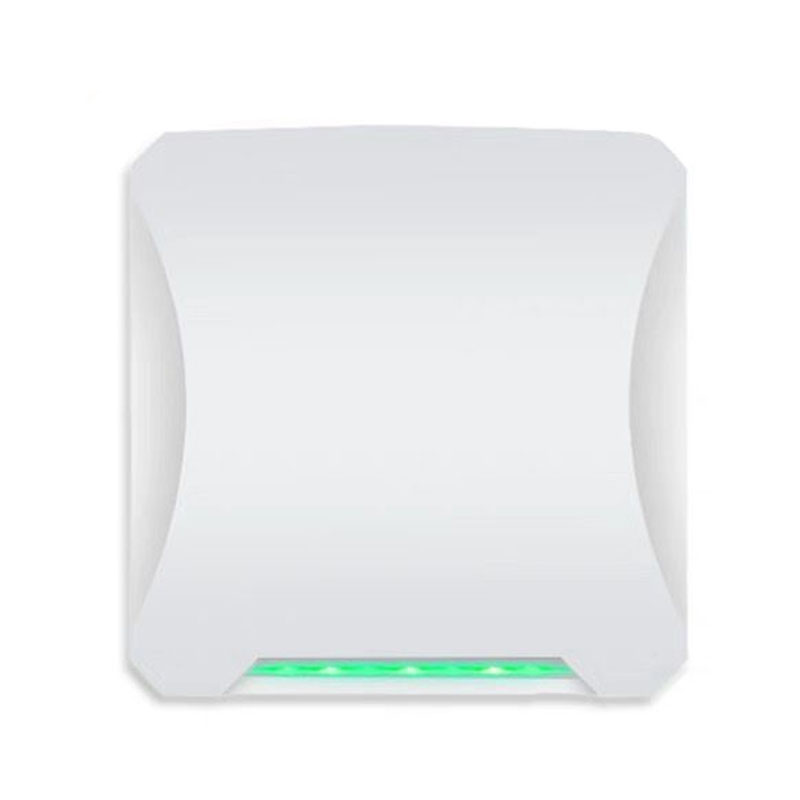

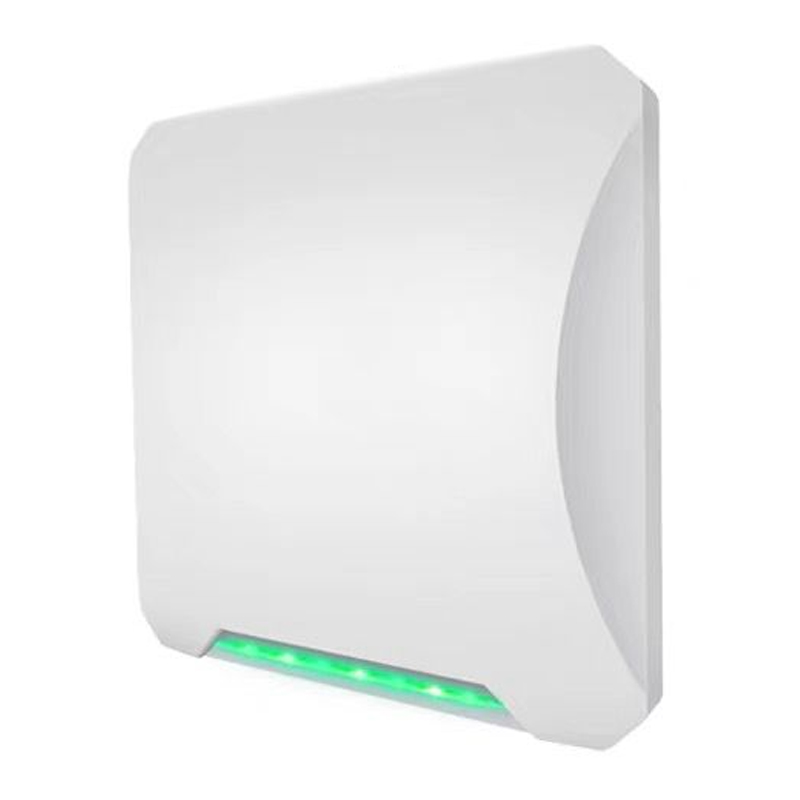

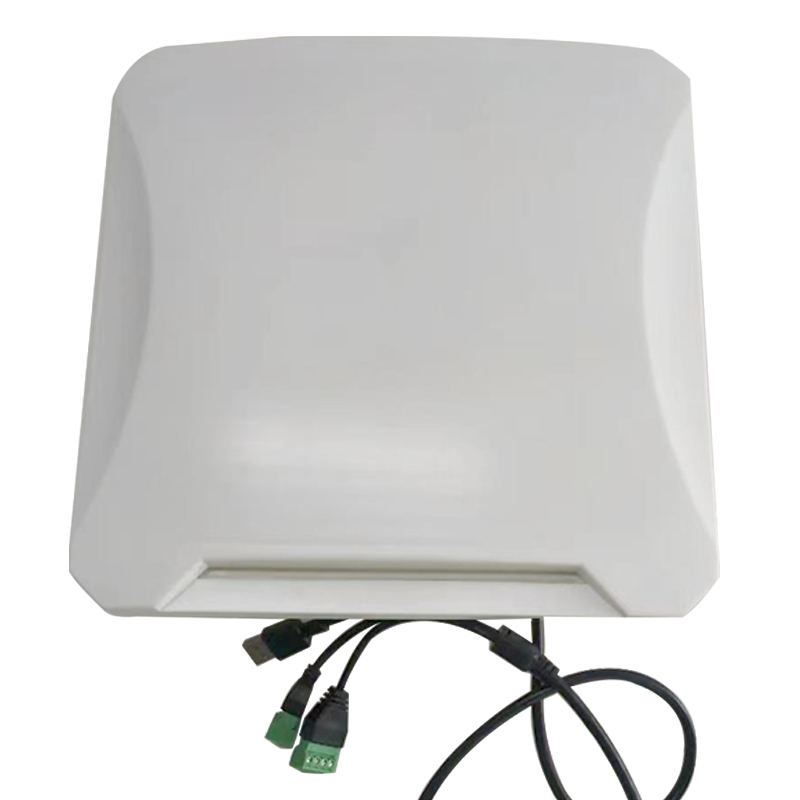

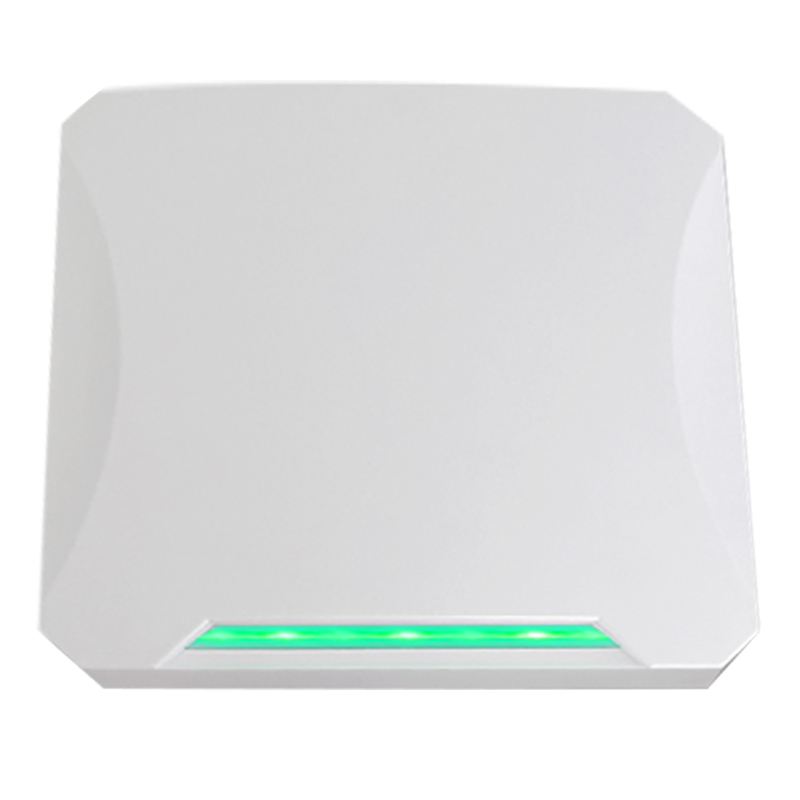

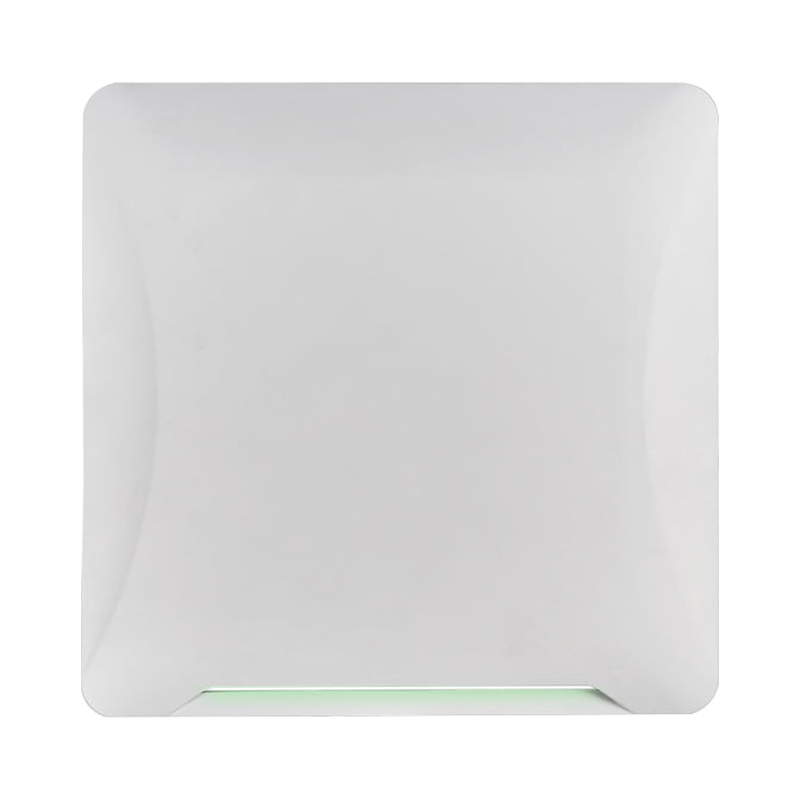

S4A UHF RFID Integrated Reader 6M Long Range Outdoor IP65 RFID Card Reader for Parking Access Control & Logistics

Working frequency

National standard (920~925MHz)

American standard (902~928MHz)

European standard (865~868MHz)

Other multinational frequency standards (customiz

Identification distance

>6 meters

Group reading performance

>50 tags

Tag protocol

Support ISO18000-6C (EPC GEN2) protocol electronic tags

Frequency hopping mode

Frequency hopping spectrum (FHSS) or fixed frequency, can be set by software;

Working mode

Automatic mode, trigger mode, interactive mode, etc.

RF power

0-30dBm (power software adjustable)

Antenna parameters

8dBi circular polarization antenna (built-in)

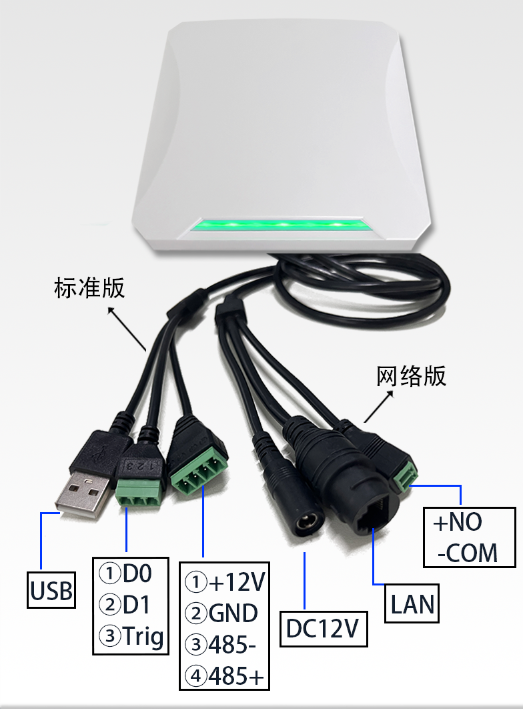

Supported interface

Standard RS232 or USB, RS485, Wiegand26, Wiegand34, optional RJ45,WIFI, GPRS, etc.

Working voltage

+12V

Identification prompt

Buzzer or LED flash

Power consumption

<1W

Working temperature

-20°C~+70°C (customization is required if out of range)

Working humidity

20%~ 95% (no condensation)

Storage temperature

-40°C~+125°C

Dimensions

180x180x60mm/265x185x70mm

Net weight

550G

Gross weight

1100G

Secondary development

Provide dynamic link library (DLL) and demonstration software source code to support secondary development

Note

The recognition distance and group reading performance depend on the tag performance and specific application scenarios, and can be customized as require
