> Material: ABS+Stainless steel

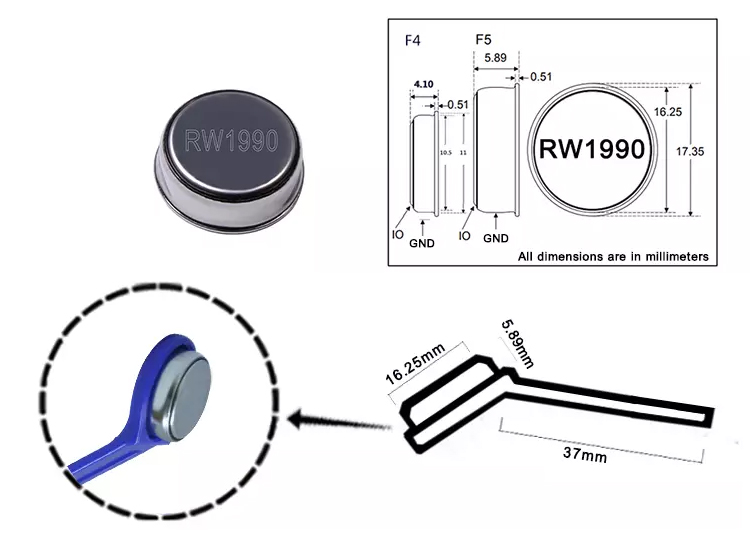

> Size: Diameter 16.25*5.89mm
> Thickness: 5.89mm
> Chip avaible: RW1990 / TM1990A-F5
> Function: Read and write (RW1990); Only read (TM1990)
Brand:
S4AItem NO.:
RW1990Readable and Writable Dallas iButton RW1990 Tag
Model No.: RW1990, TM1990A-F5
Material | ABS+Stainless steel |
Size | Diameter 16.25mm*5.89mm |
Thickness | 5.89mm |
Chip avaible | RW1990 / TM1990A-F5 |
Function | Read and write (RW1990); Only read (TM1990) |
Crafts | Engrave number or texts |
Read time | 350,000 times |
Memory | 64 bit |
Package | 100pcs/box, 5000pcs/carton, 25kg/carton |
Feature of iButton Key Touch Memory | Can Be Read in Less Than 5ms |
Operating Range: 2.8V to 6.0V, -40°C to +85°C | |
Application | Access Control, Inventory Control, Tool Management, Work-in-Progress Tracking |
Life Time | 10years |
What is an iButton?
An iButton is a computer chip enclosed in a 16mm thick, durable, weather-resistant stainless steel can. Because of their small size and extreme durability, iButtons can travel virtually anywhere.
How does an iButton communicate?
The iButton is a slave device and requires a master to initiate communication with it. A master can be a PC or a microprocessor. With the master constantly polling the iButtons, communication to iButtons can be started by a simple touch to a 1-Wire interface called a Blue Dot Receptor. Every iButton has a unique 64-bit serial number, which gives it a unique 1-Wire network address.
What are iButtons being used for?
They are attached to key fobs, rings, watches, or other personal items for applications such as access control to buildings and computers. Additionally, iButtons are commonly mounted to storage crates, trucks, and other equipment for asset management. Furthermore, iButtons are mounted to refrigeration units, outdoor environments, and even to animals for various data-logging tasks.
Readable and Writable Dallas iButton RW1990 Tag | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
RW1990 | 5000 PCS | 18.9 KG | 23.8 KG | 22x44x46cm |
S4A Datesheet_Readable and Writable Dallas iButton RW1990 Tag
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
