>USB input voltage:DC5V/2A(USB cannot be used with dry battery, only rechargeable battery)
>Battery:DC3V LRO3*2
>Standby current:≤75uA
>Alarming current:≤60mA
Brand:
S4AItem NO.:

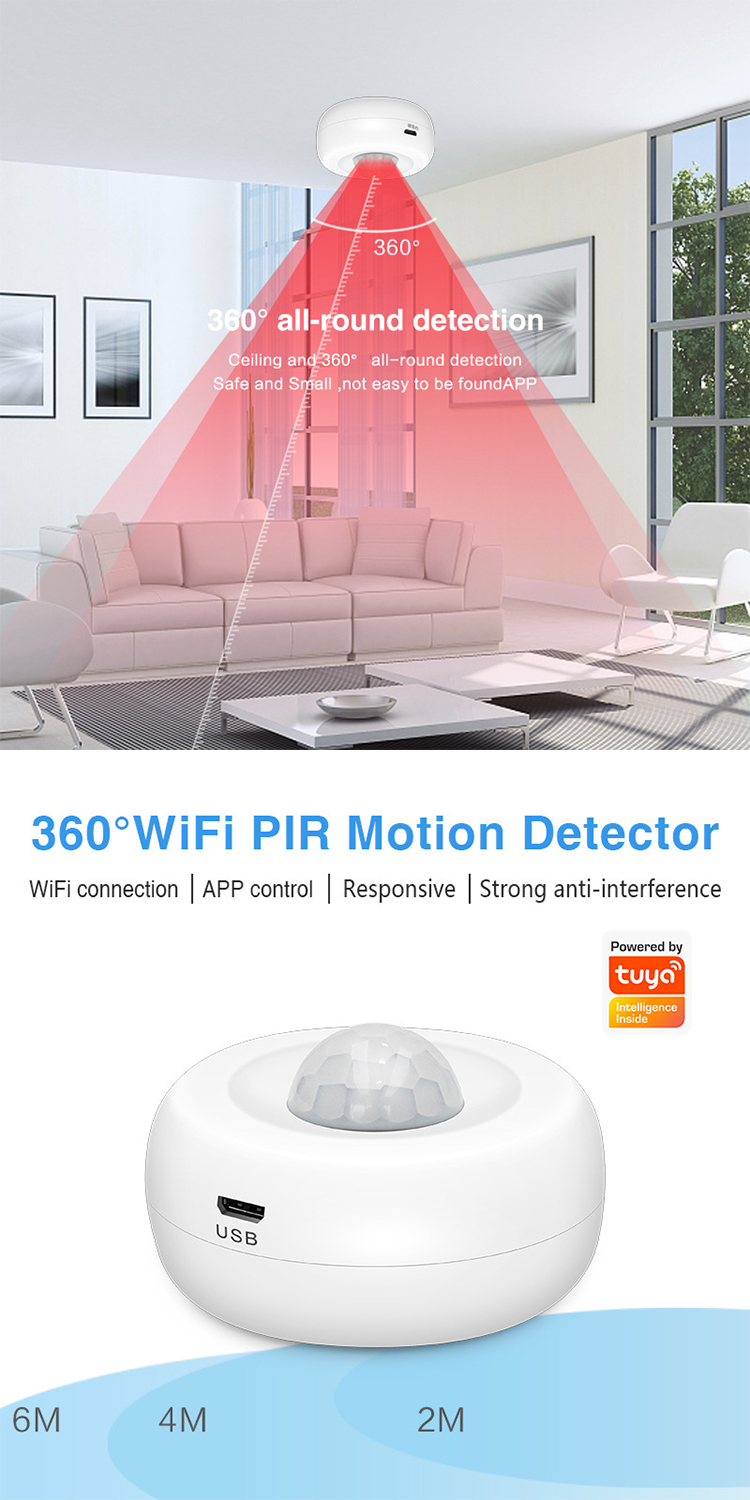

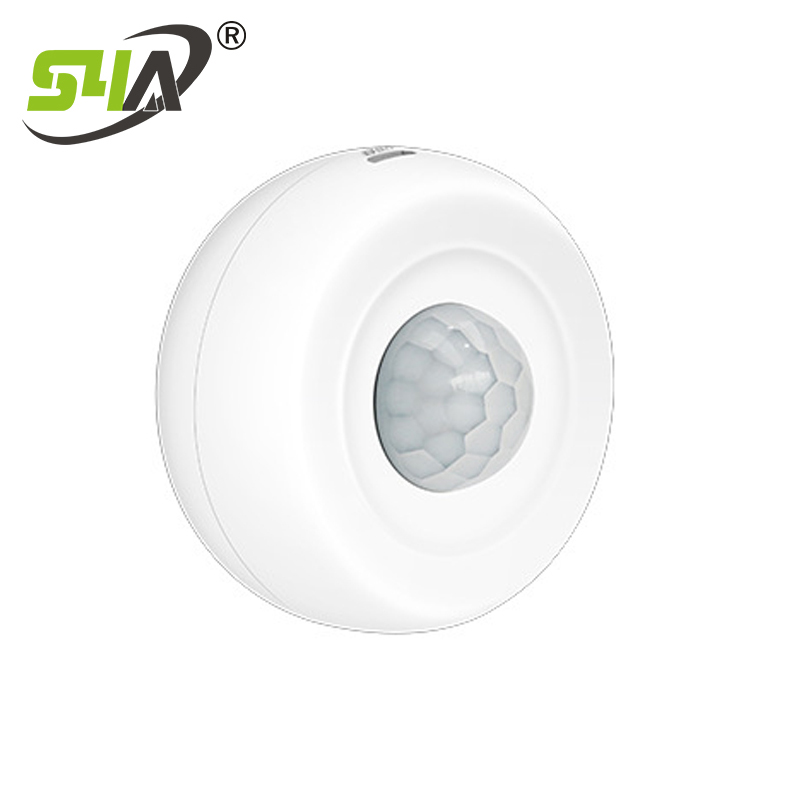

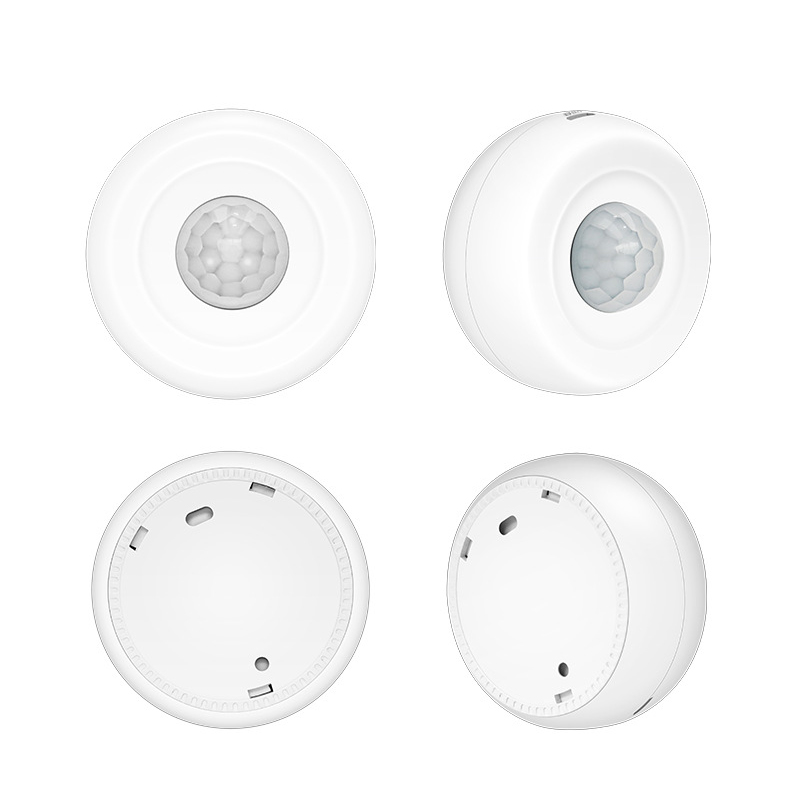

Tuya-PIR360degree WiFi PIR Motion Detector
Model No.: Tuya-PIR
What is WiFi PIR Motion Detector?
Wireless motion detectors are wireless security devices that respond to the presence of motion.
Whenever motion is detected, the device will offer a predetermined response depending on the needs of the end user.
Wireless motion detectors are also great for home automation.
What is the difference between PIR and motion sensors?
PIR or Passive Infrared motion sensors are designed to reliably detect people, large pets & other large warm moving objects. ...
True Detect™ is more than just motion sensing but also includes thermal heat sensing.
The True Detect PIR sensor is triggered when a security camera senses heat whether from people or cars.
USB input voltage | DC5V/2A(USB cannot be used with dry battery, only rechargeable battery) |
Battery | DC3V LRO3*2 |
Standby current | ≤75uA |
Alarming current | ≤60mA |
Low-voltage notification | ≤2.2V |
WiFi | 802.11b/g/n |
Detection distance | 6M |
Detection angle | 360degree -installation |
installation method | ceiling /wall |
Working temperature | -10-50℃ |
Working humidity | ≤95%RH |
Unit weight: | 0.05 kg |
Product volume: | 60* 60*52mm |
S4A_Datesheet_360degree WiFi PIR Motion Detector
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
