>Very low power consumption,standby current less than 80mA
>Backlight keys
>Wiegand output, Wg26 / WG34 card number format
>Built-in buzzer
>Can connect doorbell
Brand:
S4AItem NO.:

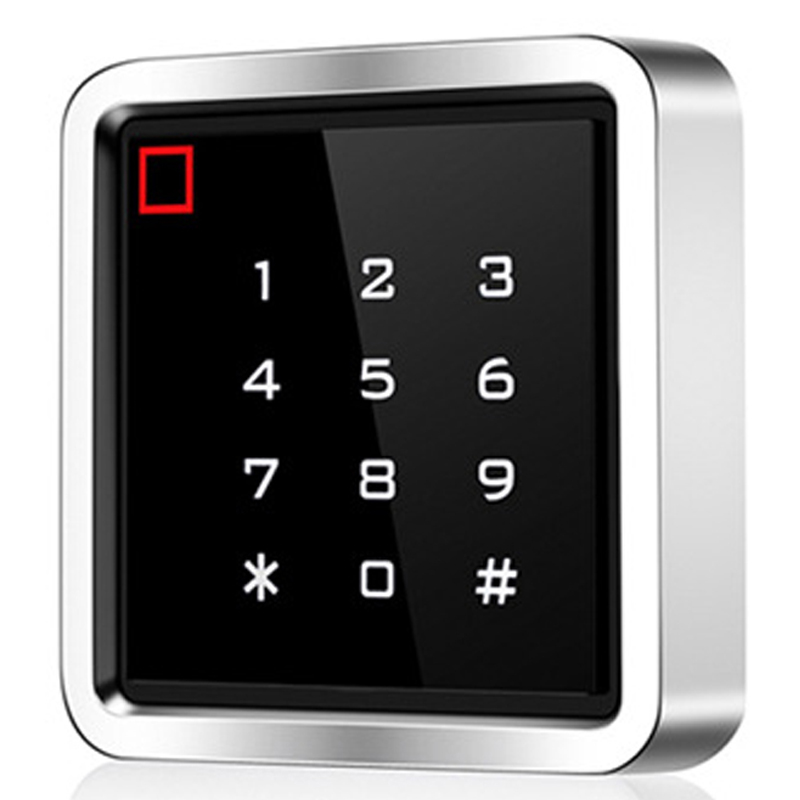

RT8Rfid touch-screen Access Control Reader with pincode
Model No.: RT8
Feature:
Very low power consumption,standby current less than 80mA
Backlight keys
Wiegand output, Wg26 / WG34 card number format
Built-in buzzer
Can connect doorbell
Product Parameter | Parameter Description |
S4A Model | RT8 |
Product Name | Metal & IP68 Waterproof Pincode Card Reader |
Card type | EM/Mifare |
Operating Voltage | 9-16V DC |
Working voltage | DC12V |
Static electricity | ≤30mA |
Waterproof | Conforms to IP68 |
Reading Distance | 3-6 cm |
Ambient temperature | -45～60℃ |
Humidity | 10%～90% |
Wiegand Interface | WG26/34 |

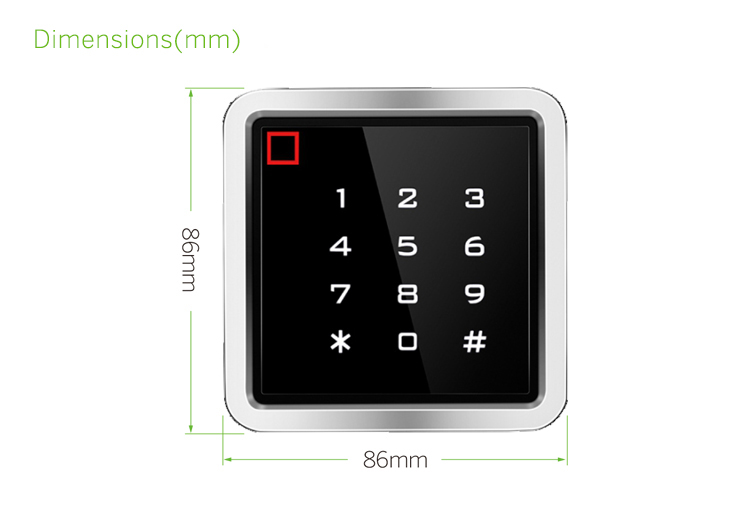

Dimension | 86*86*20mm |
Unit Weight | 0.4KG |
Standard Package | 54PCS |
Carton Weight | 22.6KG |

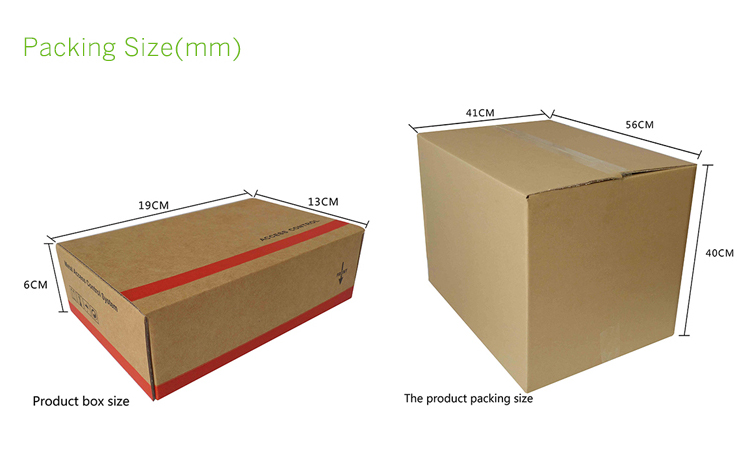

Carton Size | 56*40*41cm |

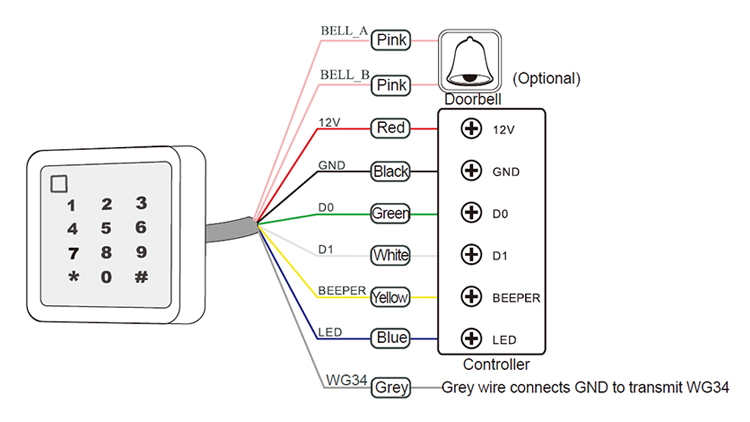

| Wire No. | Function | Color | Description |
| 1 | BELL-A | Pink | Doorbell button one end |
| 2 | BELL-B | Pink | Doorbell button to another end |
| 3 | LED | Blue | Connect controller LED |
| 4 | Beeper | Yellow | Connect controller beeper |
| 5 | D0 | Green | WG output line D0 |
| 6 | D1 | White | WG output line D1 |
| 7 | +12V | Red | Power supply +12V |
| 8 | GND | Black | Power supply -12V |
| 9 | W34 | Gray | Grey wire connects GND to transmit Wiegand 34 |
