>Very low power consumption,standby current less than 80mA
>Backlight keys
>Wiegand output, Wg26 / WG34 card number format
>Built-in buzzer
>Can connect doorbell
Brand:
S4AItem NO.:

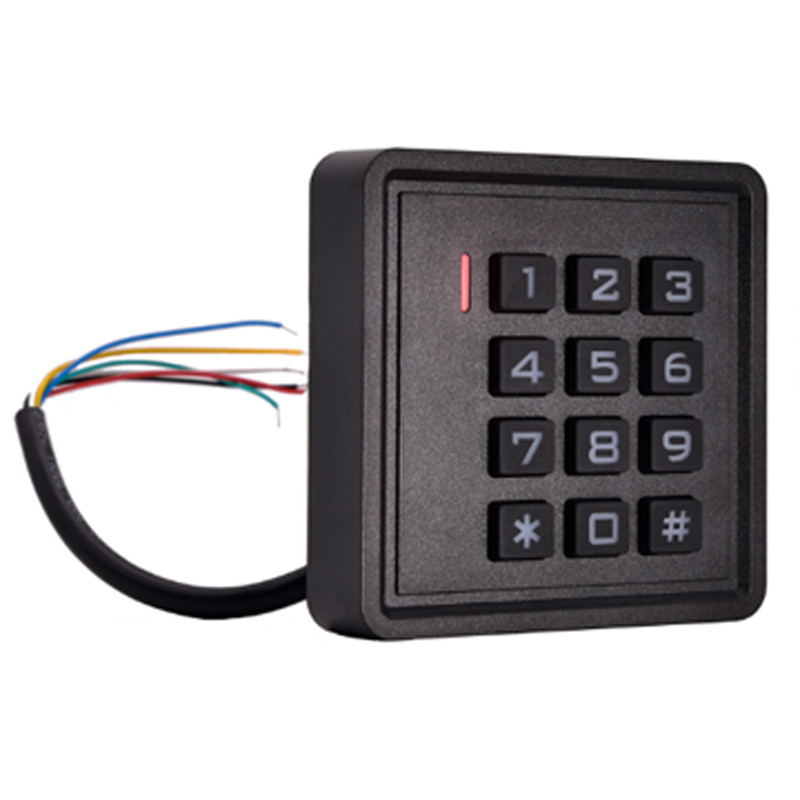

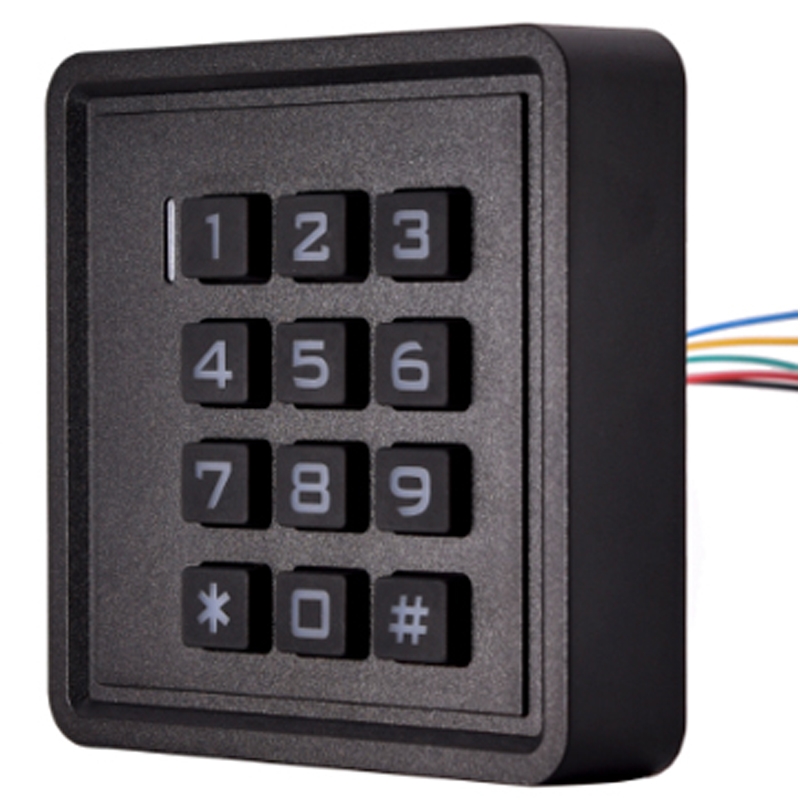

R6Password RFID Card Reader for Door Access Control
Model No.: R6
Feature:
Very low power consumption,standby current less than 80mA
Backlight keys
Wiegand output, Wg26 / WG34 card number format
Built-in buzzer
Can connect doorbell
Product Parameter | Parameter Description |
S4A Model | R6 |
Product Name | ABS & IP68 Waterproof Pincode Card Reader |
Card type | EM/Mifare |
Operating Voltage | 9-16V DC |
Working voltage | DC12V |
Static electricity | ≤30mA |
Waterproof | Conforms to IP68 |
Reading Distance | 3-6 cm |
Ambient temperature | -45～60℃ |
Humidity | 10%～90% |
Wiegand Interface | WG26/34 |
Dimension | 86*86*20mm |
Unit Weight | 0.4KG |
Standard Package | 54PCS |
Carton Weight | 22.6KG |
Carton Size | 56*40*41cm |

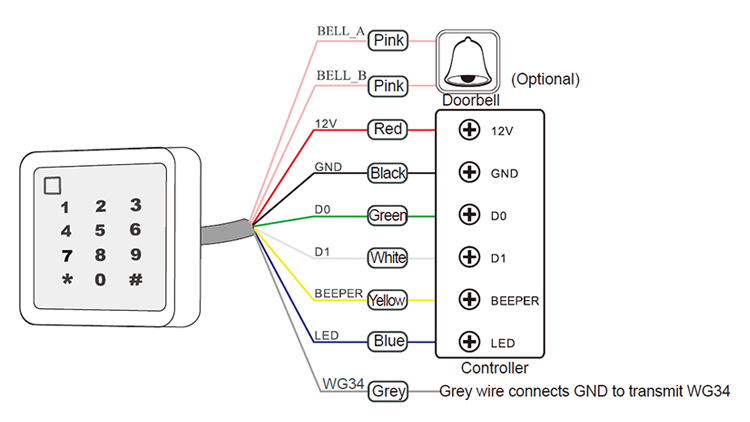

| Wire No. | Function | Color | Description |
| 1 | BELL-A | Pink | Doorbell button one end |
| 2 | BELL-B | Pink | Doorbell button to another end |
| 3 | LED | Blue | Connect controller LED |
| 4 | Beeper | Yellow | Connect controller beeper |
| 5 | D0 | Green | WG output line D0 |
| 6 | D1 | White | WG output line D1 |
| 7 | +12V | Red | Power supply +12V |
| 8 | GND | Black | Power supply -12V |
| 9 | W34 | Gray | Grey wire connects GND to transmit Wiegand 34 |
S4A_Datesheet_Pincode Access Control Card Reader
> Card type: 125KHz or 13.56MHz Card> PCD-87EM: 125KHz (WG26 output)> PCD-87Mifare: 13.56MHz (WG34 output)
> Card type: 125KHz or 13.56MHz Card> PCD-103EM: 125KHz (WG26 output)> PCD-103Mifare: 13.56MHz (WG34 output)
>Very low power consumption,standby current less than 80mA>Backlight keys>Wiegand output, Wg26 / WG34 card number format>Built-in buzzer>Can connect doorbell
>Dimensions: 67.7x96.3x29.9mm >Power supply: 4 AAA >Operating voltage: 3V
NO/NC/COM;115Lx70Wx14H(mm)
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Operate by infrared remote> 10,000 card users and 300 fingerprint users> Relay NO/NC/COM output
> Finger Capacity: 2000> Card Capacity: 1000> LCD: 2.4 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record

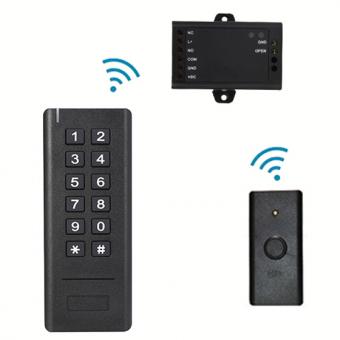

No Need wires from Access Controller to Keypad to Exit Push button> User Capacity: 500users support RFID+Pincode> Communication Frequency: 2.4G> Mini Controller: DC12V> Wireless Keypad: 3units of AAA batteries> Wireless Exit Button: 2023 Lithium battery> Communication distance 15M Maximum
