2 Line Electric Bolt Lock with Low Temperature and Timer

> Face Plate: 205Lx35WX40H(mm)

> Bolt: 16mm(Throw) x 16mm(Diameter)

> Voltage: DC12V

  • Brand:

    S4A
  • Item NO.:

    BL-C2001B
  • Specifications

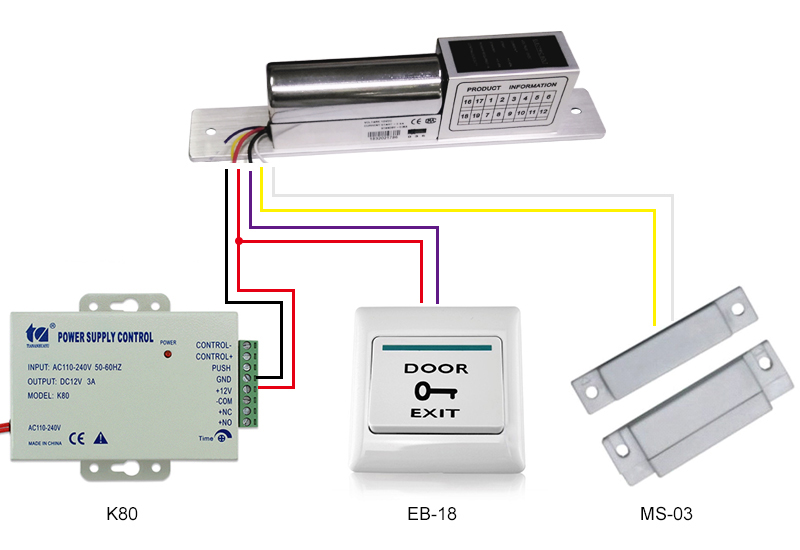

  • Wiring Diagram

2 Line Electric Bolt Lock with Low Temperature and Timer

Model No.: BL-C2001B


I. Fail-Safe: the power to lock

Face Plate

205Lx35WX40H(mm)

Strike plate

90Lx25Wx2H(mm)

Bolt

16mm(Throw) x 16mm(Diameter)


II Bolt lock Suitable For Wooden Door, Metal Door, Glass Door

Fail-Safe

Power to lock

Voltage

DC12V

Start Current

960mA

Standby Current

130mA

Face place material

High Aluminum, Garrulous Line

Finished


III.BL-C2001B bolt lock with delay timer

Suitable for

all types of 180° door

Operating temp

-10~+25℃(14-131F)

Operating Humidity

0~90%(non-condensing)

Special Designed

Tested to 500000 cycles

Weight

0.9kg

Standard Packing

30pcs

2 Line Electric Bolt Lock with Low Temperature and Timer

Electric bolt lock-2
