RFID Door Access Control RFID ID Card Reader

> Card type: 125KHz or 13.56MHz Card

> RF007EM: 125KHz (WG26 output)

> RF007Mifare: 13.56MHz (WG34 output)

  • Brand:

    S4A
  • Item NO.:

    RF007
  • Specifications

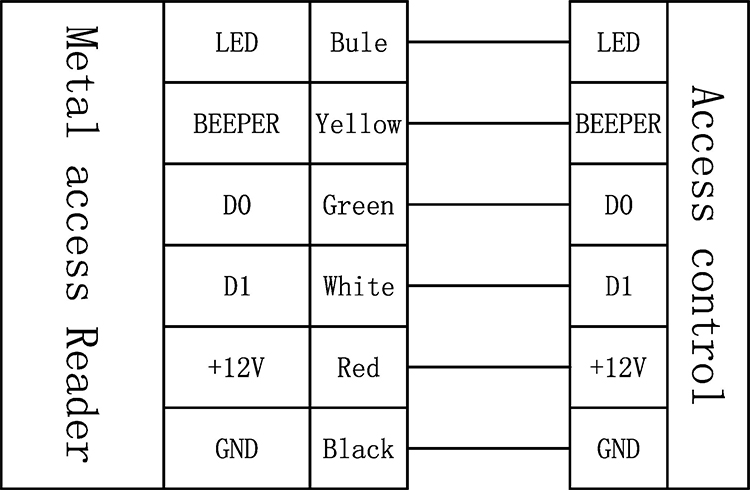

  • Wiring Diagram

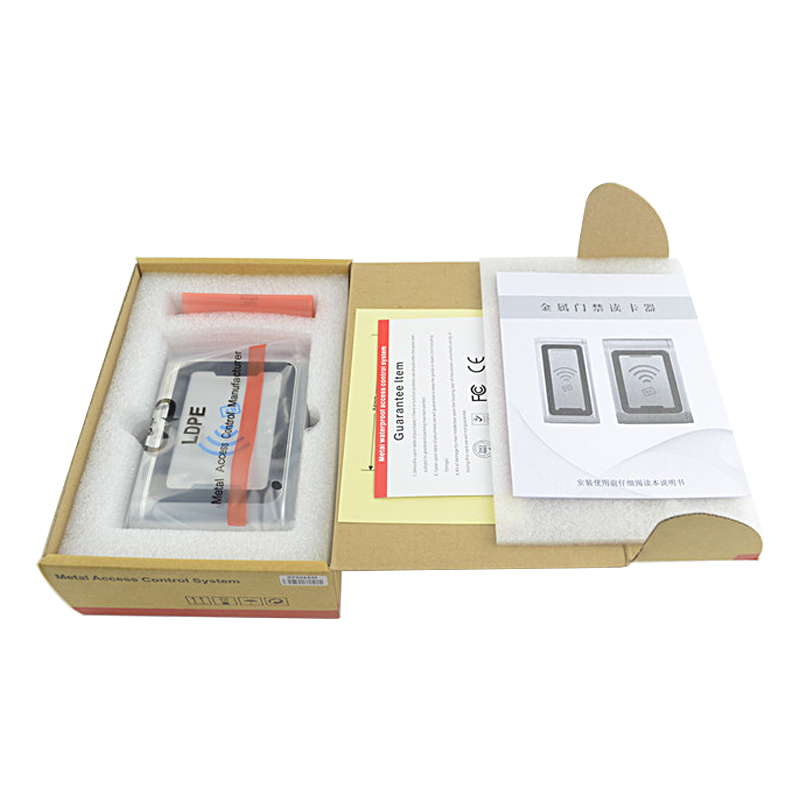

  • Package

RFID Door Access Control RFID ID Card Reader

Model No.: RF007 EM, MF


Introduction:

RF005E: 125KHz Proximity card reader

RF005M: 13.56MHz Mifare card reader


Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection


Model

RF007EM and RF007MF

Read Range

RF007EM: Up to 10CM, RF007MF:Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Colour

Black

Material

ABS+PC with texture

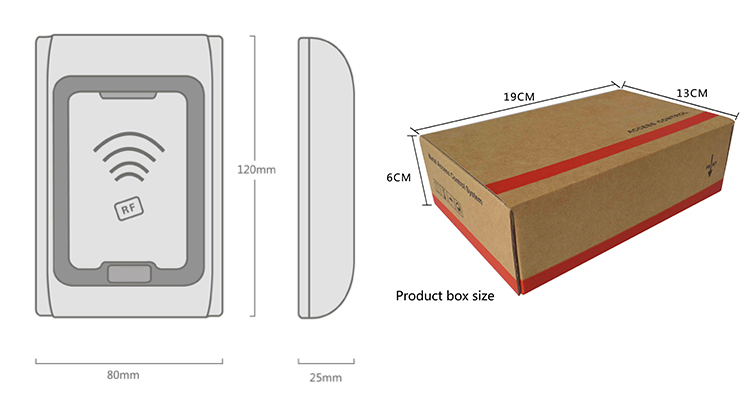

Dimension(W x H x T)mm

120X80X25mm

Weight

50g

Index of Protection

IP65

RFID Access Card readerRFID Access Card reader

RFID Access Card reader

RFID Access Card reader
