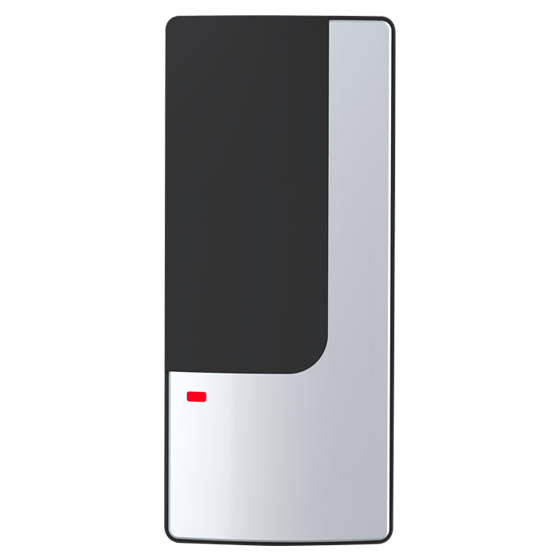

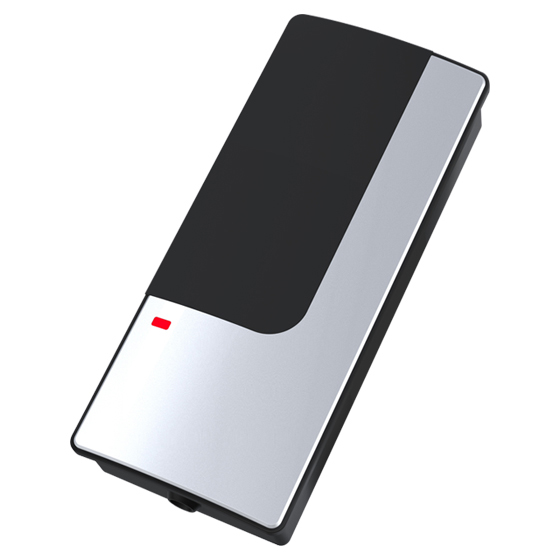

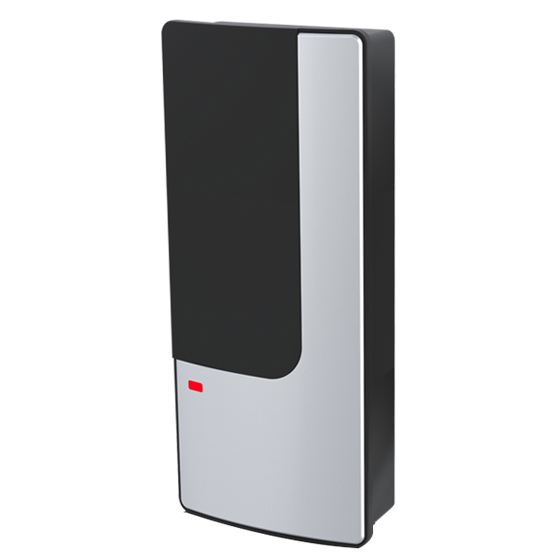

IP66 Waterproof Smart Wiegand Access Control Card Reader for the goverment project

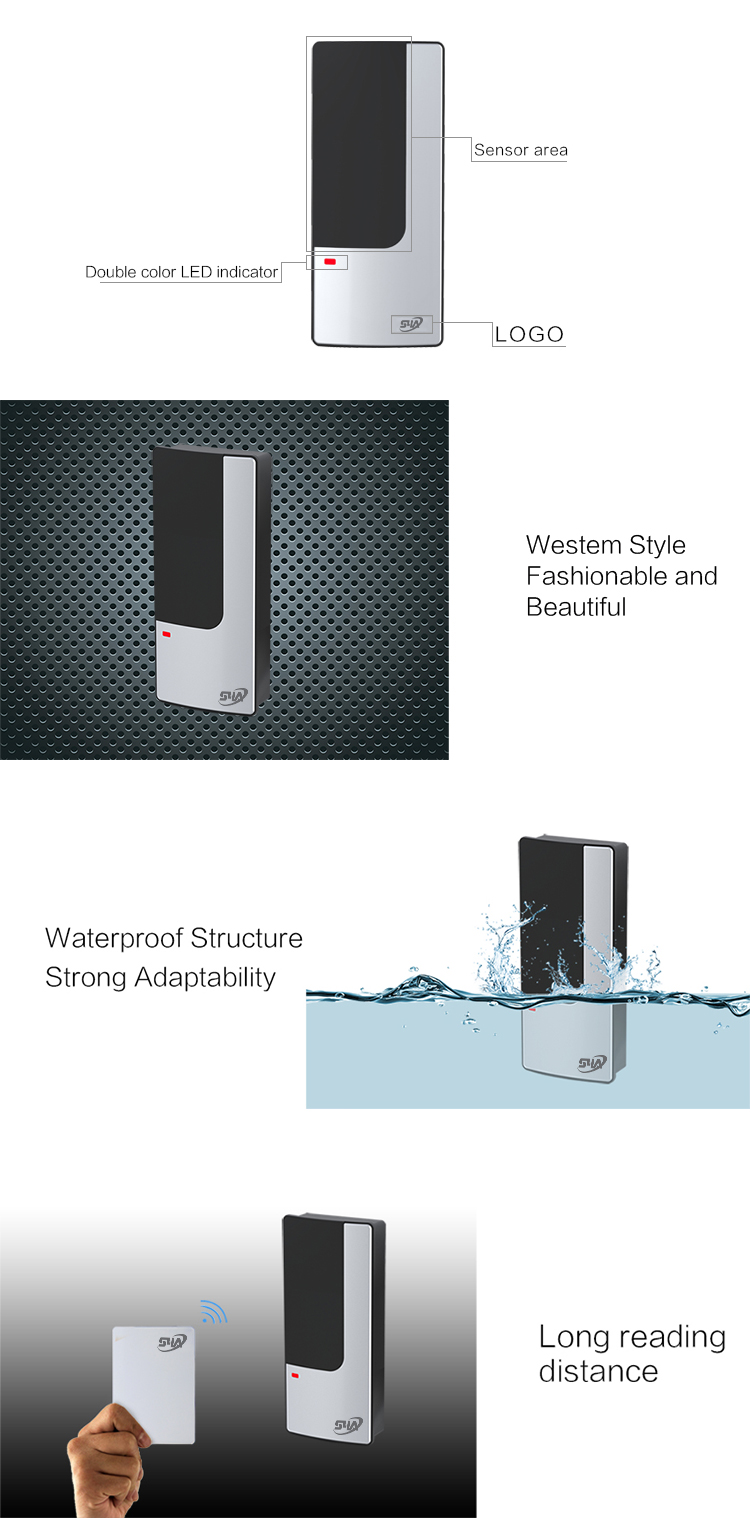

1: Metal shell, anti-vandal

2: Voltage: 9-12V DC

  • Brand:

    S4A
  • Item NO.:

    U-M002
  • Specifications
  • Wiring Diagram
  • Download

Item Name: IP66 Waterproof Smart Wiegand Access Control Card Reader for the goverment project

Model No.: U-M002


Features

> Very low power consumption, standby current less than 30mA

> WG 26 output

> Fast Search speed: time between reading card and opening the door is less than 0.1S

Specifications

Operating Voltage

9-12V DC

Card type

EM/Mifare

Reading Distance

3-6 cm

Quiescent Current

≤30mA

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Dimension

110*48*20 MM

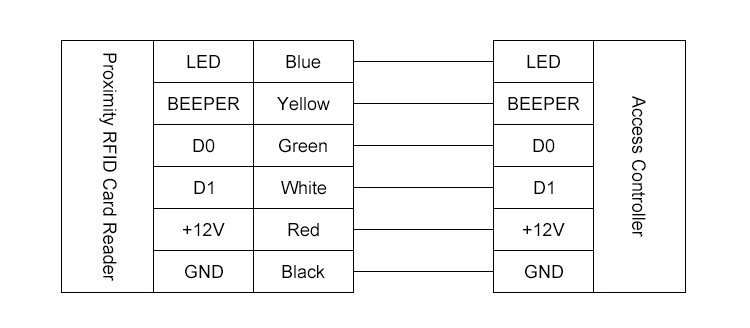

Access Control Card Reader

Wire No.

Function

Color

Description

1

LED

Blue

Connect controller LED

2

Beeper

Yellow

Connect controller beeper

3

D0

Green

WG output line D0

4

D1

White

WG output line D1

5

+12V

Red

Power supply +12V

6

GND

Black

Power supply -12V


Access Control Card Reader
