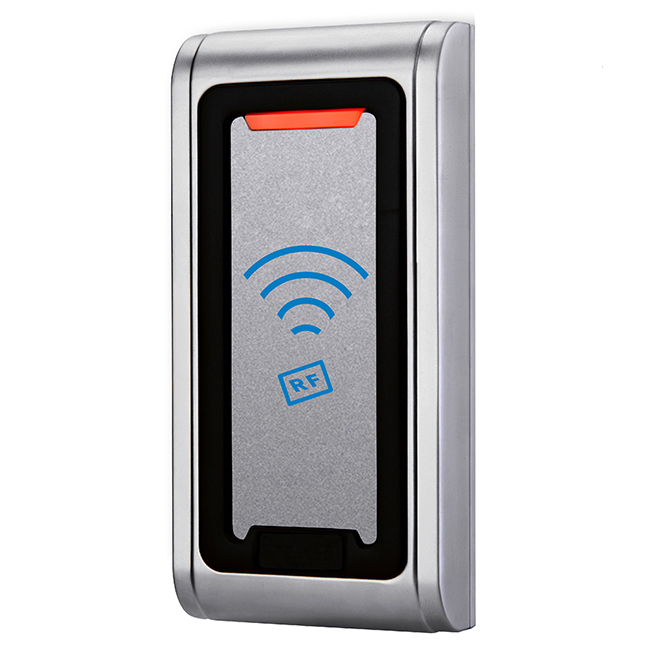

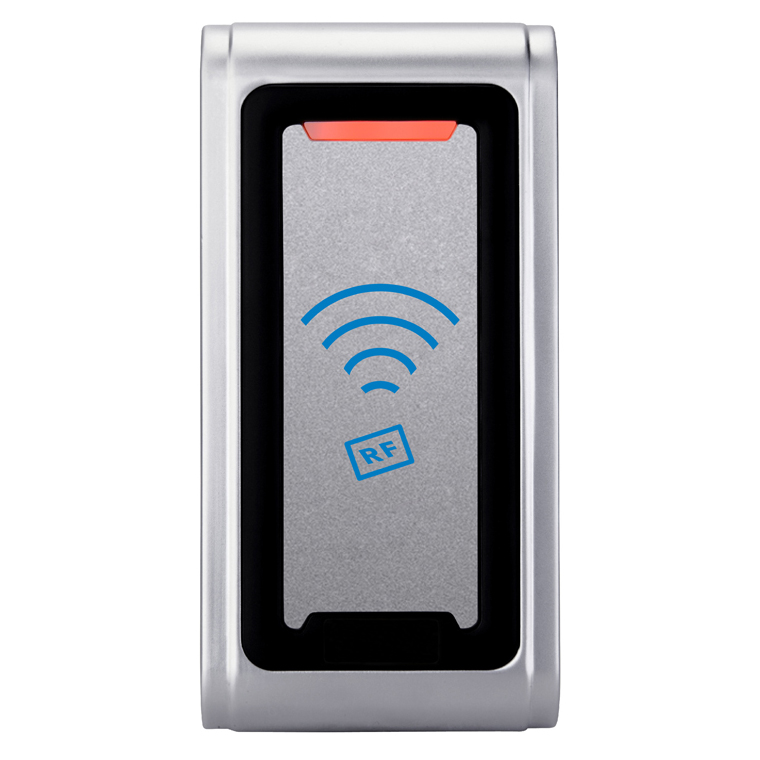

Proximity Card Access Control System RFID Card Reader

> Card type: 125KHz or 13.56MHz Card

> RF006EM: 125KHz (WG26 output)

> RF006Mifare: 13.56MHz (WG34 output)

  • Brand:

    S4A
  • Item NO.:

    RF006
  • Specifications

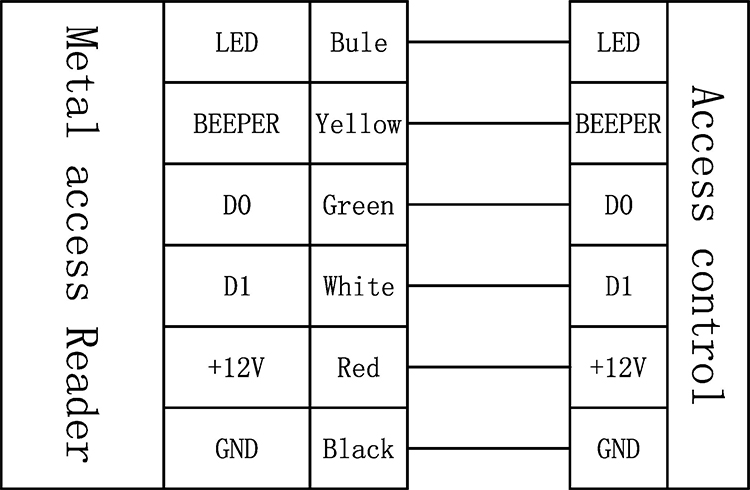

  • Wiring Diagram
  • Package
  • Download

Proximity card Access Control System RFID Card Reader

Model No.: RF006 EM, MF


Introduction:

RF006E: 125KHz Proximity card reader

RF006M: 13.56MHz Mifare card reader


Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection


Model

RF006EM and RF006MF

Read Range

RF006EM: Up to 10CM, RF006MF:Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

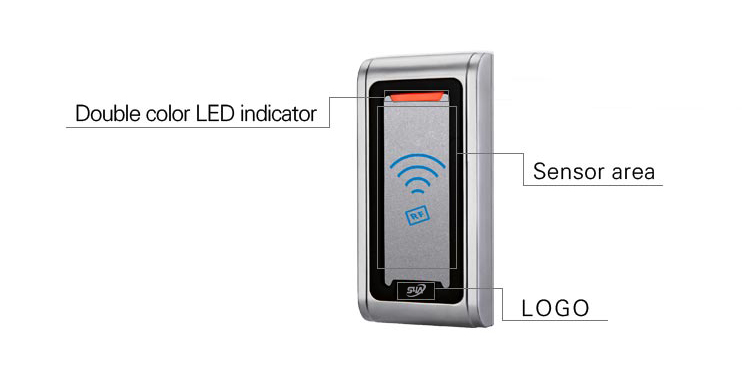

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Colour

Silver

Material

ABS+PC with texture

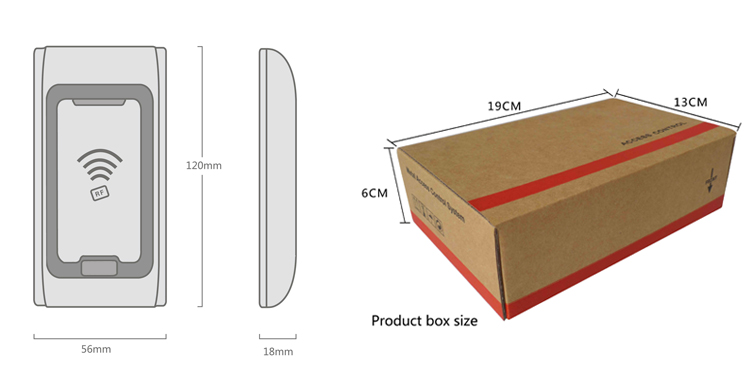

Dimension(W x H x T)mm

120X56X18mm

Weight

50g

Index of Protection

IP65

RFID Card ReaderRFID Card ReaderRFID Card ReaderRFID Card Reader

RFID Card Reader

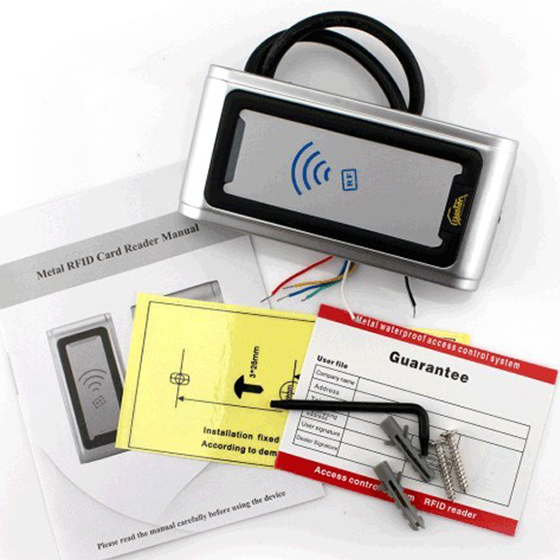

Proximity Card Access Control System RFID Card Reader

Model No.

Quantity/Carton

Gross Weight

Carton Size

RF006EM

54pcs

25KG

55.5x39.9x40cm

RF006MF

54pcs

25KG

RFID Card Reader

S4A Datesheet_Proximity Card Access Control System RFID Card Reader

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Metal Waterproof RFID Reader
Metal RFID Card Reader Metal Waterproof RFID Reader

> Material: Zinc alloy case> Size: 105x50x20mm> WG26 input and output> Door opening timeless than 0.1S

Access Control Card Reader
IP66 Waterproof Smart Wiegand Access Control Card Reader for the Goverment Project

> Card type: EM or MF Card> Metal shell, anti-vandal> Voltage: 9-12V DC

RFID Wiegand Card Reader
RFID Wiegand Card Reader for Door Controller

> Card type: 125KHz or 13.56MHz Card> PCD-86EM: 125KHz (WG26 output)> PCD-86Mifare: 13.56MHz (WG34 output)

 RFID ID Card Reader
RFID Door Access Control RFID ID Card Reader

> Card type: 125KHz or 13.56MHz Card> RF007EM: 125KHz (WG26 output)> RF007Mifare: 13.56MHz (WG34 output)

 iButton Card Reade
iButton EM 125KHz iButton Card Reader RFID Access Card Reader

> Operating frequency: 125KHz or 13.56 MHz> Reader protocol: Wiegand-26, Wiegand-34> Dimensions: 25 x 22mm

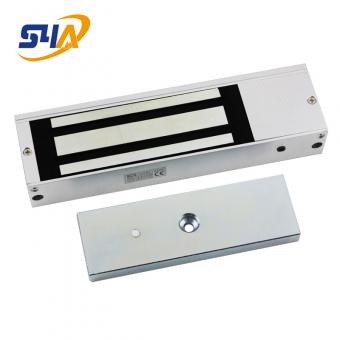

Waterproof electromagnetic lock kit
