QR Code Scanning Module USB and UART Serial Port Barcode Scanner Identification Module Bar Code Reader for Access Control

>Swipe speed:<200 milliseconds

>Wiegand output: 26 bits/34 bits

>Software version: V7.107 or above

>Hardware driver: V8.92 or above

>Output power: DC12v 10OomA (power supply lock and card reader)


  • Brand:

    S4A
  • Item NO.:

    QR-86D
  • Specifications
  • Wiring Diagram
  • Package
  • Download

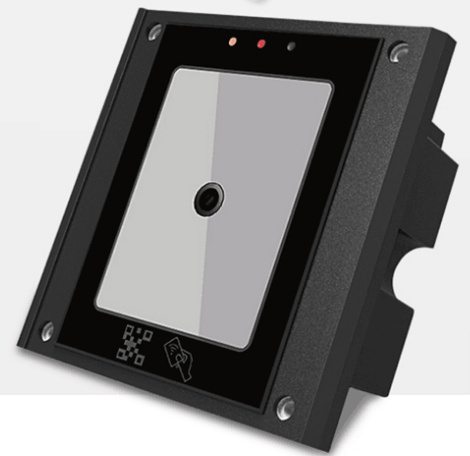

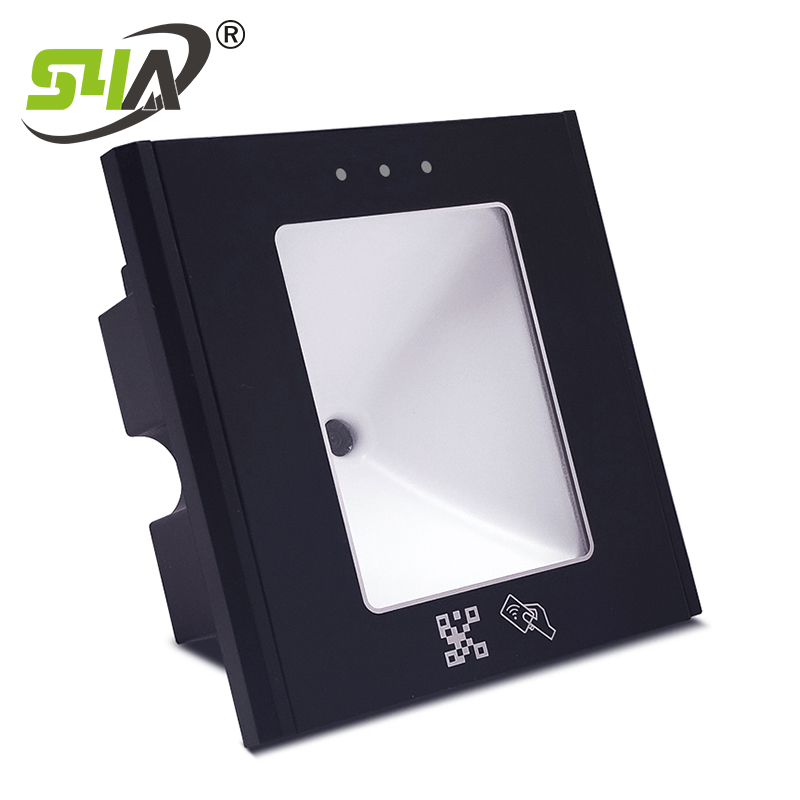

Access controller Dynamic QR code reader with Wiegand output

Model No.: QR-86D


Functions and features

1. Wiegand signal QR code, simple wiring, and long-distance (up to 100 meters);

2. The mobile phone number is used as the card number, which is more convenient to set;

3. The WeChat applet generates a new dynamic QR code every 1 minute;

4. A screenshot of the QR code can be shared with visitors via WeChat and QQ with one click;

5. The shared QR code is valid for a short time;

6. The two-dimensional code opening permission can be flexibly set through the access control software: which phones can be opened and which doors can be opened during which time periods;

7. There will be records and inquiries when opening the door with the QR code!

What is meant by a dynamic QR code?

A dynamic QR code provides the ability to change the destination address to which the QR code redirects. With dynamic QR codes, reprinting the code is not necessary after changing the address. Unlike dynamic QR codes, static QR codes point to a fixed address.

Volume

86*86*42mm

Material

PC material

Reading window

tempered glass

System interface

Wiegand, RS485, RS232

Decoding support

QR, a one-dimensional code

Working voltage

Support 4-15V wide voltage input

Working current

800mA

Reading speed

<200ms

Reading distance

0-20CM

Scan code features

automatic induction, buzzer prompt

Light source

Built-in LED light source, anti-glare interference

Card reading distance

3-6CM

Operating system

Windows (xp 7810), Linux

Indicating status light

redwork light, green feedback light, emerald green network light

Card reader type

non-contact IC card, ID card

QR Code Access Control

QR Code Access Control

QR Code Access Control

QR Code Scanning Module USB and UART Serial Port Barcode Scanner Identification Module Bar Code Reader for Access Control

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

QR-86D

100PCS

17KG

17.5KG

35x16x25cm


S4A Datesheet_Access Controller Dynamic QR Code Reader With Wiegand Output
