>Swipe speed:<200 milliseconds
>Wiegand output: 26 bits/34 bits
>Software version: V7.107 or above
>Hardware driver: V8.92 or above
>Output power: DC12v 10OomA (power supply lock and card reader)
Brand:
S4AItem NO.:

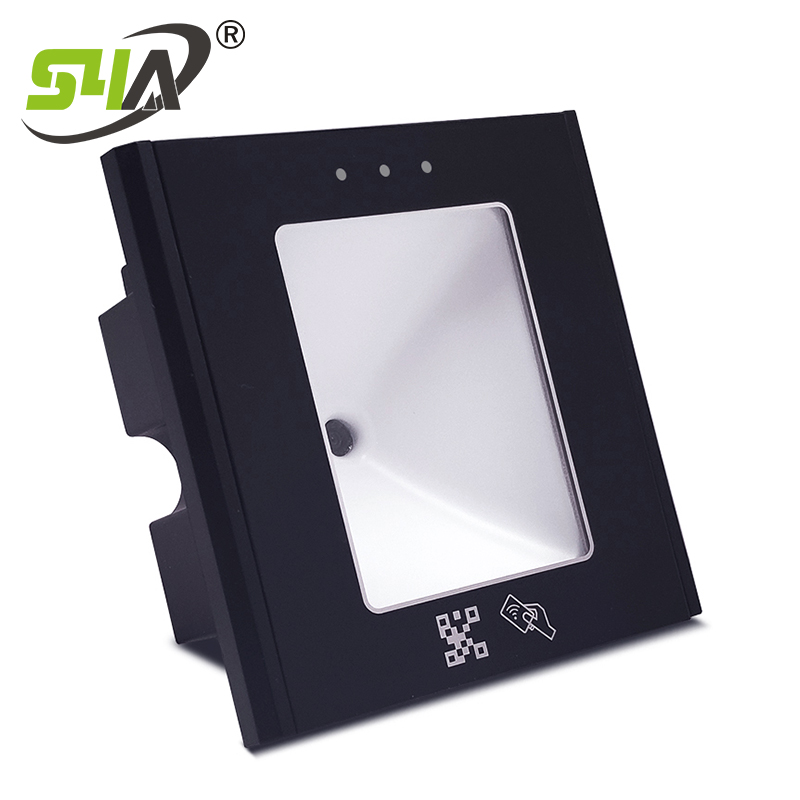

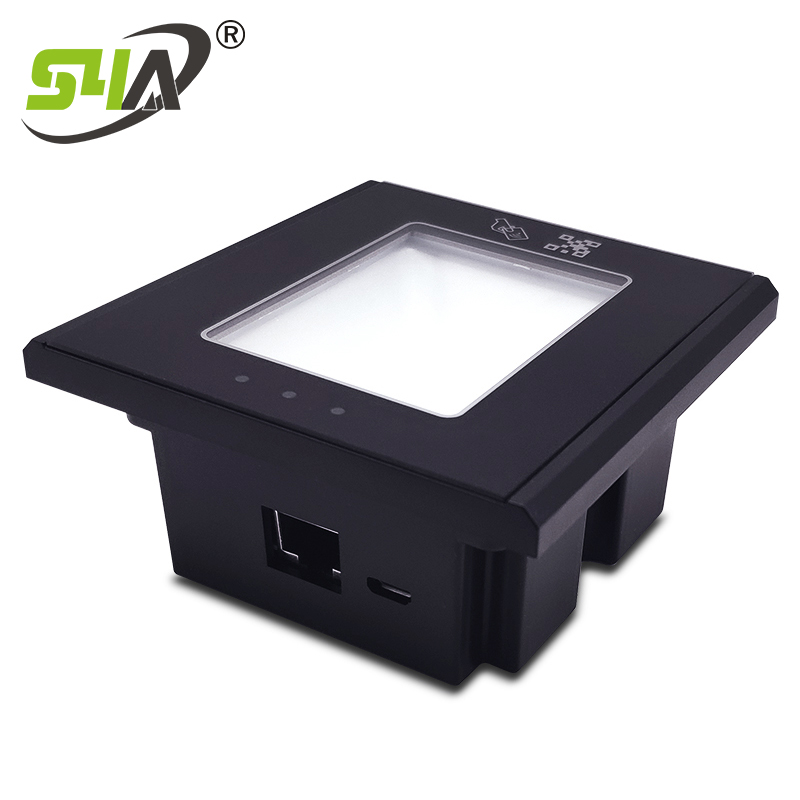

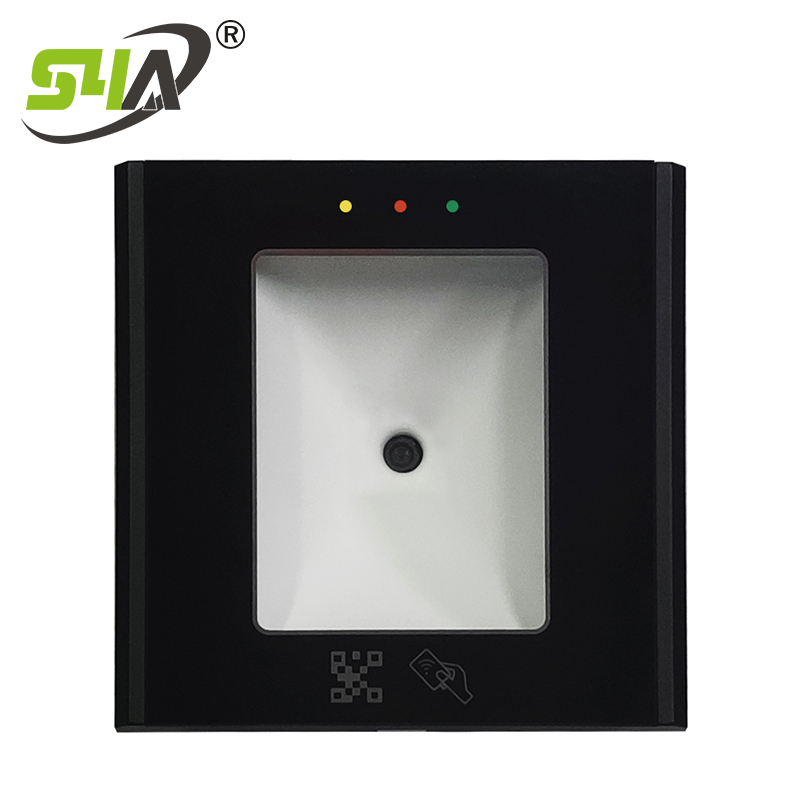

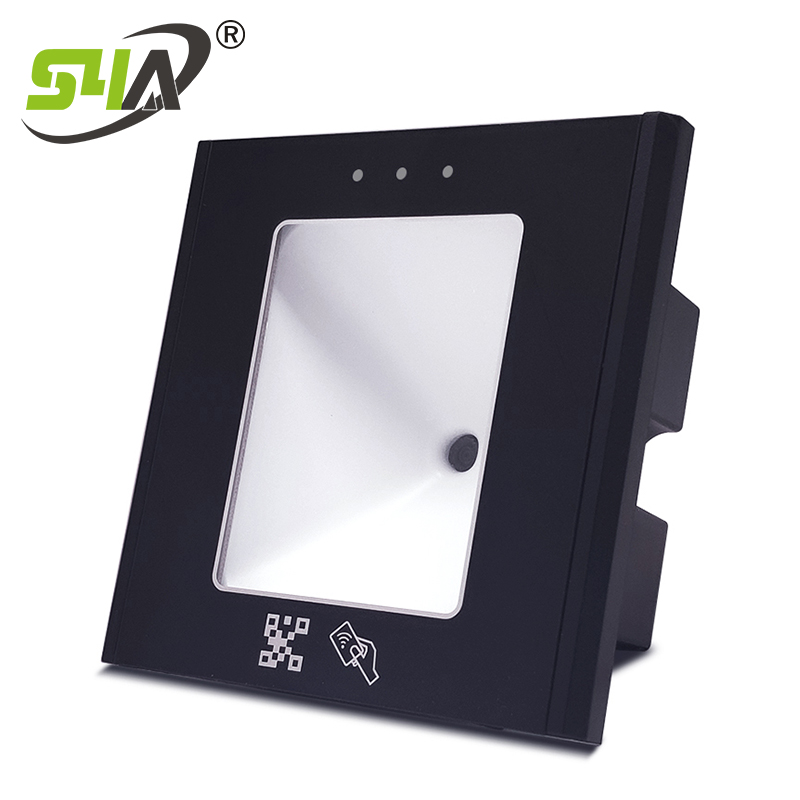

QR-86Access controller Dynamic QR code reader with Wiegand output
Model No.: QR-86D
Functions and features

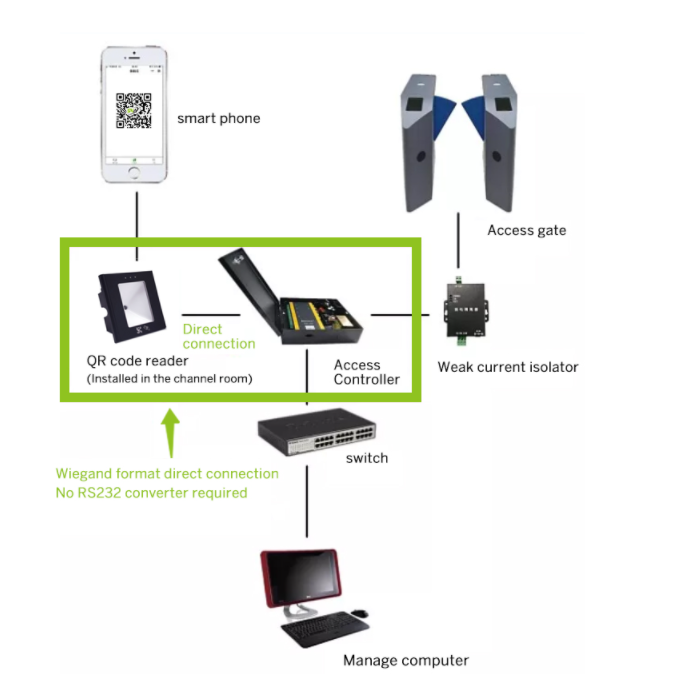

1. Wiegand signal QR code, simple wiring, and long-distance (up to 100 meters);
2. The mobile phone number is used as the card number, which is more convenient to set;
3. The WeChat applet generates a new dynamic QR code every 1 minute;
4. A screenshot of the QR code can be shared with visitors via WeChat and QQ with one click;
5. The shared QR code is valid for a short time;

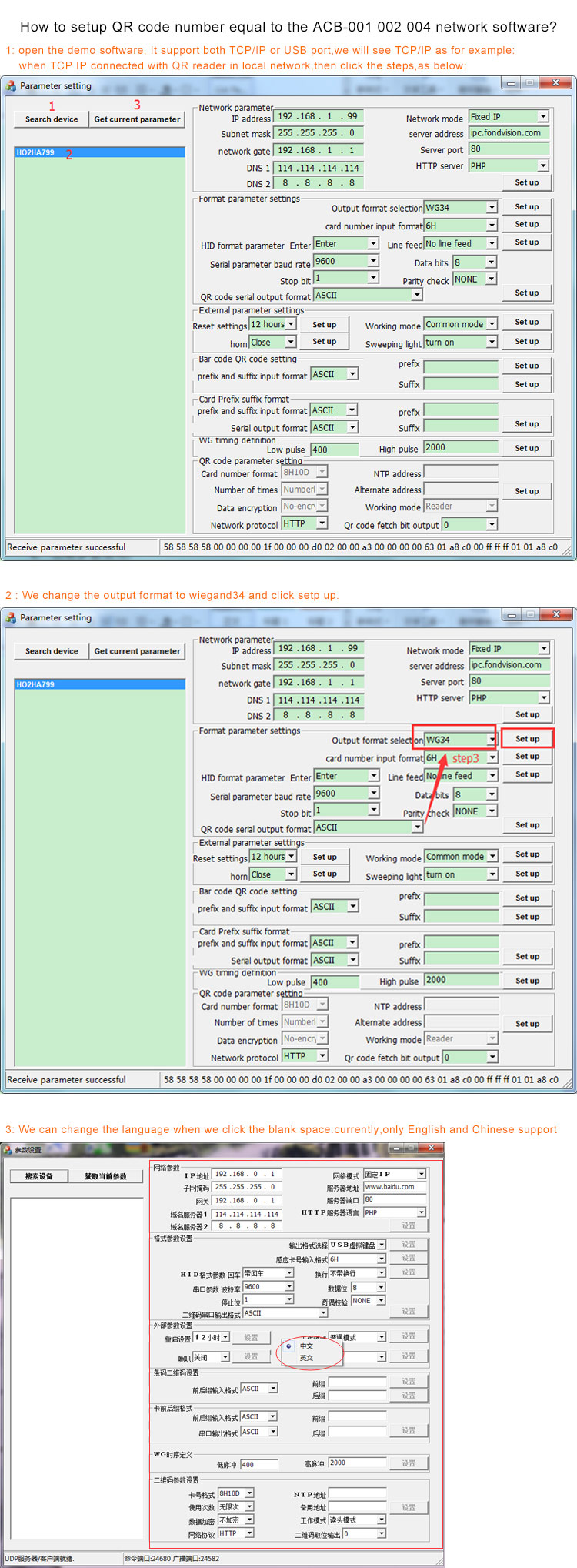

6. The two-dimensional code opening permission can be flexibly set through the access control software: which phones can be opened and which doors can be opened during which time periods;
7. There will be records and inquiries when opening the door with the QR code!
What is an Access Control Card Reader?
The access control card reader is an integral part of the access control system. It is used to read identification information such as access control cards, access control labels, or ID cards, and transmits this information to the access control controller for verification to determine whether the user has permission to enter a certain area. area or turn on a device.
Volume | 86*86*42mm |
Material | PC material |
Reading window | tempered glass |

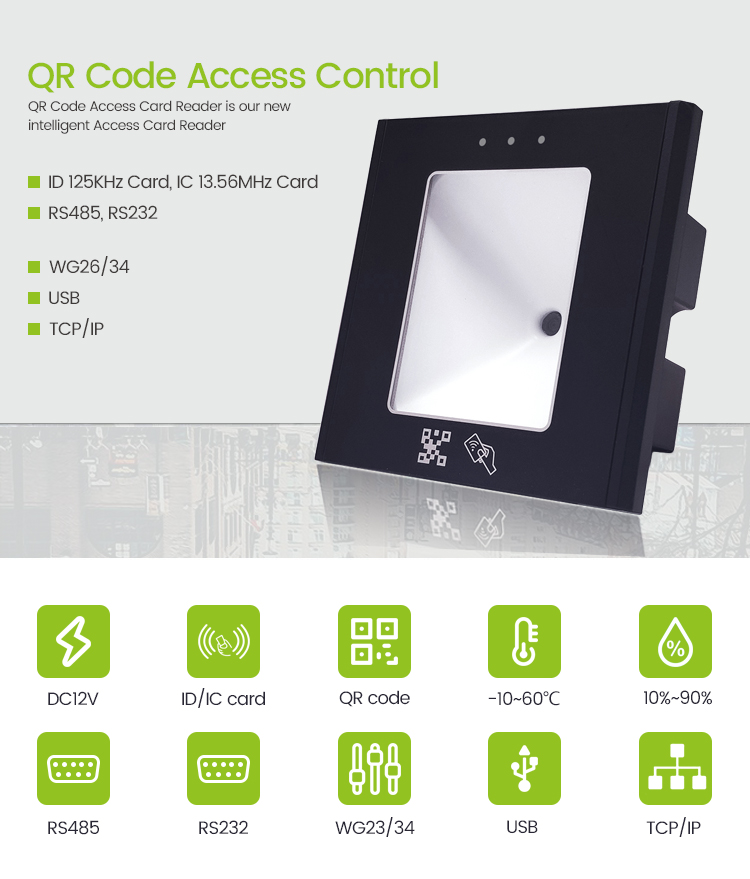

System interface | Wiegand, RS485, RS232 |
Decoding support | QR, a one-dimensional code |
Working voltage | Support 4-15V wide voltage input |
Working current | 800mA |
Reading speed | <200ms |
Reading distance | 0-20CM |
Scan code features | automatic induction, buzzer prompt |
Light source | Built-in LED light source, anti-glare interference |
Card reading distance | 3-6CM |
Operating system | Windows (xp 7810), Linux |
Indicating status light | redwork light, green feedback light, emerald green network light |

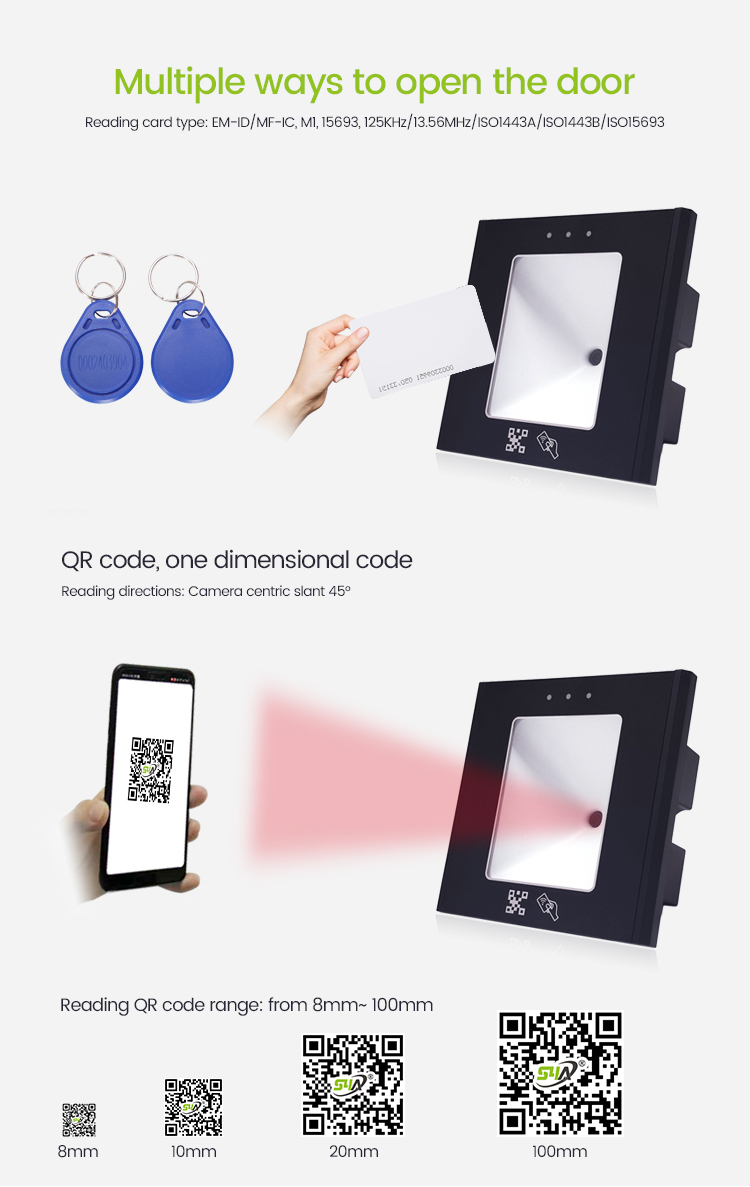

Card reader type | non-contact IC card, ID card |
QR Code Reader for Outdoor Access Control Wiegand26 Reader Module Scanner | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
QR-86 | 100PCS | 17KG | 17.5KG | 35x16x25cm |
S4A Datesheet_Access Controller Dynamic QR Code Reader With Wiegand Output
