> NFC RFID Access Control Reader
> Material: Acrylic panel
> Wiegand 26/34 output
> Dimension: 86x86x8mm
> Voltage: DC9~15V
> Working Frequency: 125KHz & 13.56MHz
> Working Indicator: Beeps and LED Indicator
Brand:
S4AItem NO.:

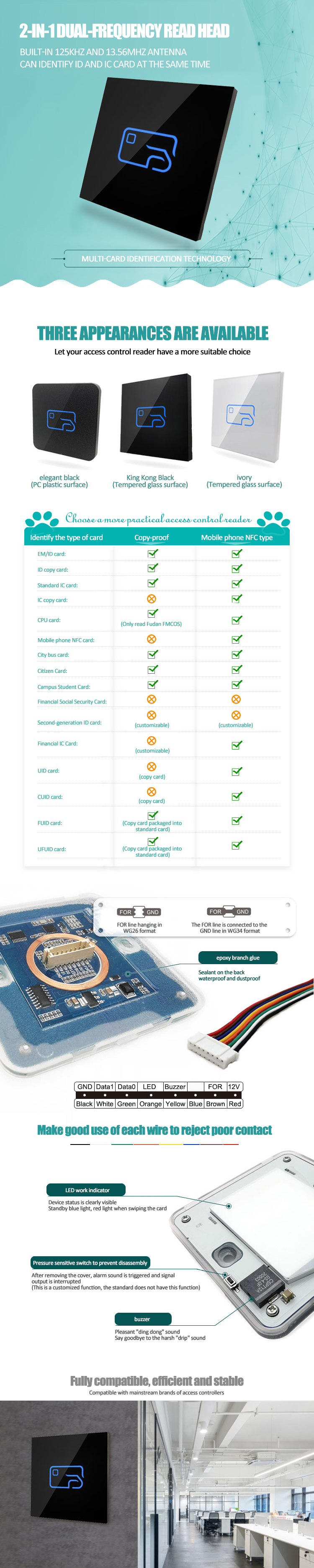

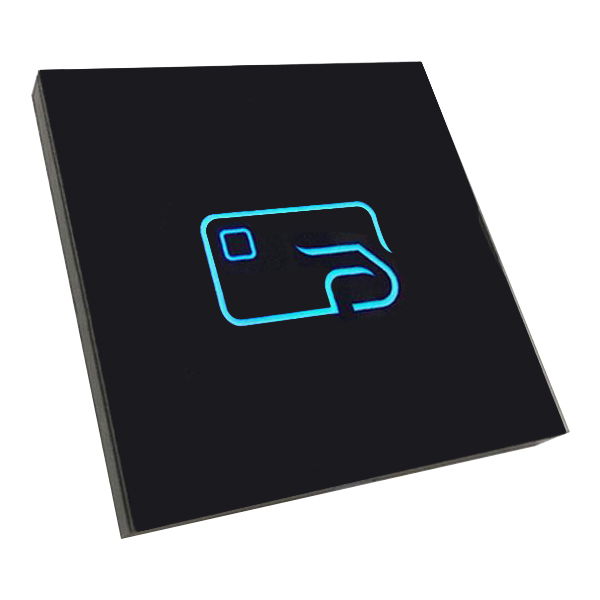

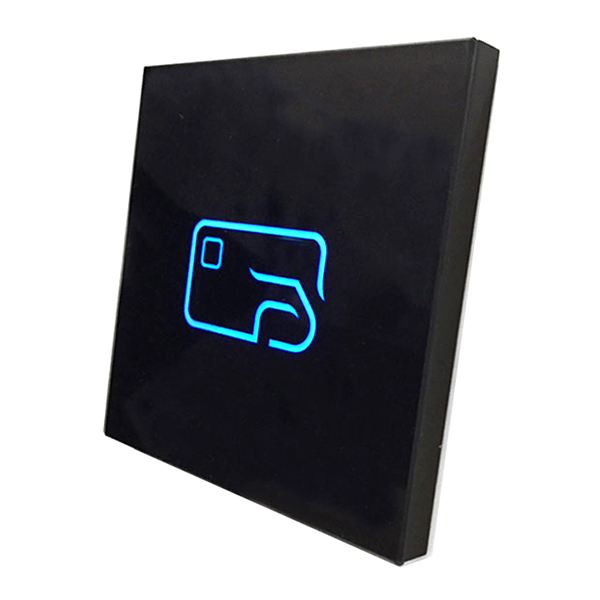

PCD-01NFCNFC RFID Access Control Reader Supports Dual Frequency Cards
Model No.: PCD-01NFC
What is NFC Smart Card Reader?
Reader/Writer mode: NFC-enabled devices are able to read and write to NFC and many other contactless cards. For example, if an NFC tag is attached to a poster, the NFC smartphone can “tap” the tag to access the information stored in the tag (e.g. coupons, maps, product information, etc) easily and conveniently.
Support card:
Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card.
Support card chip:
NXP_Mifare1K, NXP_Mifare4K, NXP_Mifare mini, Ultralight(C), Mifare PlusX(S), Desfire D21 D41 D81, EM4100, EM4200, TK4100.

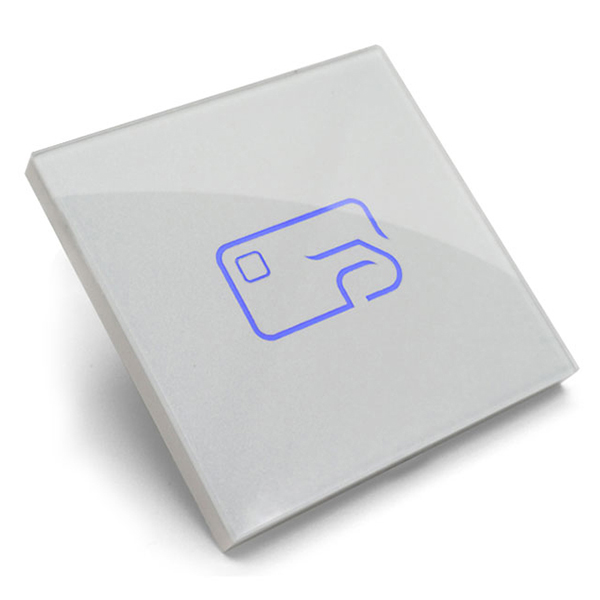

Model No, | PCD-01 | PCD-02 | PCD-01 NFC | PCD-02 NFC |
Material | Acrylic panel | Plastic panel | Acrylic panel | Plastic panel |
Card type | Standard ID/IC card, ID copy card. | Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card. | ||
Communication | Wiegand26, Wiegand34 | |||
Operating voltage | DC9~15V | |||
Working current | ≤80mA | |||
Stand-by current | ≤30mA | |||
Working frequency | 125KHz & 13.56MHz | |||
Operating temperature | -15°C~60°C | |||
Humidity | 5%~95% | |||
Reader response | ≤100ms | |||
Card reading distance | ≤50mm | |||
Transmission distance | <80m (Without electromagnetic interference) | |||
Working Indicator | Beeps and LED Indicator | |||
Colour | Black, White | |||
Dimension | 86x86x8mm | |||
S4A Datesheet_NFC RFID Access Control Reader Supports Dual Frequency Cards
