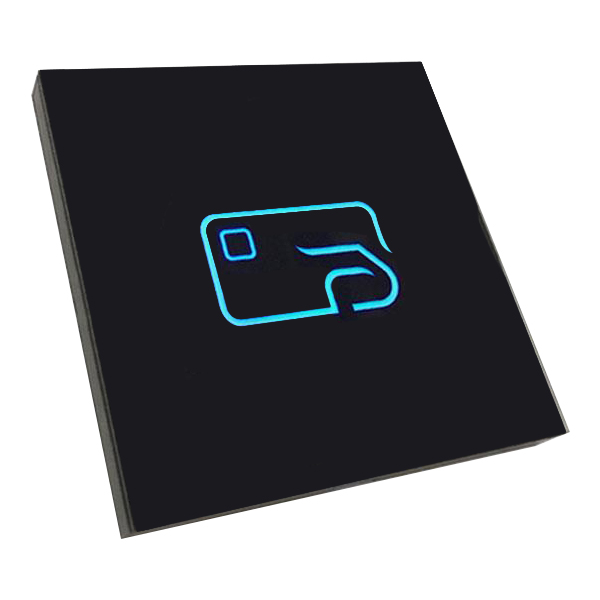

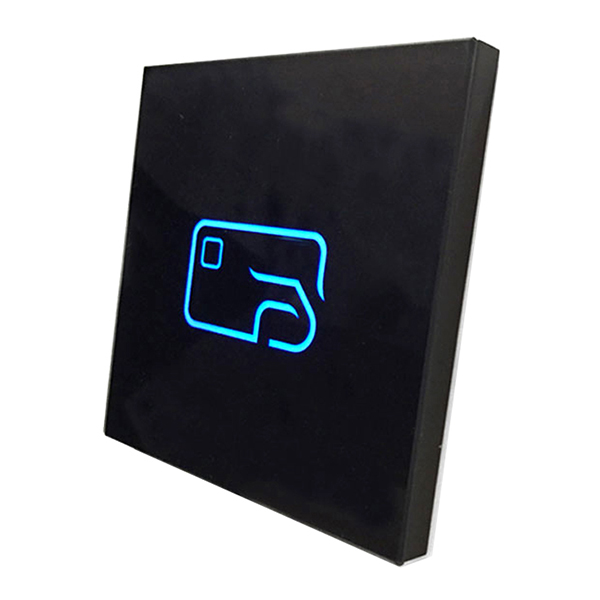

Dual Frequency RFID Access Reader for 3working Way

> Material: Acrylic panel
> Wiegand 26/34 output
> Dimension: 86x86x8mm
> Voltage: DC9~15V
> Working Frequency: 125KHz & 13.56MHz
> Working Indicator: Beeps and LED Indicator

Brand:
S4A
Item NO.:
PCD-01

Inquire Now

Specifications

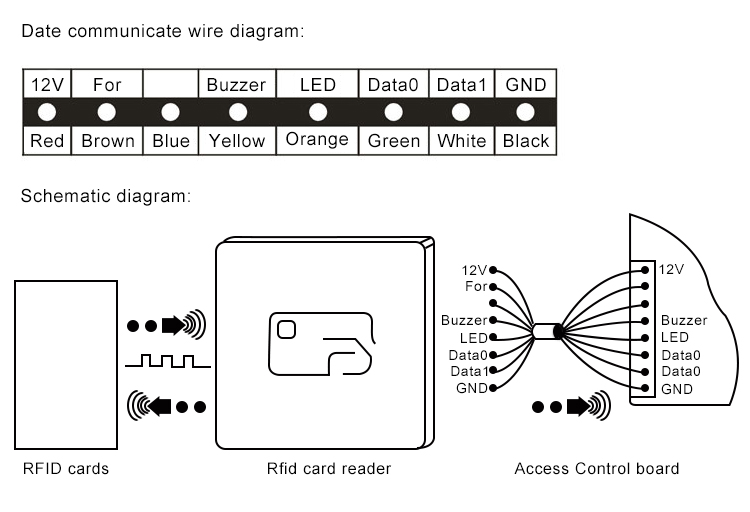

Wiring Diagram
Package
Download

Dual Frequency RFID Access Reader for 3working Way

Model No.: PCD-01

Support card chip: NXP_Mifare1k, NXP_Mifare4k, NXP_Mifare mini, Ultralight(C), Mifare PlusX(S), Desfire D21 D41 D81, EM4100, EM4200, TK4100.

The product can be easily applied in the following:

Oces, Computer rooms, Banks & Building societies, Hospital, Gate life, Airports, Universities, Factories.

Model No,	PCD-01	PCD-02	PCD-01 NFC	PCD-02 NFC

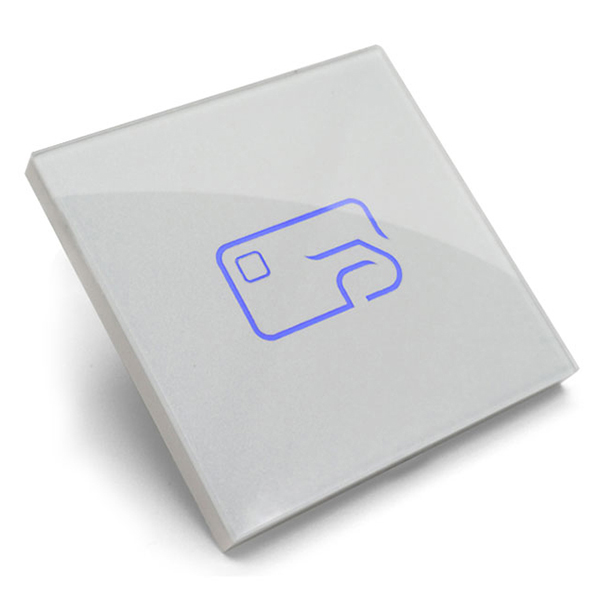

Material	Acrylic panel	Plastic panel	Acrylic panel	Plastic panel
Card type	Standard ID/IC card, ID copy card.		Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card.
Communication	Wiegand26, Wiegand34
Operating voltage	DC9~15V
Working current	≤80mA
Stand-by current	≤30mA
Working frequency	125KHz & 13.56MHz
Operating temperature	-15°C~60°C
Humidity	5%~95%
Reader response	≤100ms
Card reading distance	≤50mm
Transmission distance	<80m (Without electromagnetic interference)
Working Indicator	Beeps and LED Indicator
Colour	Black, White

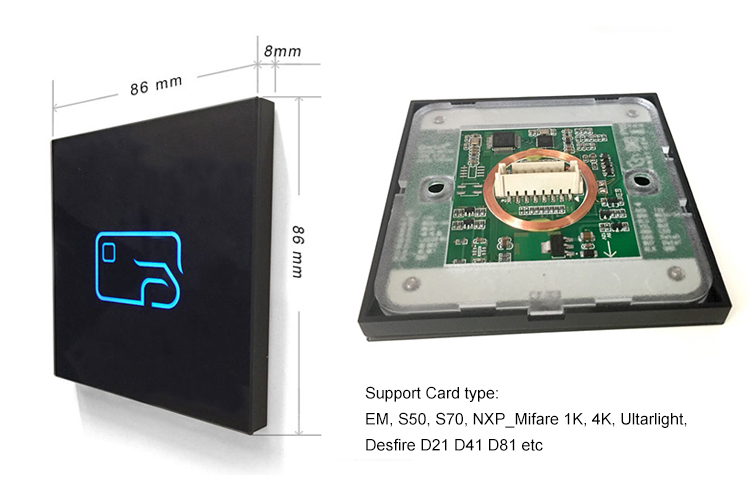

Dimension	86x86x8mm

Dual RFID Card Reader

S4A Datesheet_Dual Frequency RFID Access Reader for 3working Way

Download
