>Operating Voltage:12V/24VDC
>Working frequency:Default 315MHz, optional 433MHz
>Encoding type: Rolling code, fixed code, learning code
Brand:
S4AItem NO.:

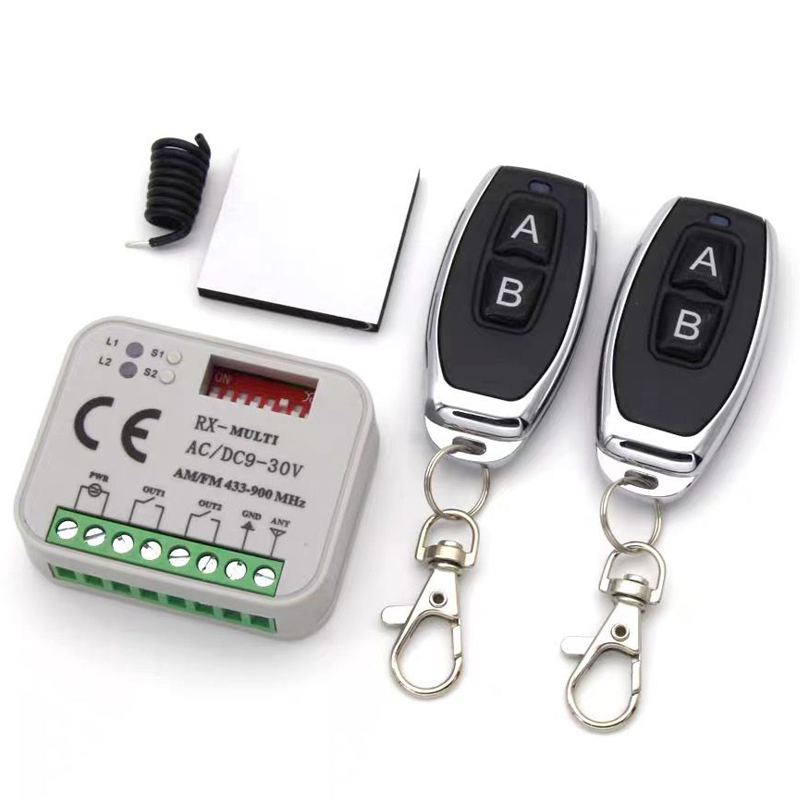

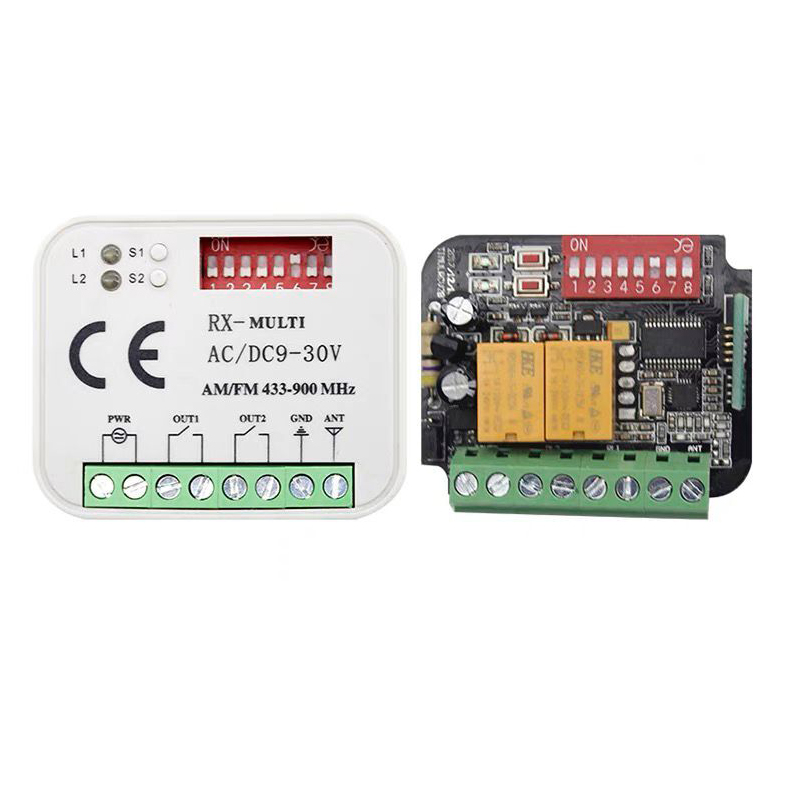

RX-MULTIRX MULTI 300-900MHZ Aprimatic TR2 TR4 TM4 Rolling code Remote control receiver switch
Model No.: RX-MULTI
Advantages
Remote control selection: multi-frequency reception, compatible with domestic and foreign remote controls, using an 8-bit dial switch, users can choose different brands of remote control channels.

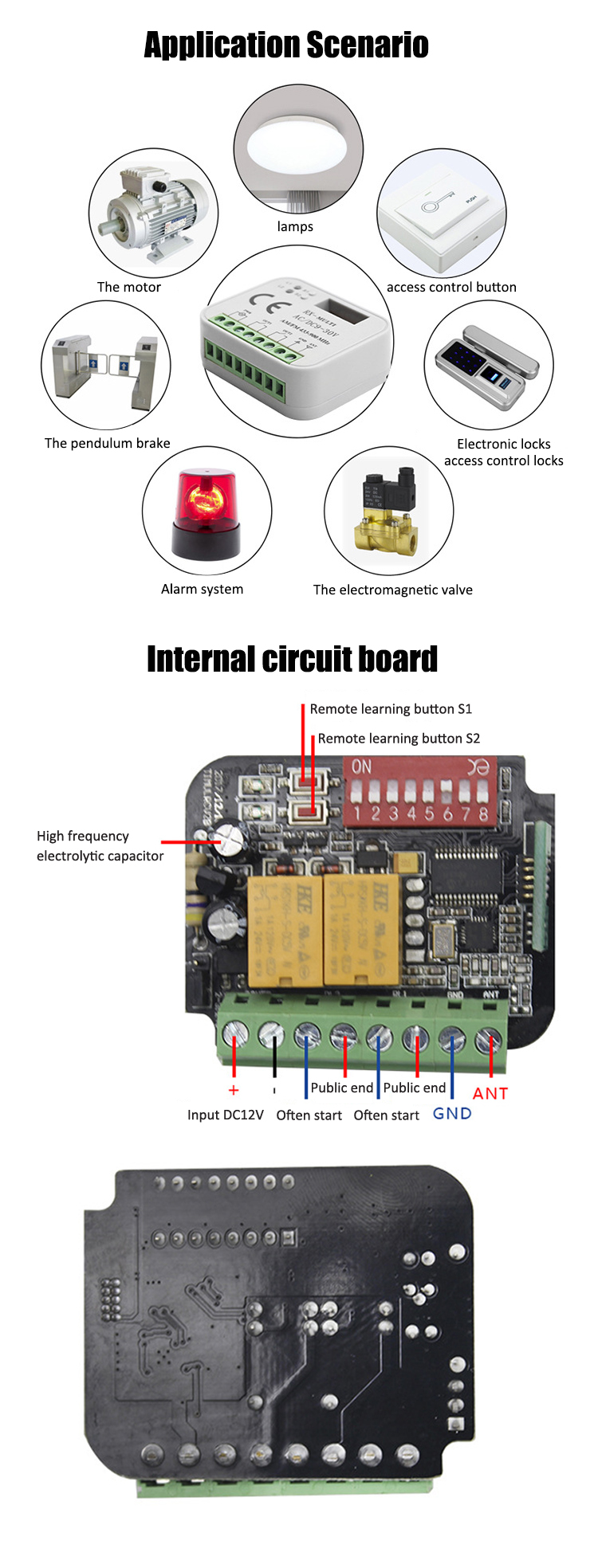

Learning remote control: The multi-frequency controller has two independent output channels, and each channel has independent learning buttons S1 and S2.
Way of working
How to go into remotes and erase all remote inputs for one or more remotes
(1) First, choose the correct remote control brand to enter through the dial switch;
(2) Press any learning button, and the LED turns on. Press the button on the remote control, the LED flashes 4 times, this button enters R-Multi successfully.
(3) Repeat step 2 for the other button. 2 channels work on the same.
Erase all data from the memory card
(1) Press and hold the learn button, and the LED starts to light up.
(2) Keep pressing the button until the LED light turns off. All data on the memory card is erased.
Operating Voltage | 12V/24VDC |
Working frequency | Default 315MHz, optional 433MHz |
Encoding type | Rolling code, fixed code, learning code |

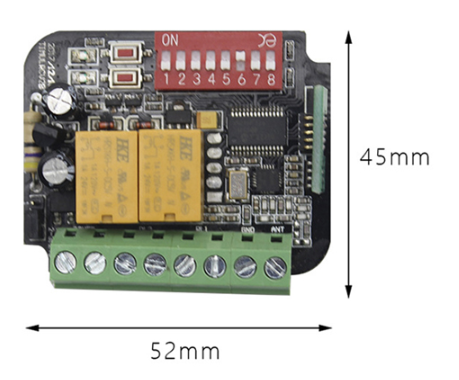

Receiver size | 55*45*10mm |
Receiving distance | 200 meters (open ground) |
