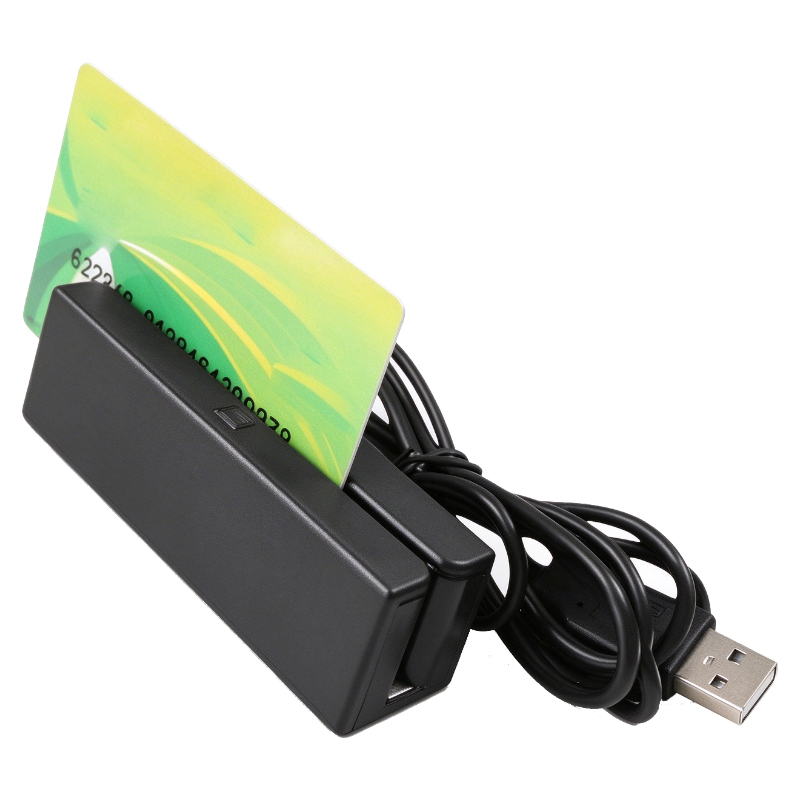

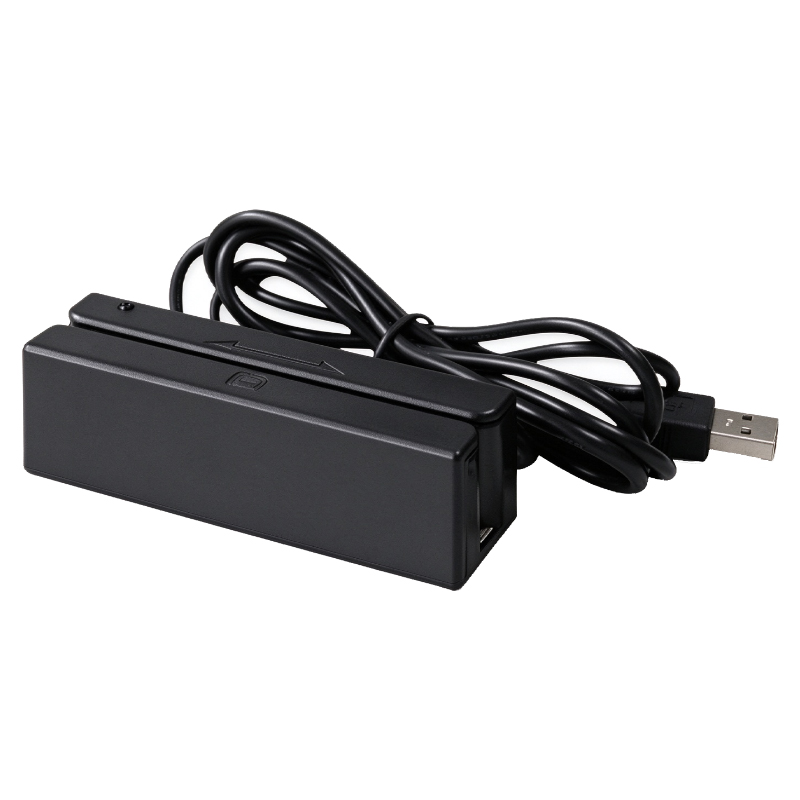

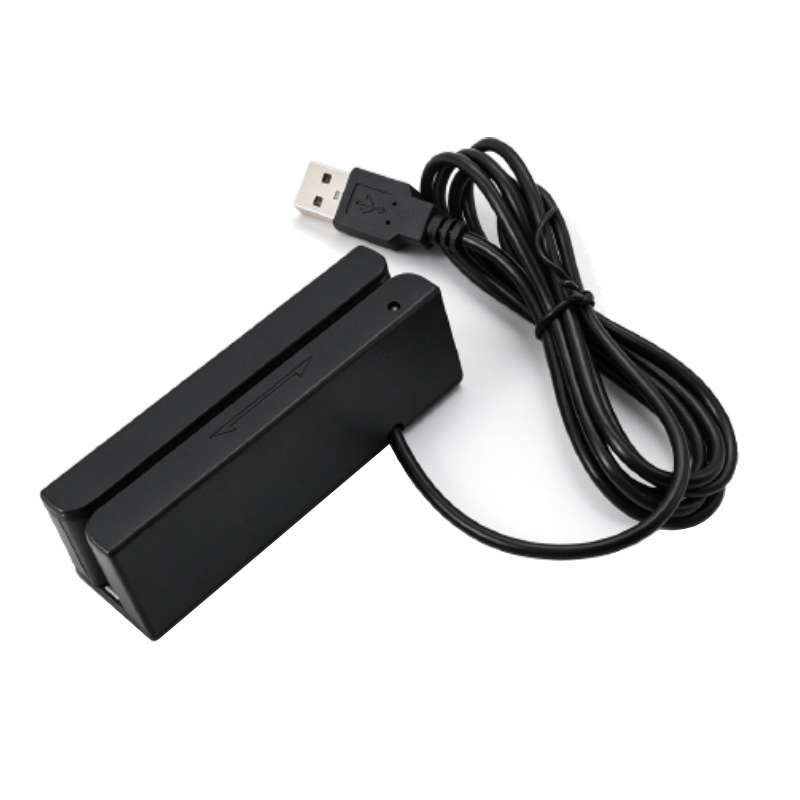

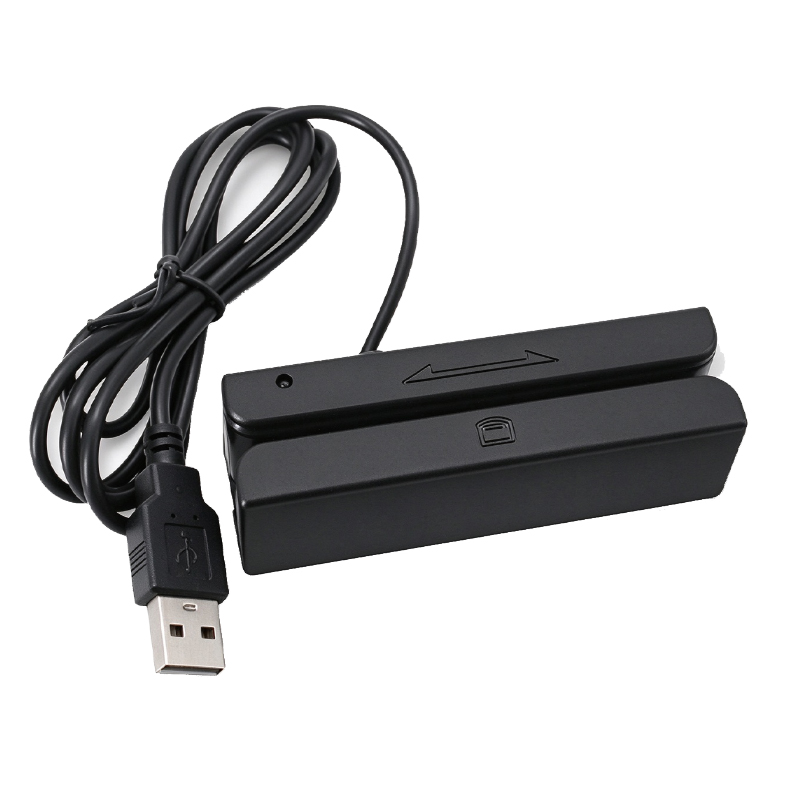

MS-7810MS-7810 3-Track USB Magnetic Card Reader
The MS-7810 is a high-performance, driver-free 3-track USB magnetic stripe card reader designed for POS systems, banking, and identity verification applications. Featuring bi-directional swiping, high/low coercivity reading support, and an extended magnetic head lifespan exceeding 800,000 swipes, it offers reliable, plug-and-play card reading across Windows and Android devices.
Parameter
Specification
Model Number
MS-7810
Magnetic Card Standard
ISO7810-7813
Data Tracks
Tracks 1, 2, and 3
Interface Type
USB (Keyboard Emulation Output)
Reading Speed
15 to 120 cm/sec
Magnetic Head Lifespan
≥ 800,000 swipes
Track Width
1.5 mm
Operating Voltage / Current
DC 5V ±5% / ≤ 50mA
Status Indication
Monochrome LED Light and Buzzer
Material & Color
ABS Housing (Black)
Card Thickness
PVC 0.76 ± 0.08 mm
USB Cable Length
1420 mm

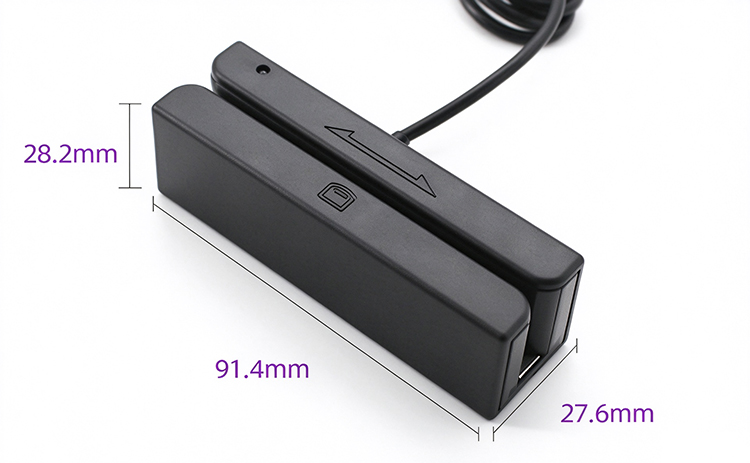

Product Dimensions
91.4 × 27.6 × 28.2 mm
Product Weight
80 g
Supported Systems
Android (OTG required), Windows XP, Windows 7, Windows 10
Operating Environment
0°C to +70°C, 0% to 90% RH
Storage Environment
-30°C to +70°C, 0% to 95% RH
Applications
Banking, POS Terminals, ID Authentication, Membership & Hotel Management Systems
