> PCD series is available for OEM and ODM. KR series is not allowed
> Delivery terms: EXW factory
> This is RFID card reader only, need to work with ACB series Control board
> Delivery time: If under 500pcs/model, within 2-3working days once confirmed
Brand:
S4AItem NO.:

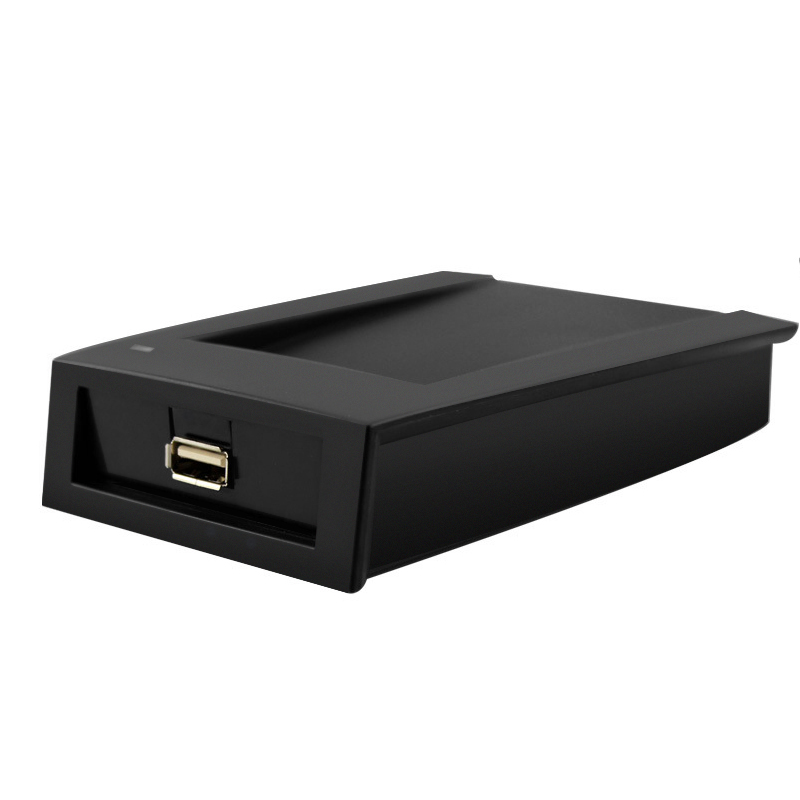

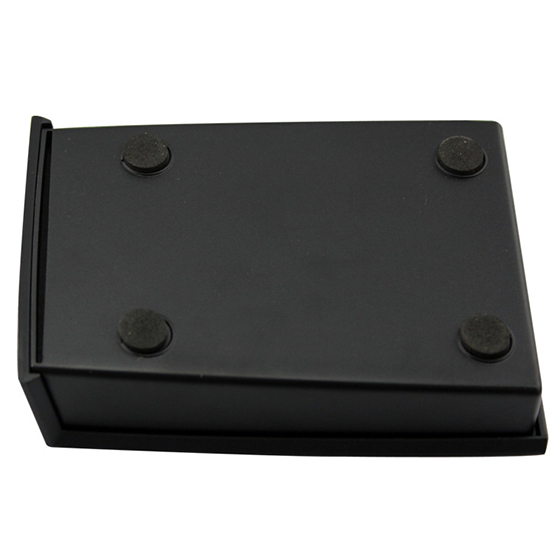

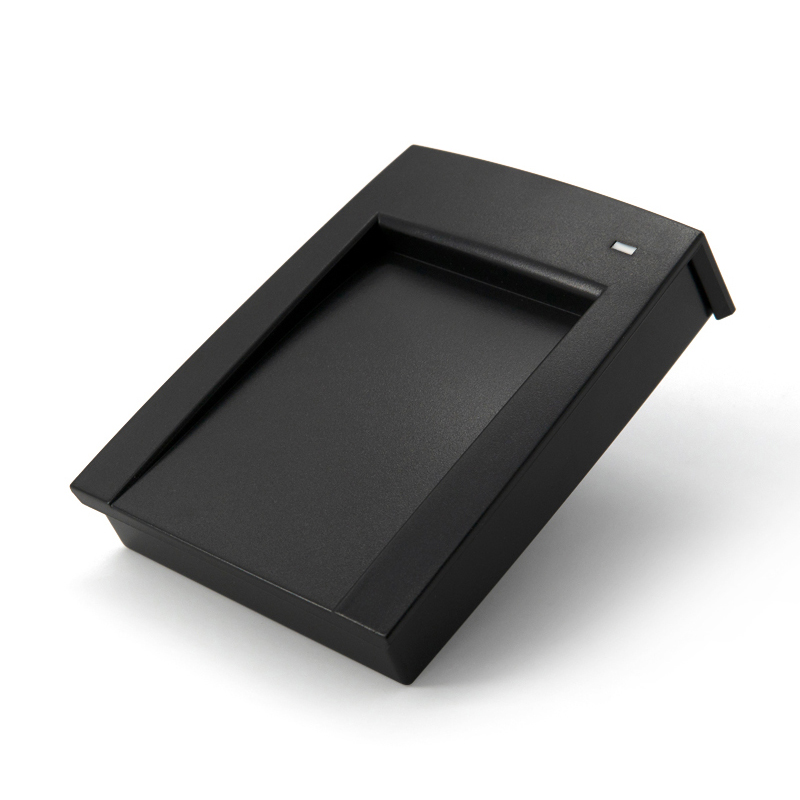

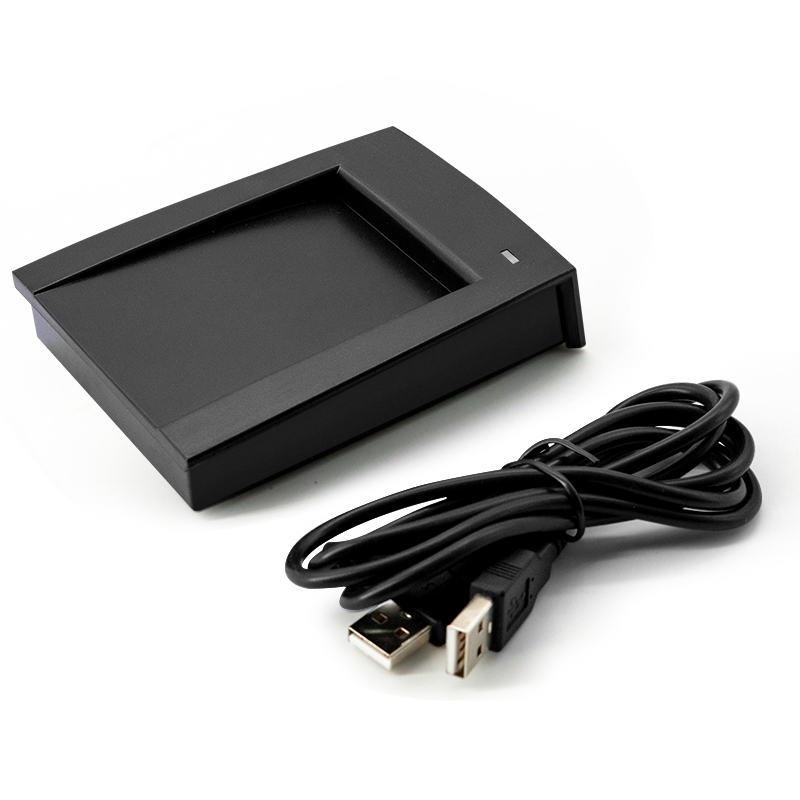

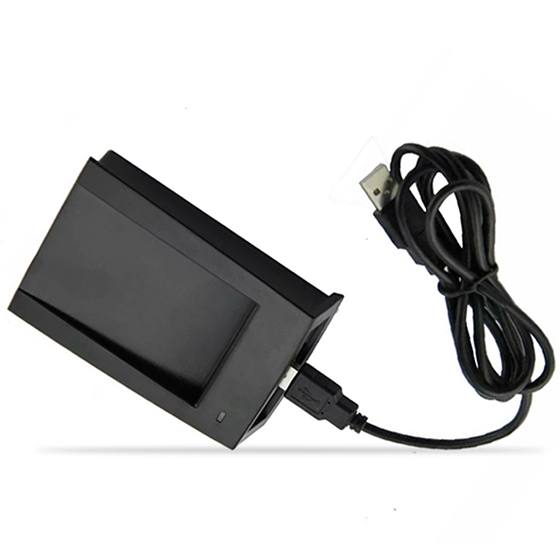

MCI-109Desktop RFID Reader 125kHz Proximity Card Reader issuing with USB Interface
Model No.: MCI-109
|

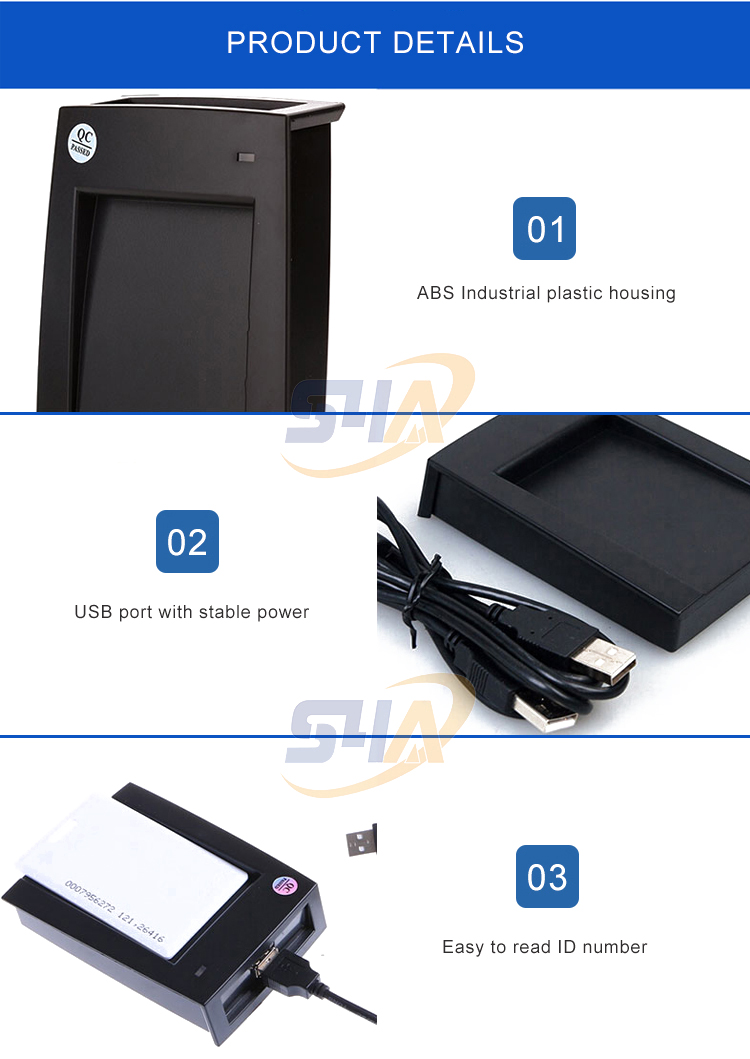

Material |
ABS+Epoxy |
|

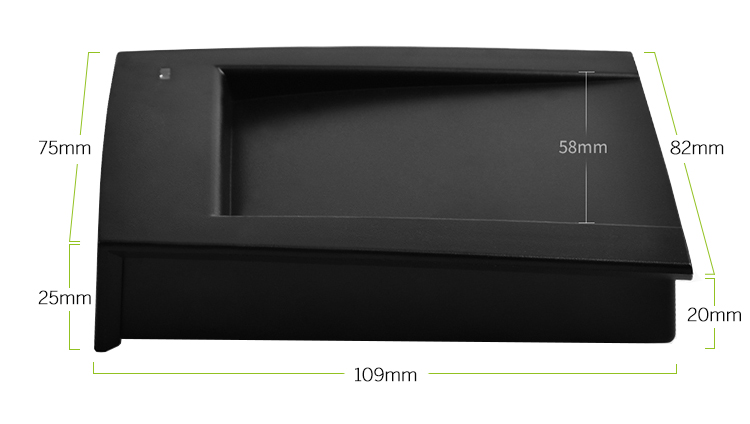

Size |
109x75x25mm |
|
Item |
13.56mhz Rift USB Card Reader |
|
Voltage |
DC12V |
|
Static Current |
less than 50mA |
|
Colour |
Black and another colour |
|
Reading Distance |
ID: 3~15cm / IC: 2~8cm |
|
Temperature |
-25℃~85℃ |
|
Reader speed |
less than 0.2sec |
|
Humidity |
10%~90% |
|
Support |
125KHz EM ID/13.56MHz MF IC/ Dual-frequency at the same time |
|
Card Type |
EM-ID card, Middle distance ID card, General ID card, Dual-frequency card |
|
Frequency |
125KHz/13.56MHz / Dual frequency |
|
Interface |
USB |
|
Built-in |
Antenna,speaker,buzzer,red(blue)green color LED |
|
Transmission |
USB |
|
Supporting System |
compatible with Windows98/2000/XP |
|
Special Provide |
Logo printing,long cable,Reader module,Dual-frequency(ID&IC) |
|
Application |
For access control, attendance, fees, patrol, card, building on say, parking systems, highways and RFID outdoor application. |
|
Desktop Rfid Reader 125khz Proximity Card Reader Issuing with Usb Interface |
||||
|
Model No. |
Quantity/Carton |
Net Weight |
Gross Weight |
Carton Size |
|
MCI-109 |
200PCS |
15.38KG |
15.5KG |
38x46x44cm |
S4A Datesheet_Desktop Rfid Reader 125khz Proximity Card Reader Issuing with Usb Interface
