> 2,100 users, user data can be transferred
> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
> Can connect with any reader with Wiegand 26~37 bits output
> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
> Support Master Card function
> Support set principal card
Brand:
S4AItem NO.:

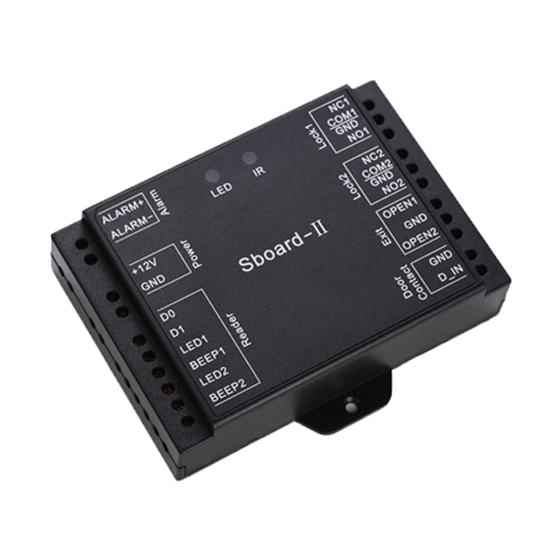

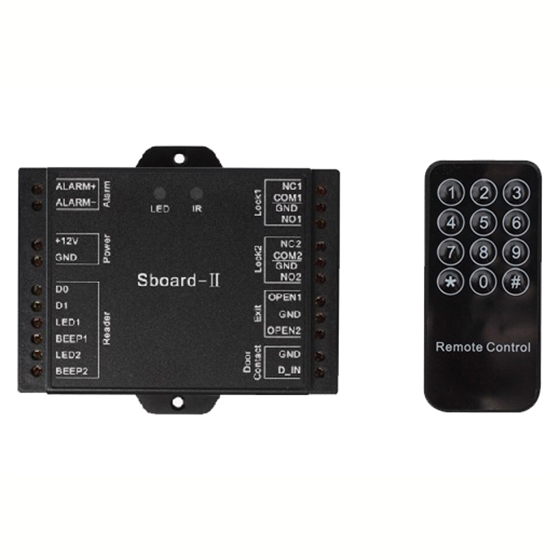

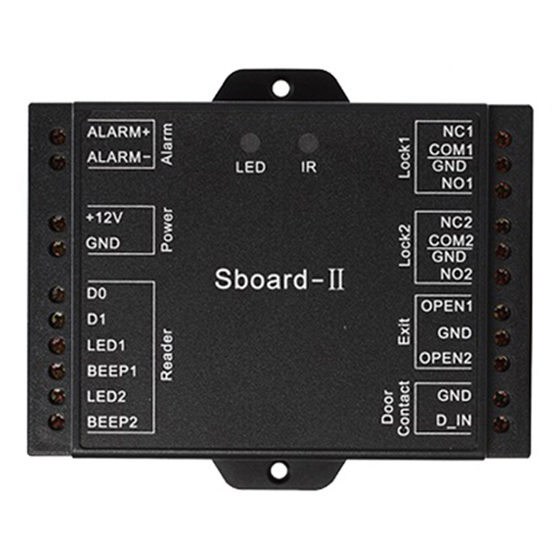

Sboard-IIMini Two-door Controller
Model No.: Sboard-II

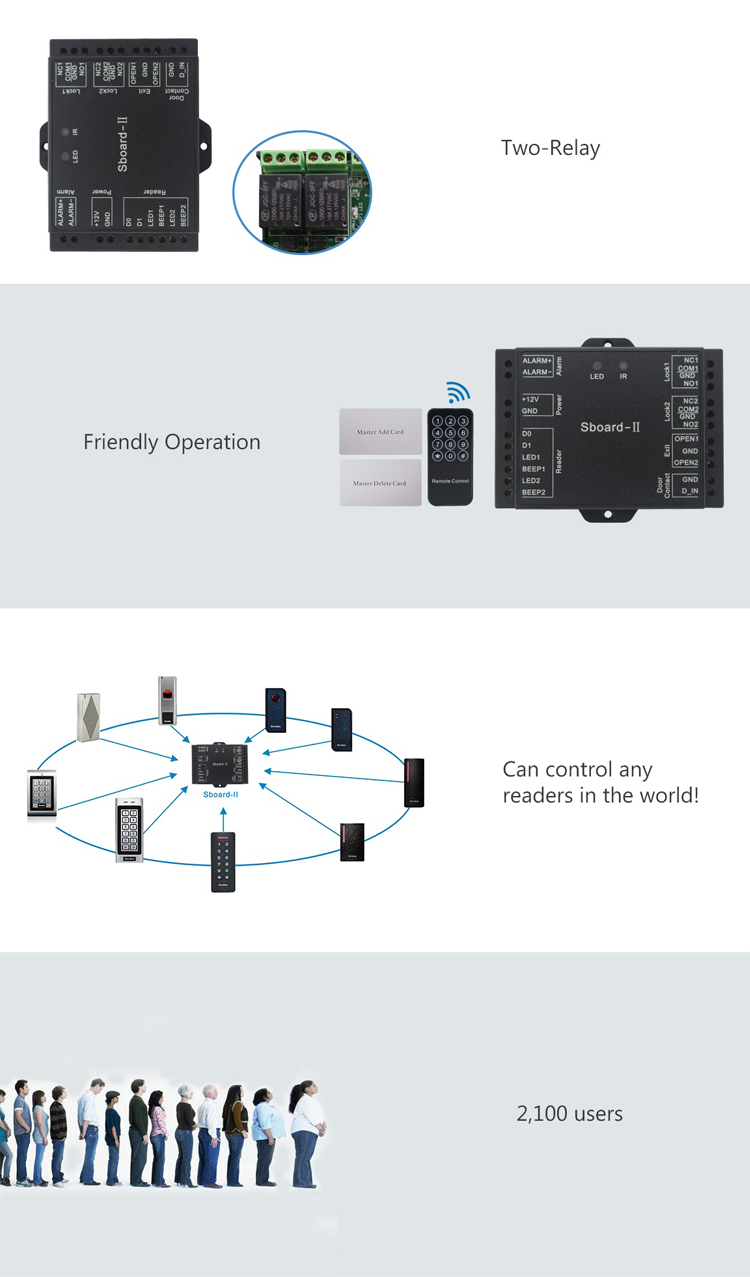

Board-II is a dual-relay controller that can control any Wiegand readers in the world!
> 2,100 users, user data can be transferred
> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
> Can connect with any reader with Wiegand 26~37 bits output
> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
> Support Master Card function
> Support set principal card
User Capacity | 2,100 |
Zone 1 | 2,000 |
Zone 2 | 100 |
Operating Voltage | 9~24V DC |
Idle Current | <30mA |
Idle Current (With Wifi) | <100Ma |
Relay | |
Adjustable Relay Output Time | 1~99 Seconds (5 seconds default) |
Lock Output Load | 10 Amp Maximum |
Wiegand Interface | |
Input | Wiegand 26~37 bits |
Output | Wiegand 26~37 bits (for user transfer) |
Environment | Indoor |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 0~90%RH |
Physical | ABS Shell |
Colour | Black |

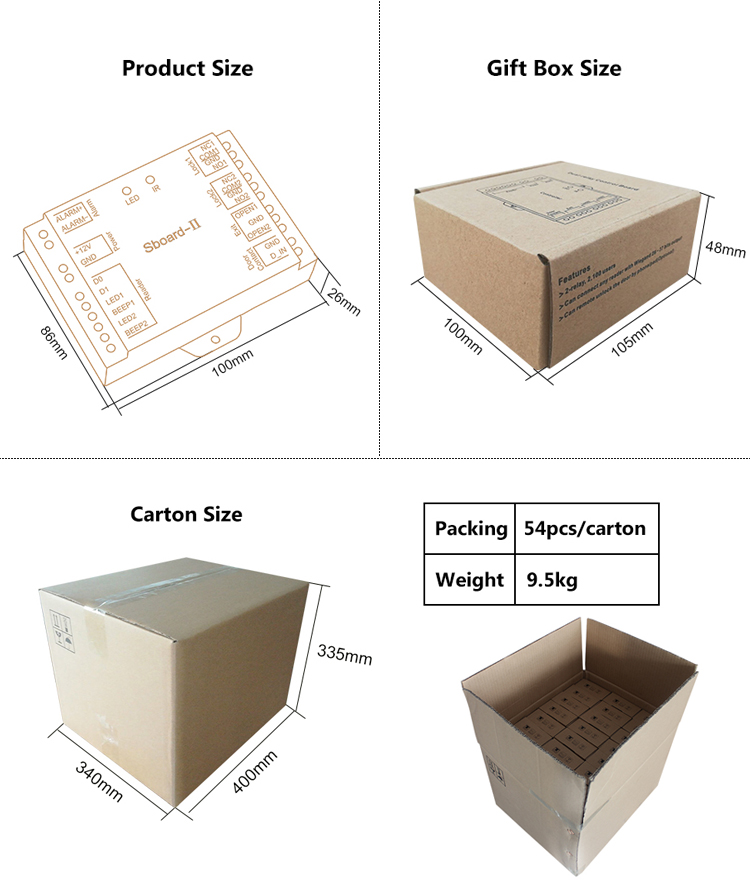

Dimensions | L100 x W86 x D26(mm) |
Unit Weight | 110g |
Shipping Weight | 180g |
S4A Sboard-II Use Manual_Mini Two-door Controller
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
