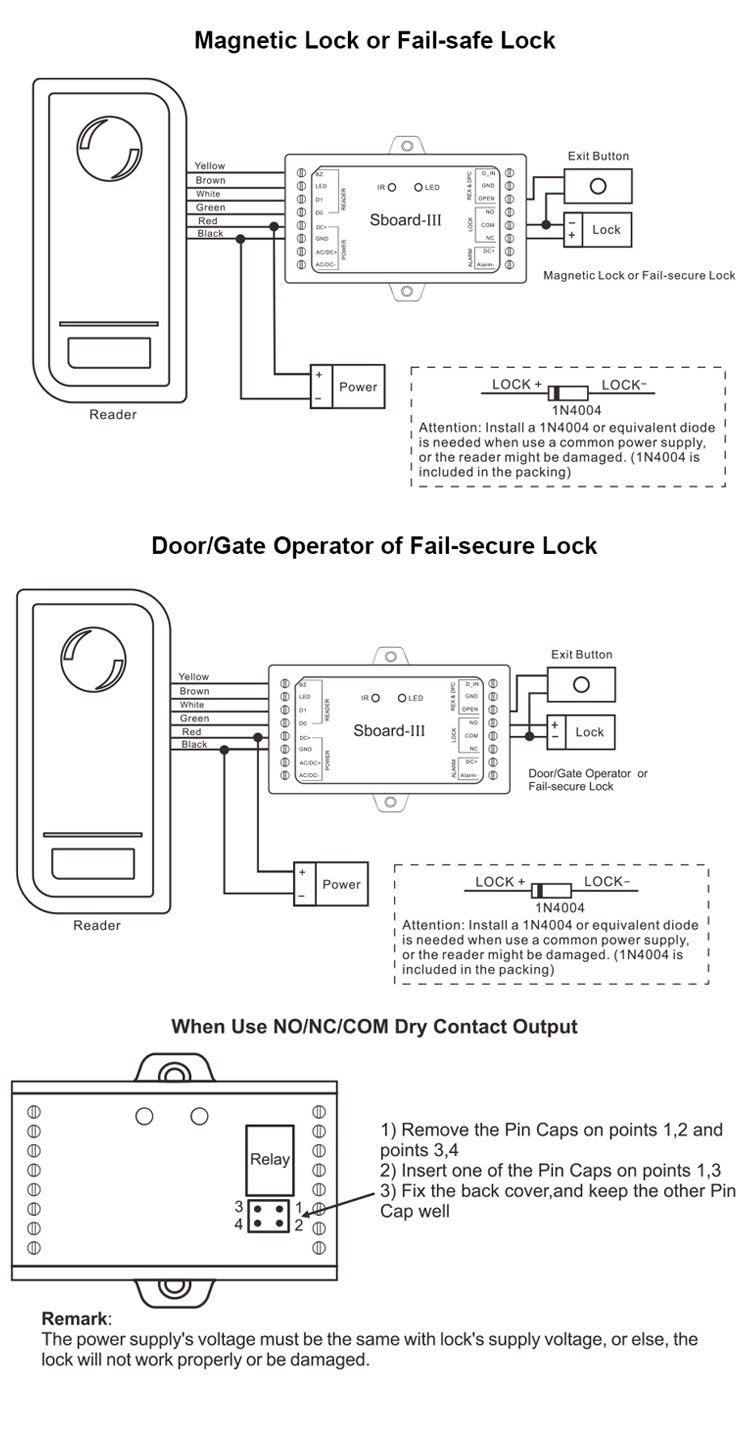

  • Wiring Diagram
  • Package

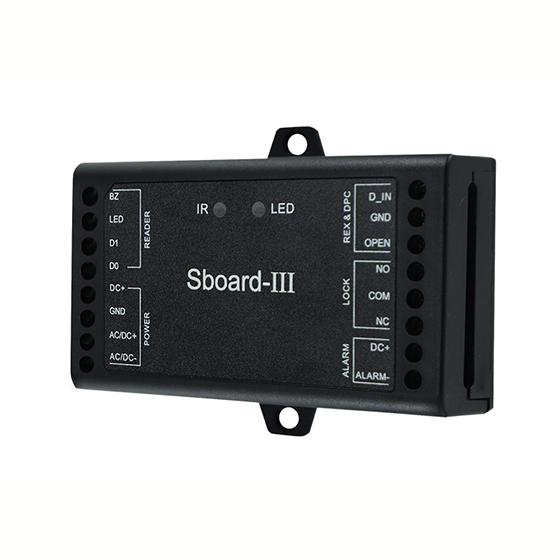

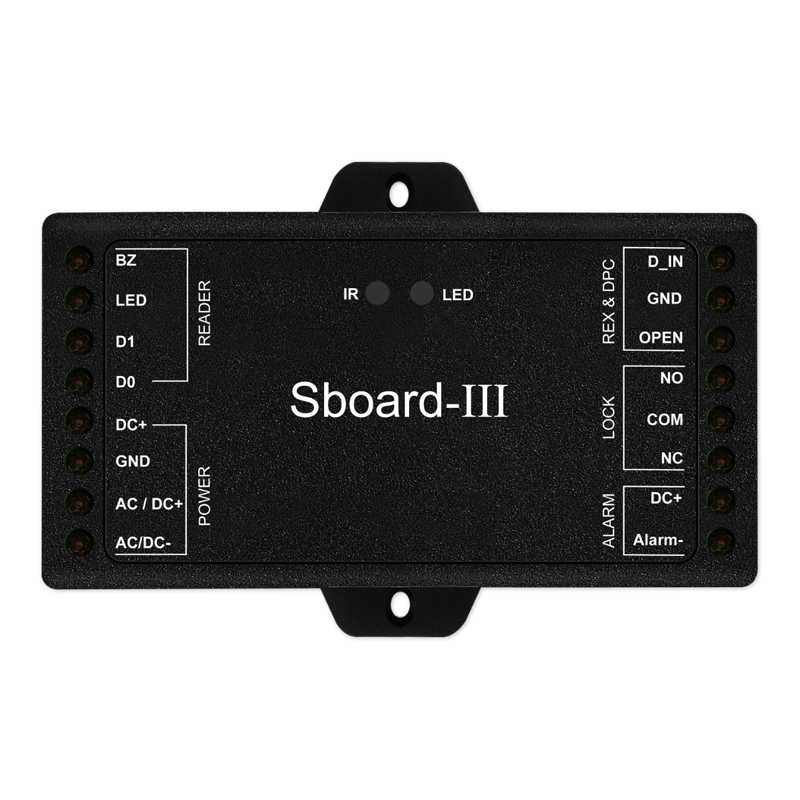

Mini Control Board

Model No.: Seaboard-III


The Seaboard-III is a mini size single door access control board, it supports a 12~28V AD/DC power supply,

Wiegand 26~44, 56, 58, 64 bits input, and it can work with external alarm.

> 999 users, user data can be transferred

> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs

> Can connect with any reader with Wiegand 26~44, 56, 58, 64 bits output

> Can connect with any keypad reader with 4bits, 8bits (ASCII) output

> 12~28V AC/DC power input, 12V DC output

> Can connect with external alarm and door contact


User Capacity

999

Operating Voltage

12~28V AC/DC

Idle Current

< 20mA

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~300 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Wiegand Interface

Input

Wiegand 26~44, 56, 58, 64 bits

Environment

Indoor

Operating Humidity

0 ~ 90%RH

Physical

ABS Shell

Colour

Black

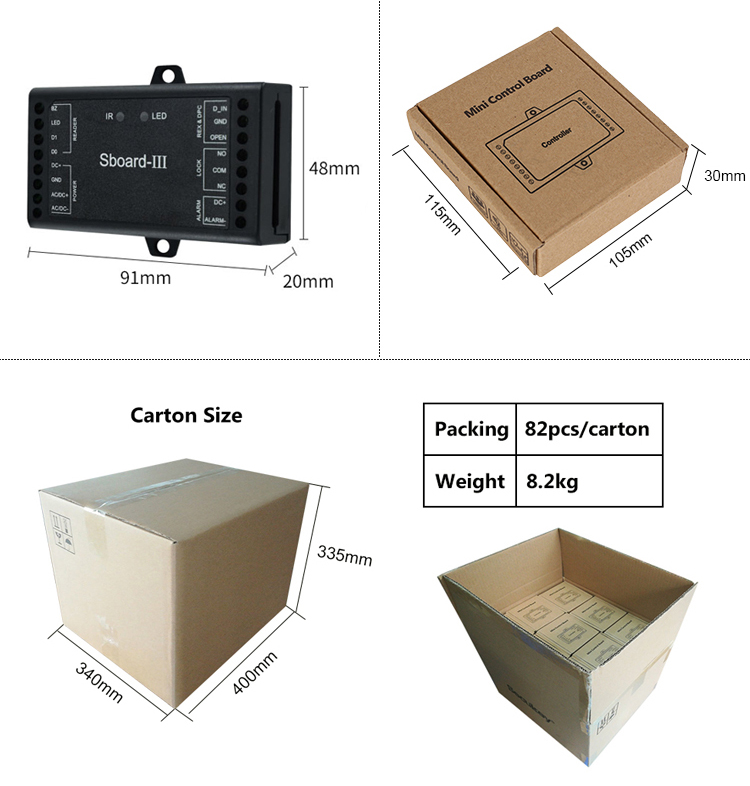

Dimensions

L91 x W48 x D20 (mm)

Unit Weight

63g

Shipping Weight

73g


Mini Control Board

Mini Control Board

Mini Control Board
