RFID Locker Access Control board to control 20-40pcs locks,

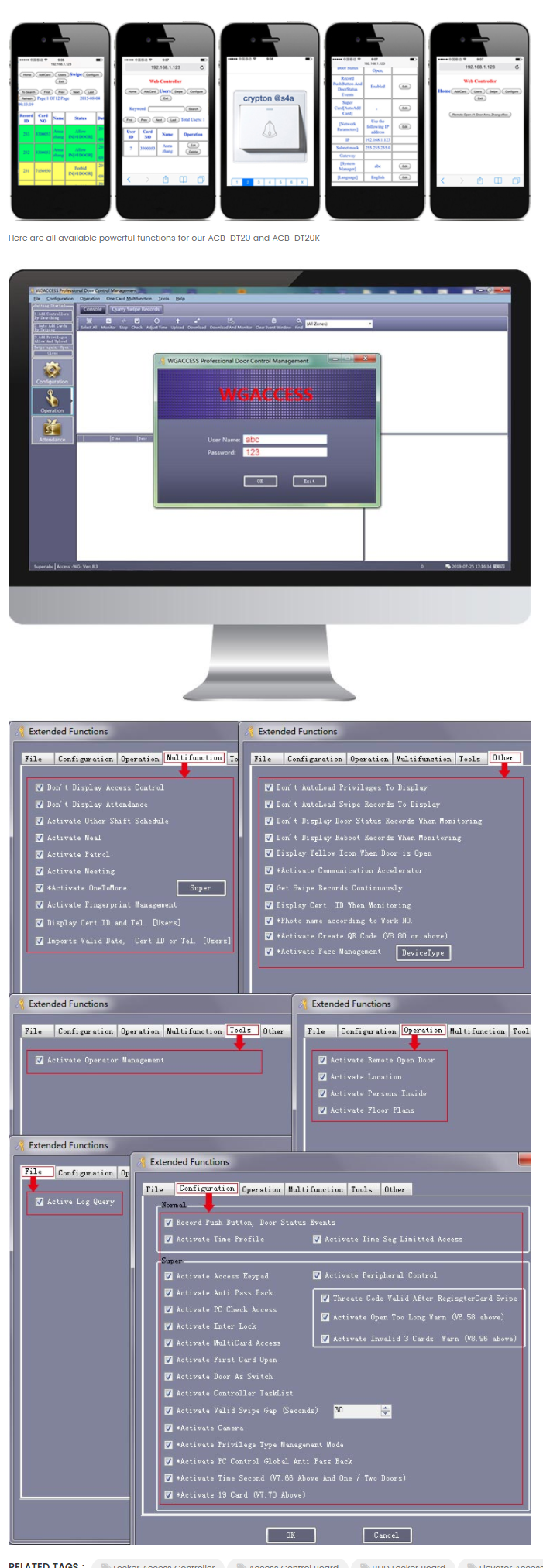

built-in TCP/IP with free software to manage users. Support RFID/Pincode/Face/Finger to access
Brand:
S4AItem NO.:
ACB-DT20Elevator/Locker Access Controller Lift Access Control Panel for Manage 20 Floors
Model No.: ACB-DT20
What is Access Control?
Access control is a security technique that regulates who or what can view or use resources in a computing environment. It is a fundamental concept in security that minimizes risk to the business or organization.
Model | ACB-DT20 20-40Floors Elevator Access Control Unit |
Input Format of Reader | Wiegand 26/34bit (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) |
Q ' ty of users | 20,000 |
Q ' ty of Event Buffers(offline) | 100,000 |
Power Supply | 12V DC 5A |
Communication to PC | TCP/IP 10M/100M self-adaptive |
Number of supported floors | 20floors, if need to control more, add 1more ACB-DT20K |

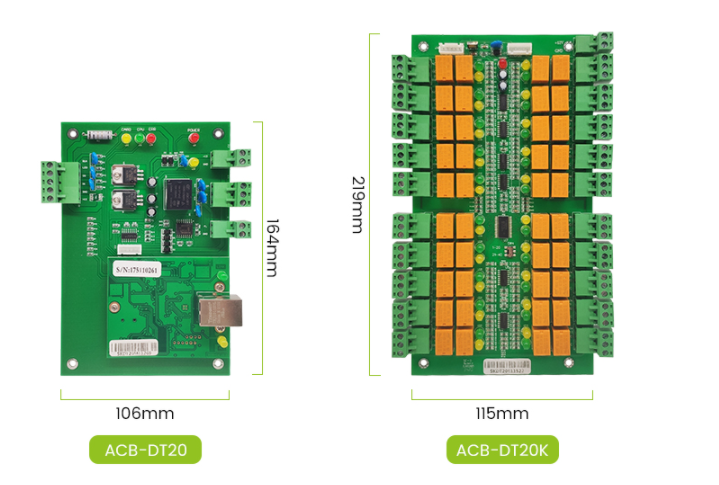

Dimension(L×D×H) | 164x106mm |
Net weight | 0.30Kg |
S4A User Manual_ACB-DT20 Elevator/Locker Access Controller Lift Access Control Panel for Manage 20 Floors
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
