>40-Channel Elevator Controller for Lift or Locker, built-in TCP/IP with free software to manage users.
>Support RFID/Pincode/Face/Finger to access control 20-40lockers built-in TCP/IP with free software
Brand:
S4AItem NO.:

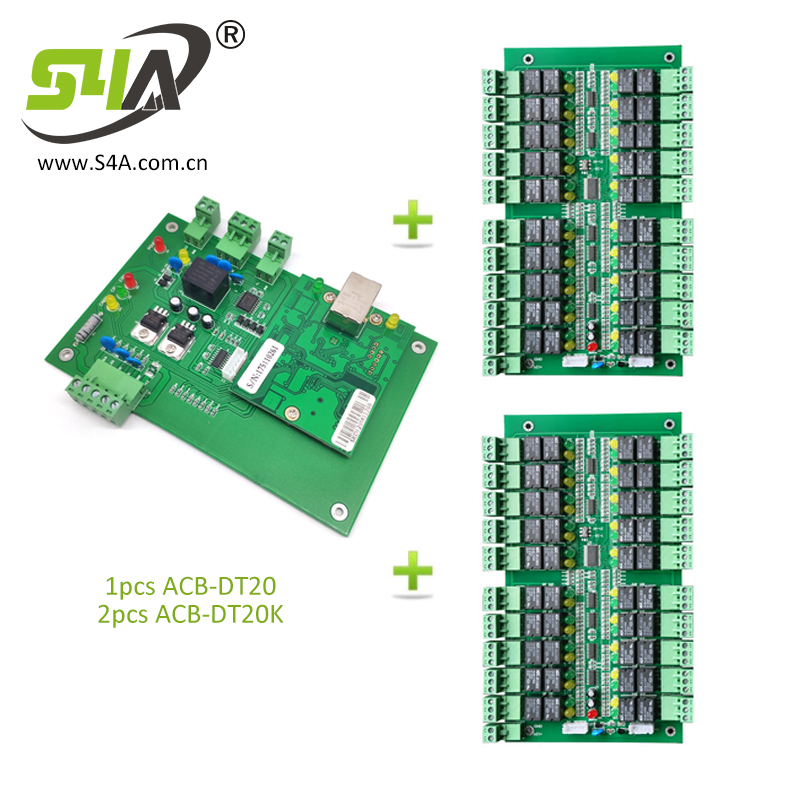

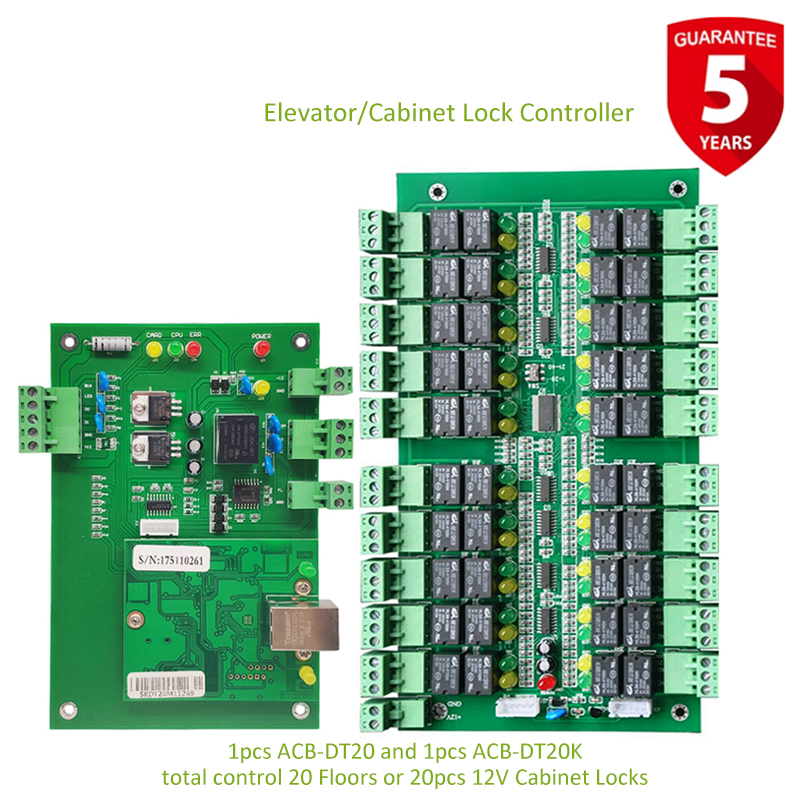

ACB-DT20 & ACB-DT20K40-Channel Elevator Controller for Lift or Locker
Model No.: ACB-DT20 & ACB-DT20K (One Set)
What is Access Control?
Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
Model | ACB-DT20 20-40Floors Elevator Access Control Unit |
Input Format of Reader | Wiegand 26/34bit (All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) |
Q ' ty of users | 20,000 |
Q ' ty of Event Buffers(offline) | 100,000 |
Power Supply | 12V DC 5A |
Communication to PC | TCP/IP 10M/100M self-adaptive |

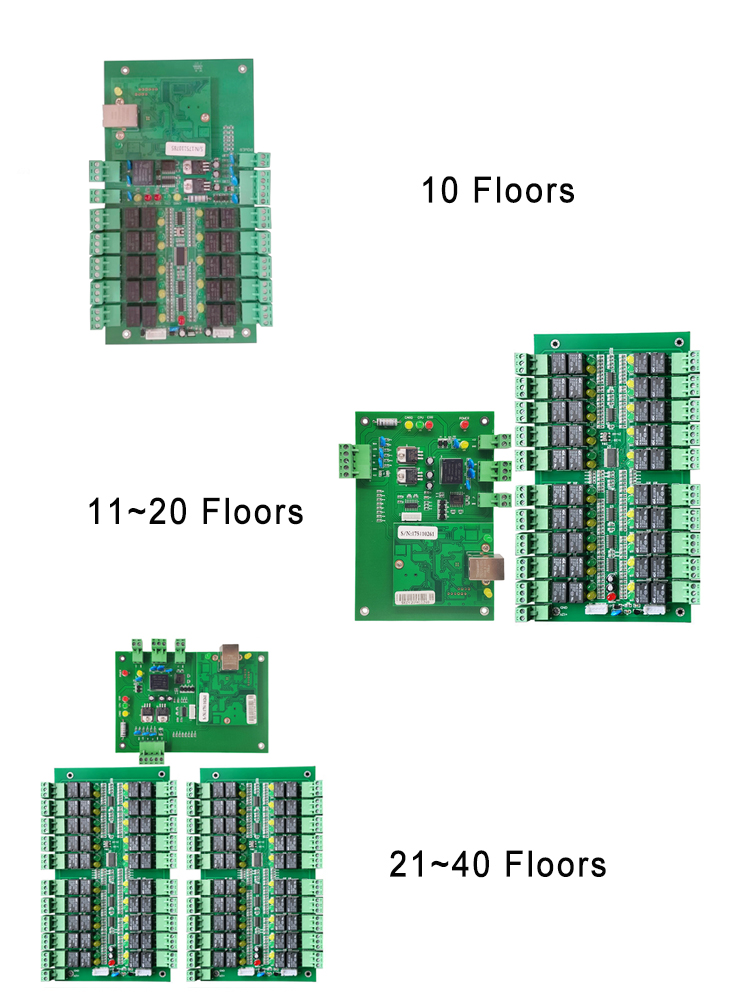

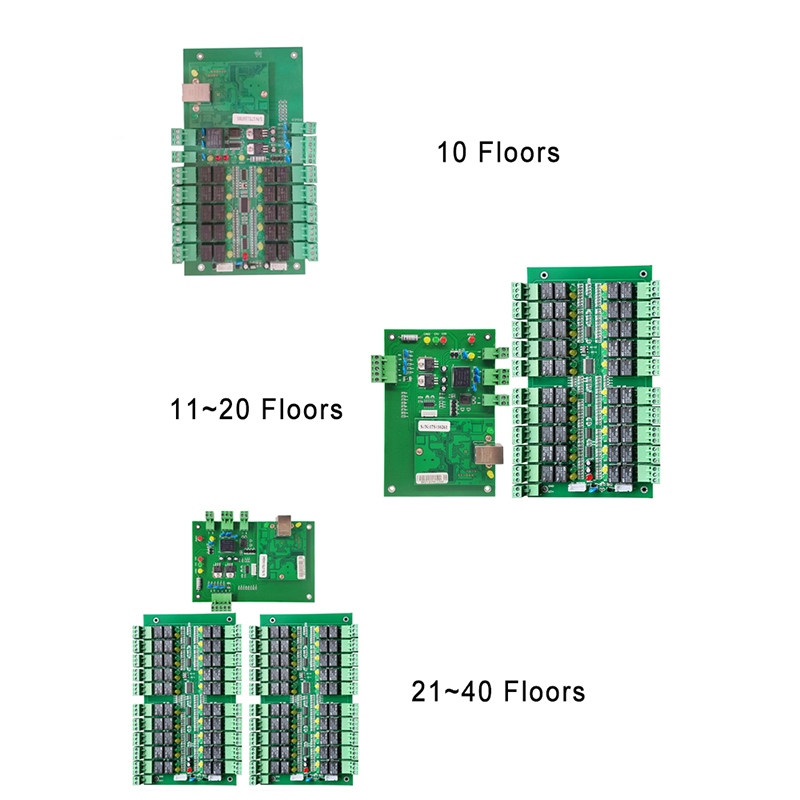

Number of supported floors | 20floors, if need to control more, add 1more ACB-DT20K |

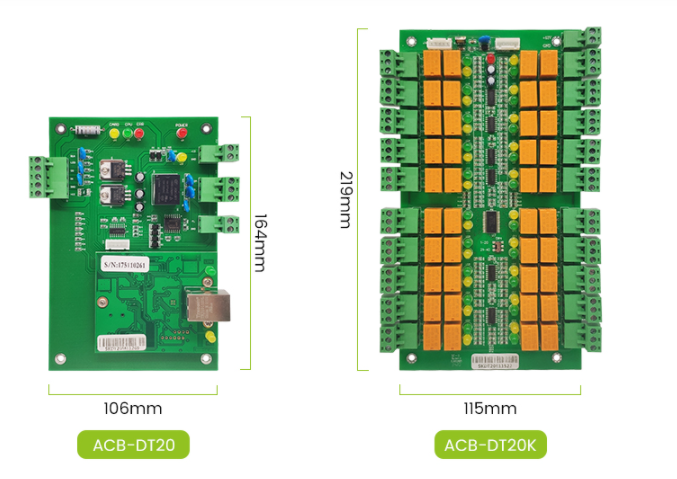

Dimension(L×D×H) | 164x106mm |
Net weight | 1.0KG/set |

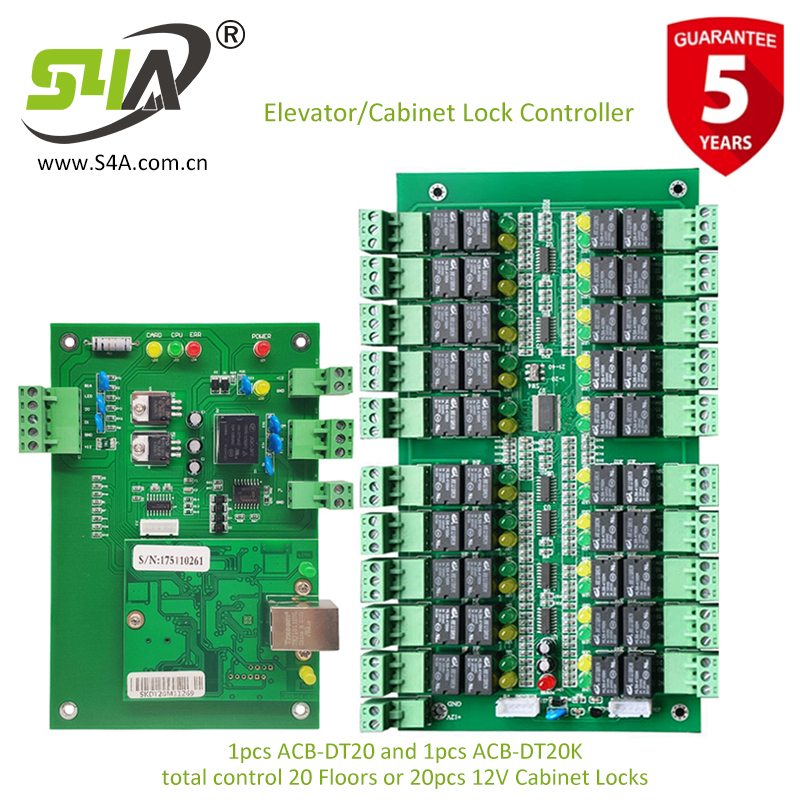

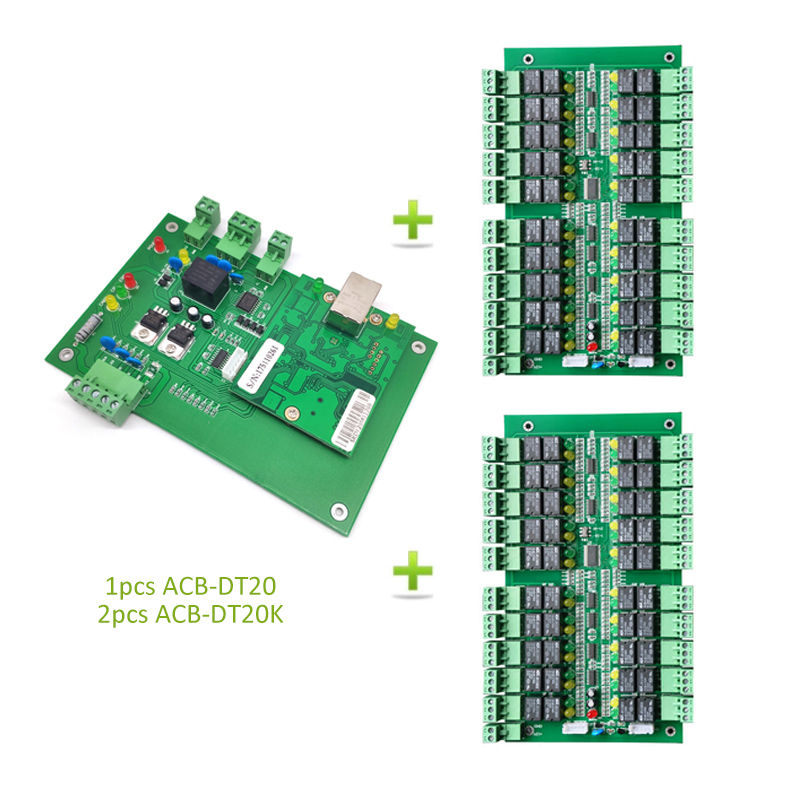

ACB-DT20, ACB-DT20K 40-Channel Elevator Controller for Lift or Locker
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
