K3QW TTLock WiFi QR Code RFID Access Control Reader

Multi-Method Unlocking: Supports QR code scanning, 13.56MHz MF smart cards, digital passwords, and wireless TTLock WiFi App control.

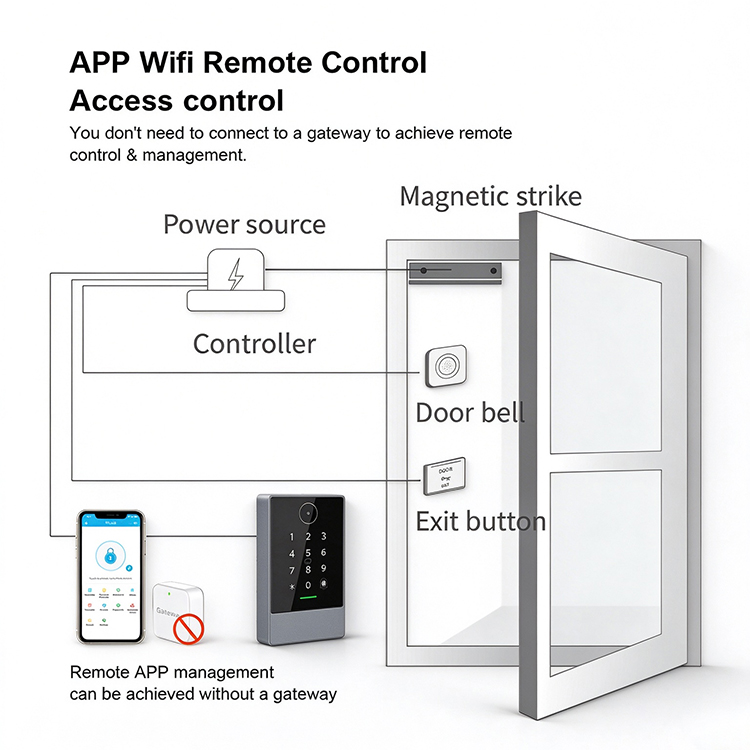

TTLock WiFi Integration: Built-in wireless network capability enables remote app management, real-time log tracking, and digital visitor pass sharing.
High User Capacity: Accommodates up to 2,000 card users and 500 individual password combinations.
IP67 Waterproof Enclosure: Heavy-duty, weatherproof ABS and acrylic construction built to withstand harsh outdoor environments (-20°C to 60°C).
Compact & Sleek Design: Features a slim profile measuring 126 × 80 × 19 mm for clean surface mounting.
  • Brand:

    S4A
  • Item NO.:

    K3QW
  • Specifications

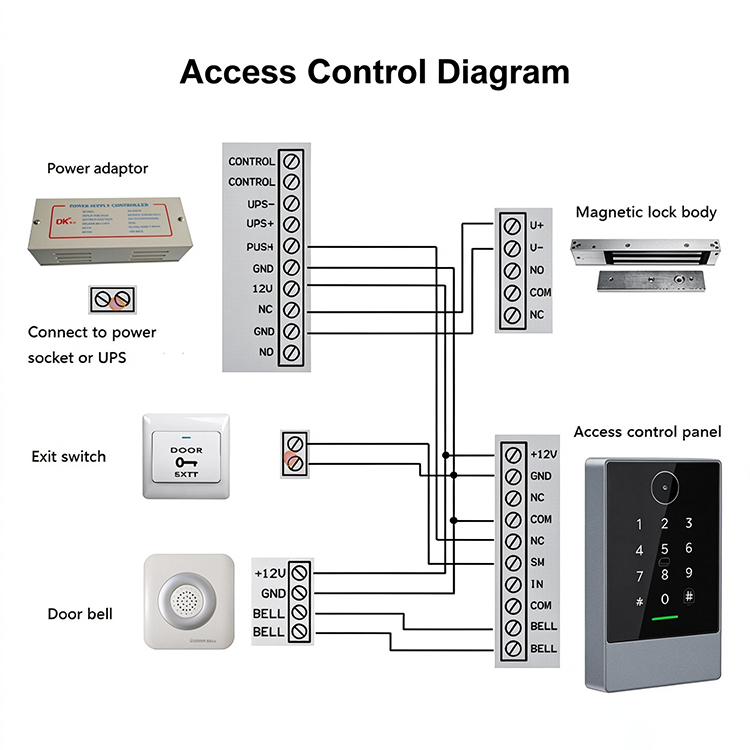

  • Wiring Diagram
  • Package

K3QW TTLock WiFi QR Code RFID Access Control Reader


The K3QW is a high-performance smart access control controller featuring integrated QR code scanning, 13.56MHz MF card reading, passcode entry, and wireless Wi-Fi connectivity via the TTLock App. Designed with an IP67 waterproof ABS and acrylic panel, it supports up to 2,000 cards and 500 passwords, making it ideal for modern smart doors and secure entry management.


Parameter Specification
Model Number K3QW
Product Name QR Code Access Controller with TTLock WiFi App
Supported Card Type 13.56MHz MF Card (Mifare M1)
Card Capacity 2,000 pieces
Password Capacity 500 groups
Fingerprint Sensor Type Semiconductor Fingerprint Head
Communication Method Wireless Network (Wi-Fi)
Mobile App Name TTLock
Operating Voltage DC 12V
Waterproof Rating IP67
Material ABS and Acrylic Panel

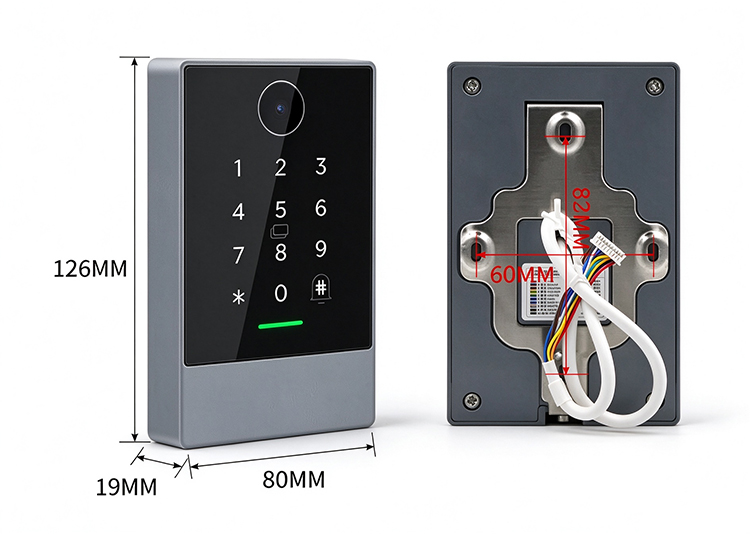

Dimensions 126 × 80 × 19 mm
Operating Temperature -20°C to 60°C
Unlock Methods QR Code, Card, Password, TTLock WiFi App
Net Weight 0.5 kg
Applications Smart Apartments, Office Buildings, Access Gates, Modern Residential Entrances
