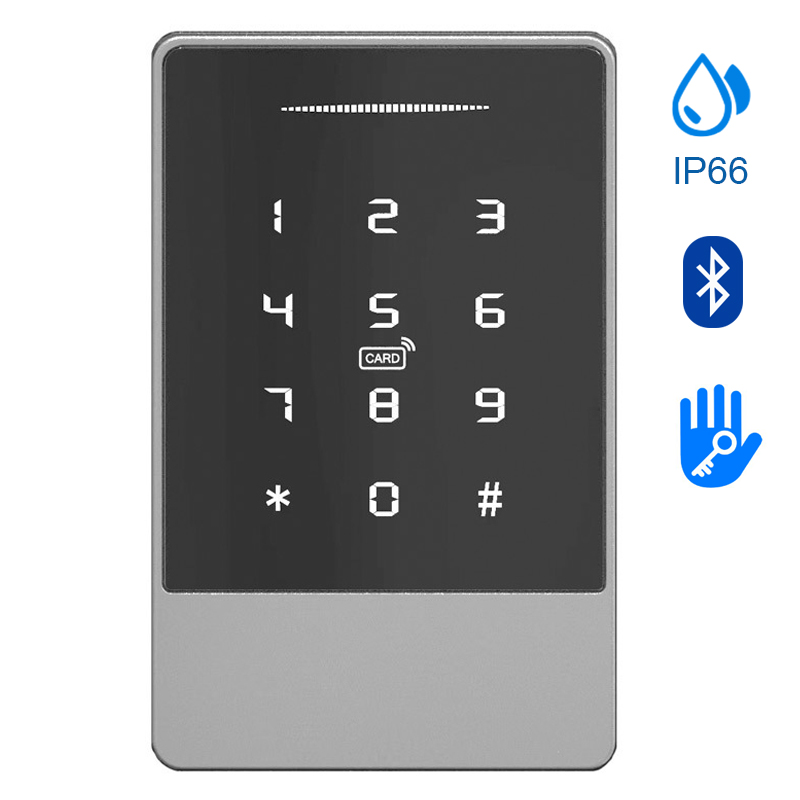

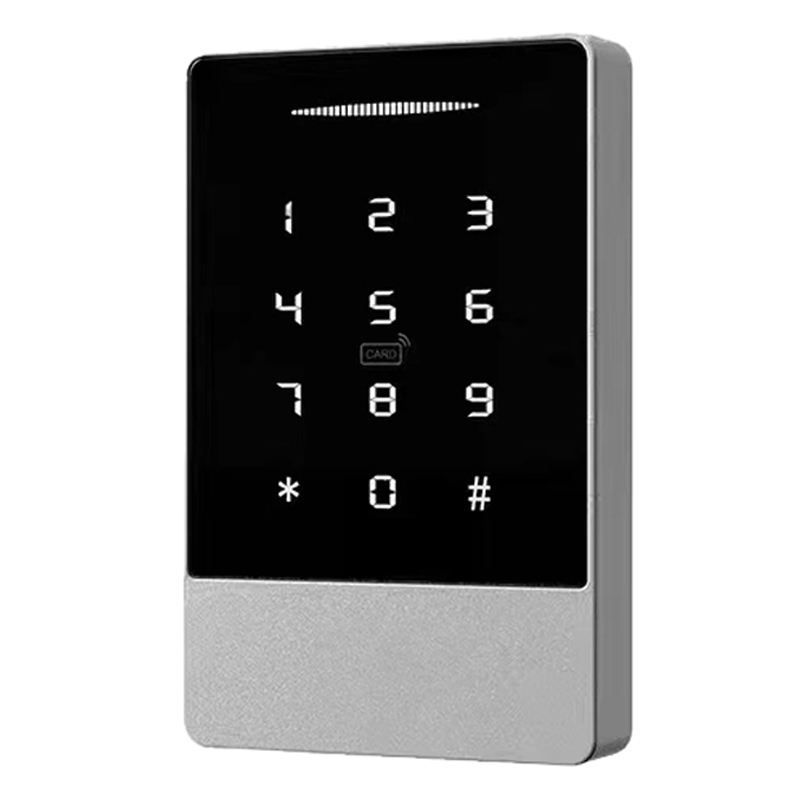

IP66 Intelligent Waterproof Glass Door Access Control Machine TTLOCK Lock Access Control

>Size:79x125x19mm

>Material:Aluminum alloy frame

>Power supply:12V

  • Brand:

    S4A
  • Item NO.:

    K2
  • Specifications

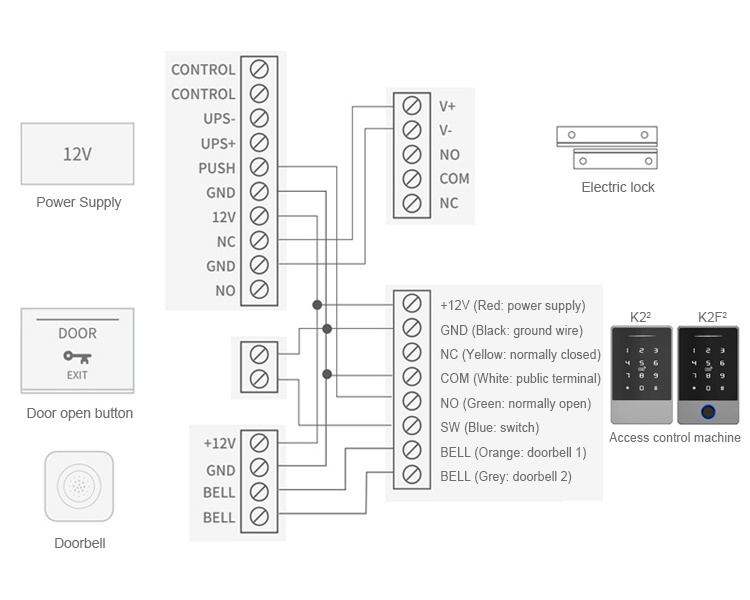

  • Wiring Diagram
  • Package
  • Download

IP66 Intelligent Waterproof Glass Door Access Control Machine TTLOCK Lock Access Control

Model No.:K22


Product number

K2/K2F

size

79x125x19mm

material

Aluminum alloy frame

way of communication

Bluetooth 5.0

support system

Android 4.3/I0S7.0 above

stand-by current

≈15mA

Operating current

≈1A

Power supply

12V

unlock time

≈1.5S

waterproof level

IP66

Card capacity

1000 sheets

Fingerprint capacity

100 (K2F only)


IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

IP66 Intelligent Waterproof TTLOCK Lock Access Control

S4A Datesheet_IP66 Intelligent Waterproof Glass Door Access Control Machine TTLOCK Lock Access Control
