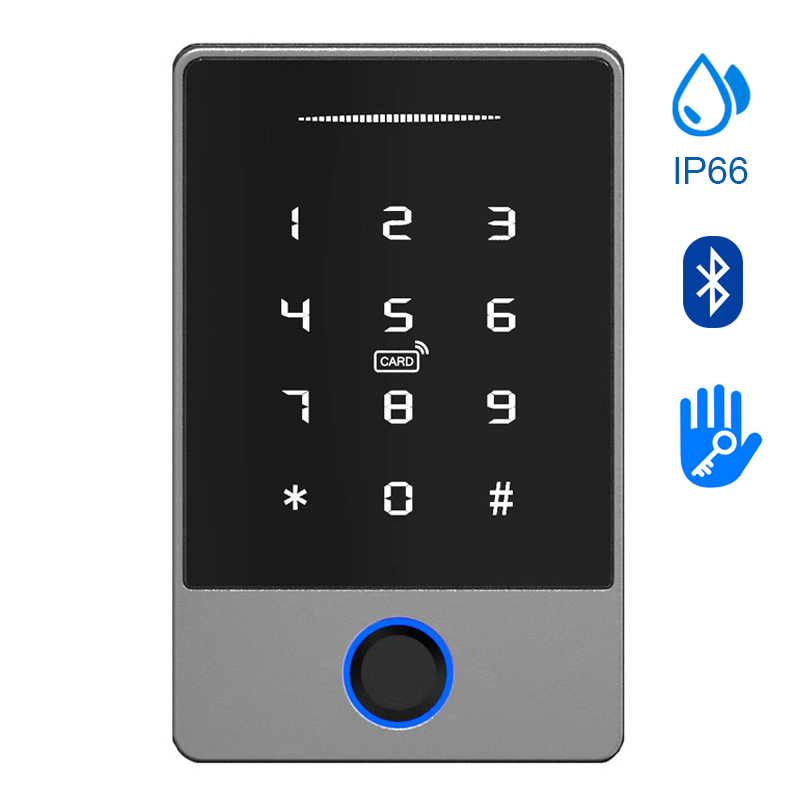

IP66 Glass Door Fingerprint Smart Waterproof Access Control Machine TTLOCK Lock Access Control

>Size:79x125x19mm

>Material:Aluminum alloy frame

>Power supply:12V

  • Brand:

    S4A
  • Item NO.:

    K2F
  • Specifications

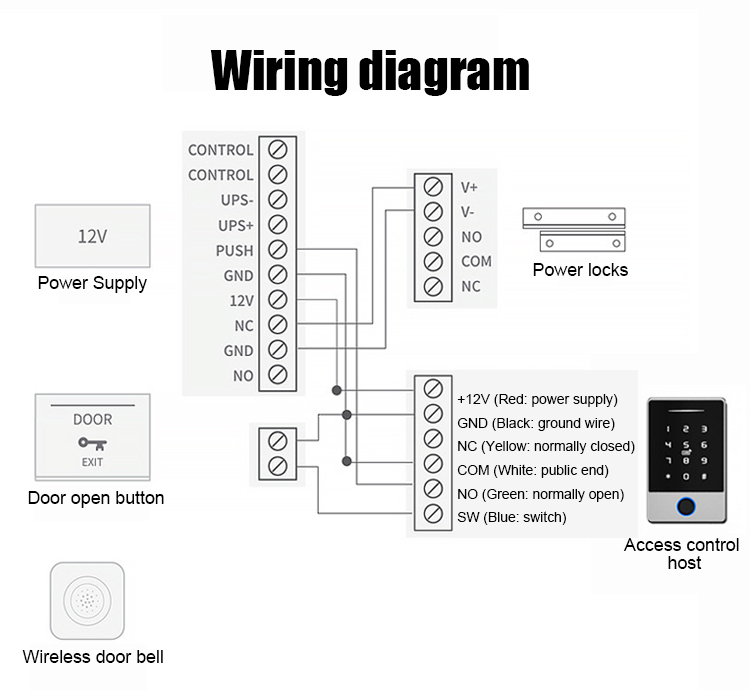

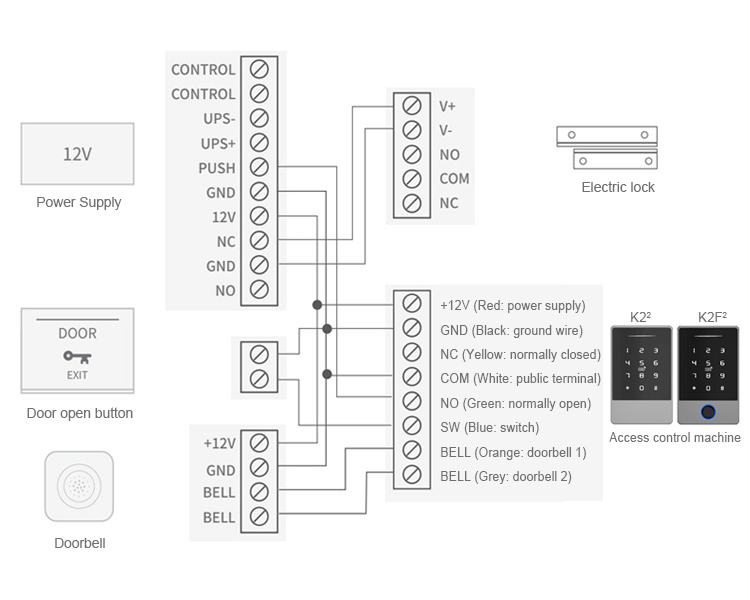

  • Wiring Diagram

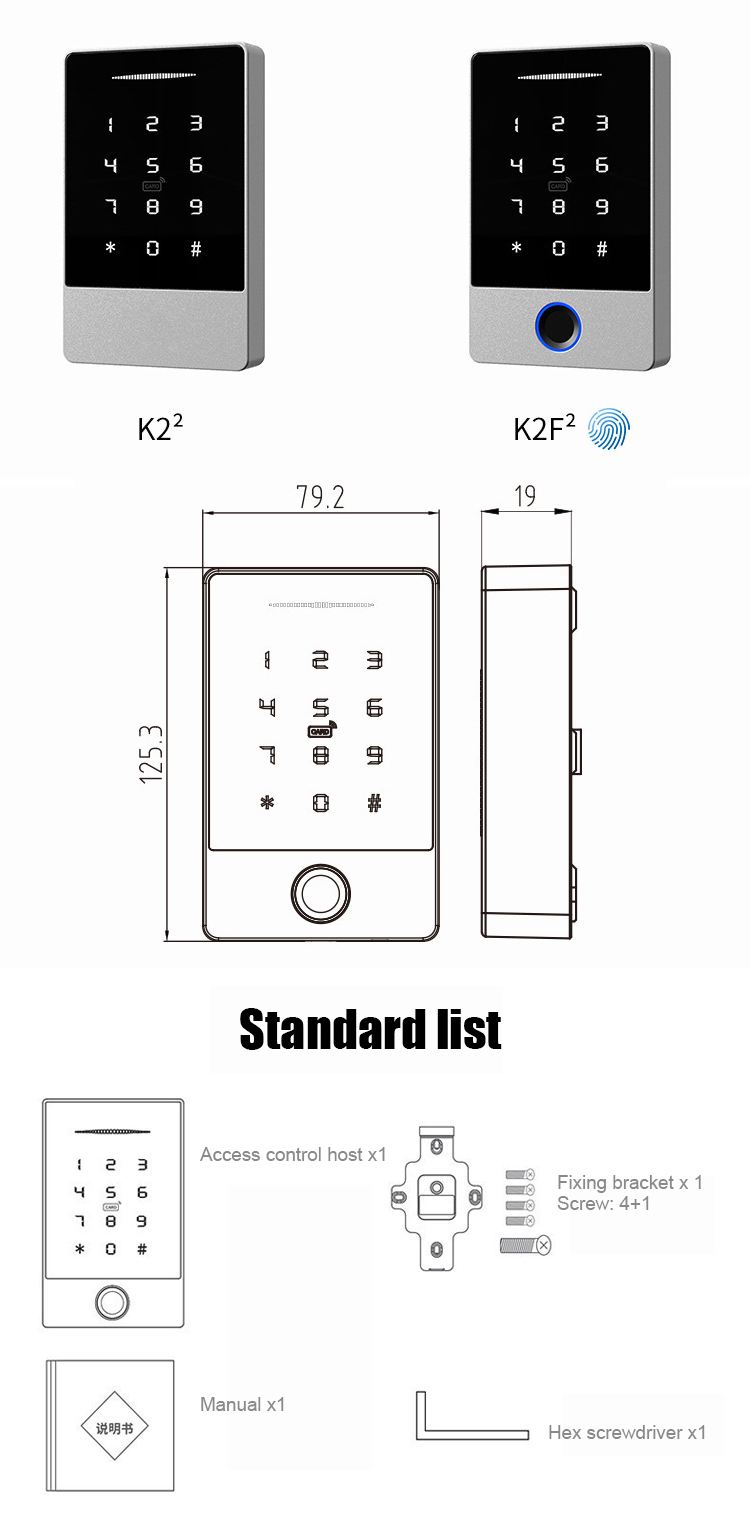

  • Package

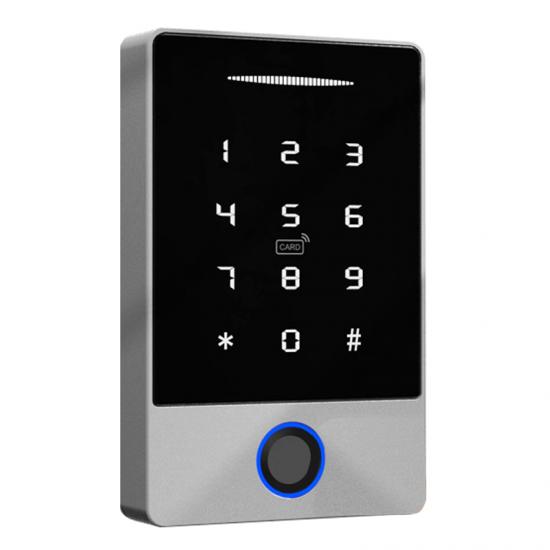

IP66 Glass Door Fingerprint Smart Waterproof Access Control Machine TTLOCK Lock Access Control

Model No.:K2F2


Product number

K2/K2F

size

79x125x19mm

material

Aluminum alloy frame

way of communication

Bluetooth 5.0

support system

Android 4.3/I0S7.0 above

stand-by current

≈15mA

Operating current

≈1A

Power supply

12V

unlock time

≈1.5S

waterproof level

IP66

Card capacity

1000 sheets

Fingerprint capacity

100 (K2F only)

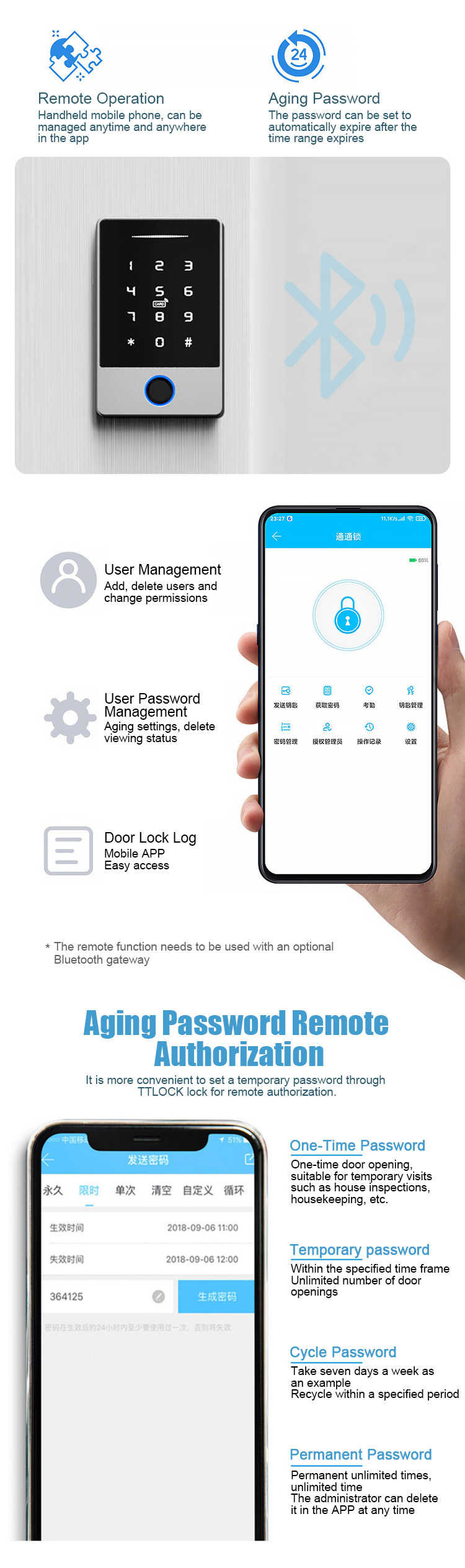

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine

Fingerprint TTLOCK lock intelligent waterproof access control machine
