Brand:
S4AItem NO.:
K3QW| Product Parameter | Parameter Descr1ption |
| S4A Model | K3Q |

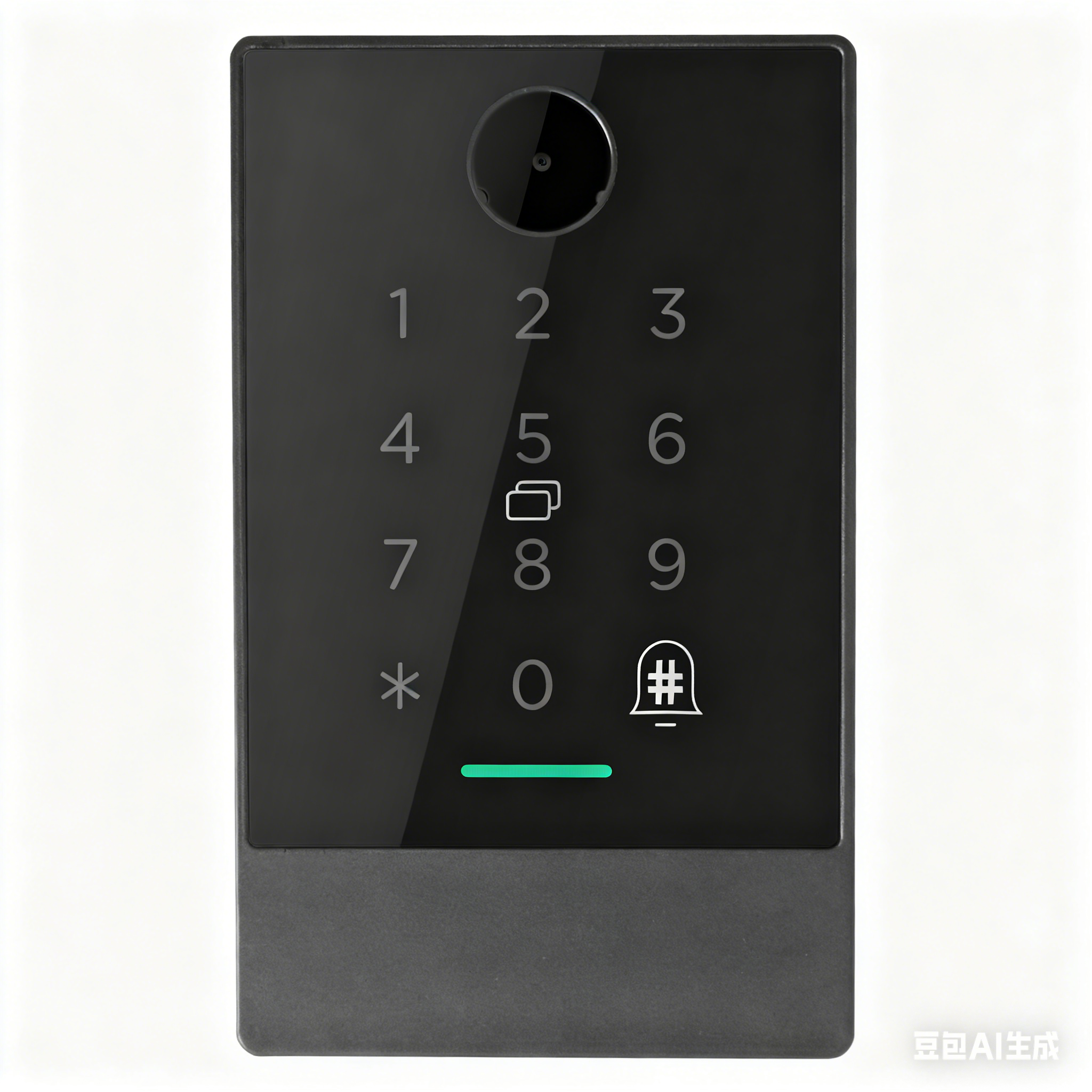

| Product Name | K3Q QR Code TTLock Smart Access Controller |
|
|
|
| Card Capacity | 2000 |
| Password | 500 |
| Number of Logs | 500 |
| Material | ABS /Acrylic Panel |
| Waterproof Level | IP66 |

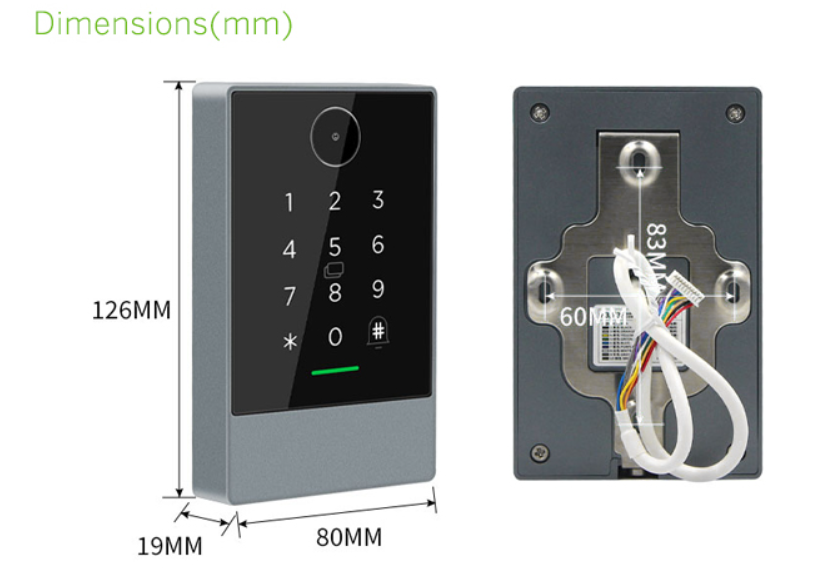

| Dimensions | W80mm x H126mm x T19mm |
| Communication | Bluetooth5.0 |
| Supporting systems | Android 4.3/IOS7.0 above |
| Stand-by current | ≈66mA ( Activate back lighting ) |
| Operating current | ≈1A |
| Power supply | DC12V |
| Unlocking time | ≈1.5S |
|
TTLOCK RFID QR Code Access Control Keypad support Temporary Code Unlock |
||||
|
Model No. |
Quantity/Carton |
Net Weight |
Gross Weight |
Carton Size |
|
K3QW |
40PCS |
11KG |
11.5 KG |
52.5*40.5*31 cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
