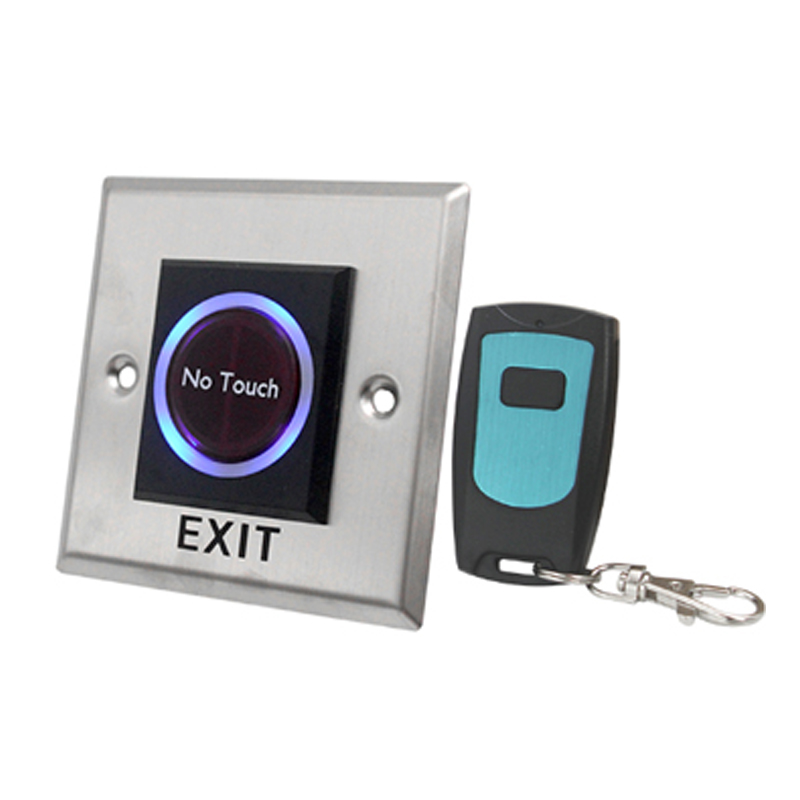

Infrared sensor button integrated machine with remote control

Dimension: 86 X 86 X 35mm

  • Brand:

    S4A
  • Item NO.:

    EB-17-R
  • Specifications
  • Wiring Diagram

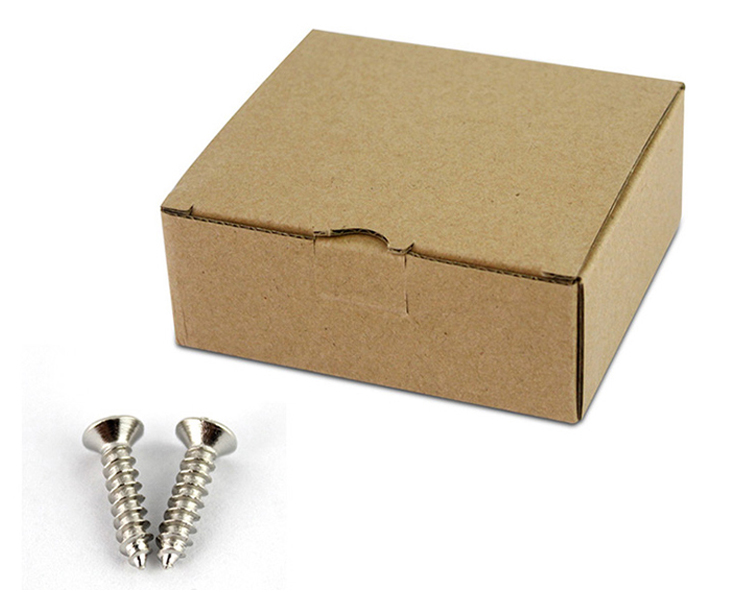

  • Package

Item Name: Infrared sensor button integrated machine with remote control

Model No: EB-17-R

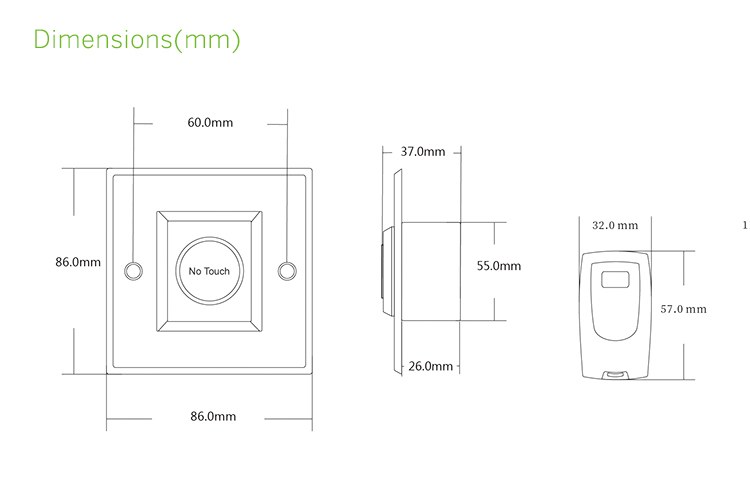

Dimensions

86 X 86 X 35mm

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

+12V GND NO NC COM

Mechanical Life

1000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non- condensing)

Detection range

0.1-10cm

LED Indicator

White LED indicator

Power OFF

Blue LED indicator

Power ON(standby)

Red LED indicator

Power ON(sensation)

Weight

0.25kg

Standard Packing

70pcs


 Infrared sensor button integrated machine with remote control-EB-17-R Infrared sensor button integrated machine with remote control-EB-17-R

 Infrared sensor button integrated machine with remote control-EB-17-R

 Infrared sensor button integrated machine with remote control-EB-17-R




 Infrared sensor button integrated machine with remote control-EB-17-R

 Infrared sensor button integrated machine with remote control-EB-17-R
