Electric Remote Control Infrared Sensor Exit Button

Dimension: 86x86x26mm

  • Brand:

    S4A
  • Item NO.:

    EB-17R4
  • Specifications
  • Wiring Diagram
  • Package

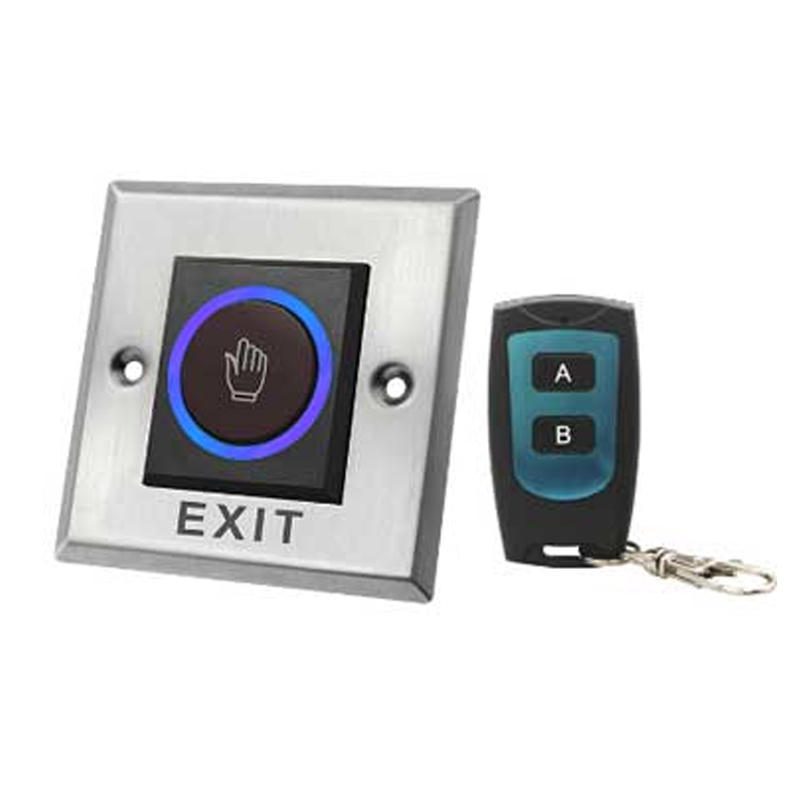

Electric Remote Control Infrared Sensor Exit Button

Model No: EB-17R4


Product ParameterParameter Description
S4A ModelEB-17R4
Product NameInfrared Sensor Exit Button with Remote Control

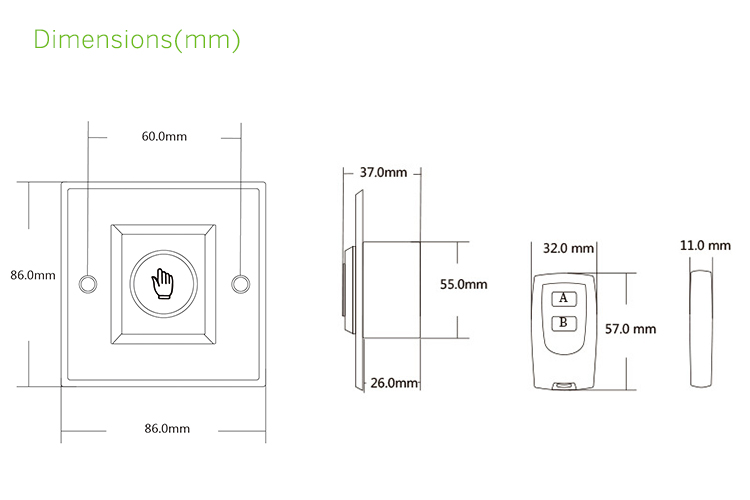

Dimensions86Lx86Wx26H(mm)
InputDC12V-24V
Contact Rating1A@36VDC
Output ContactNO/NC/COM
Mechanical Life500000 tests
Suitable for DoorHollow Door
Operating temp-20℃~+55℃(14-131F)
Suitable Humidity0-95% (relative humidity)
Detection rangeMax 20cm
Delay0 ~ 30s ( Option)
Remote ControlSupport
BuzzerSupport

Unit Weight0.11KG
Standard Package100PCS/carton
Carton Weight11KG
Carton Size51*43*33(cm)

Infrared Sensor Exit Button

Infrared Sensor Exit Button

Infrared Sensor Exit Button



Infrared Sensor Exit Button

Infrared Sensor Exit Button
