Door Exit Button Stainless Steel DC12V Infrared Sensor

>Dimensions:115Lx70Wx26H(mm)

>Input:DC12V-24V

>Contact Rating:1A@36VDC

  • Brand:

    S4A
  • Item NO.:

    EB-16R2
  • Specifications

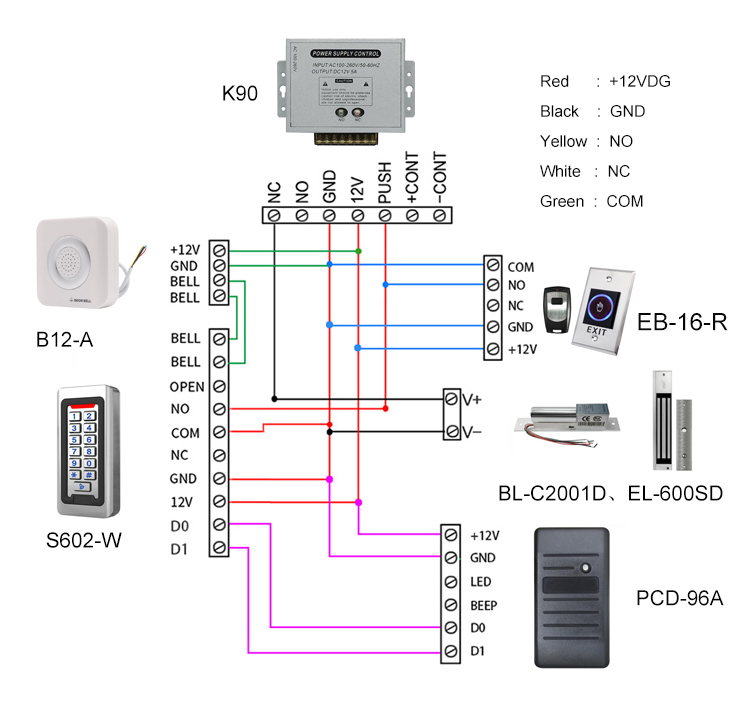

  • Wiring Diagram

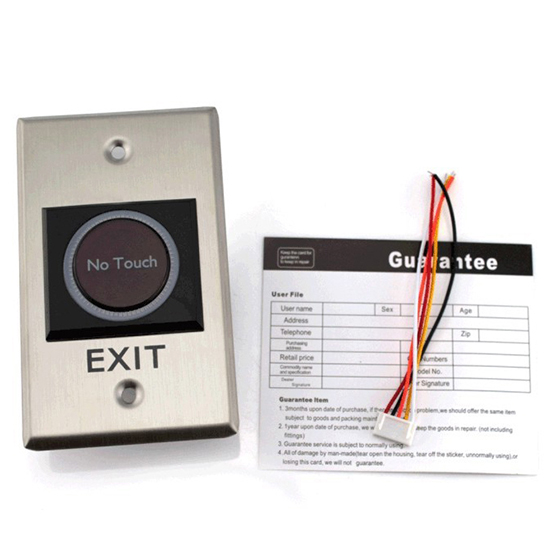

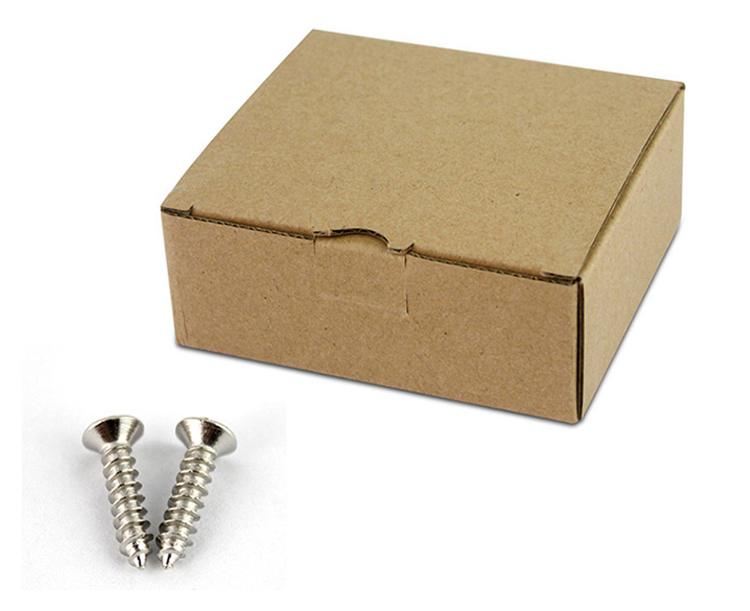

  • Package

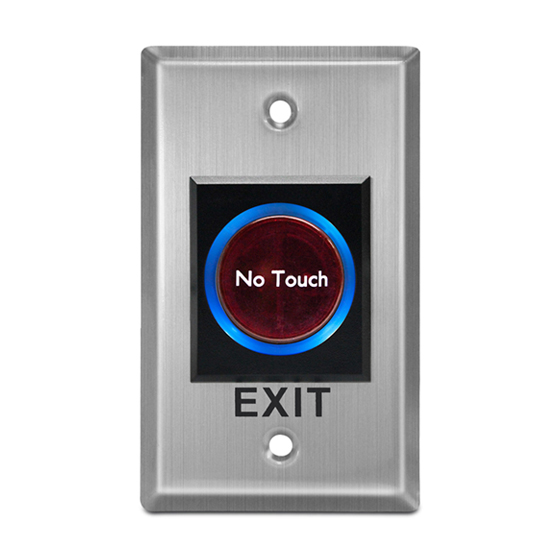

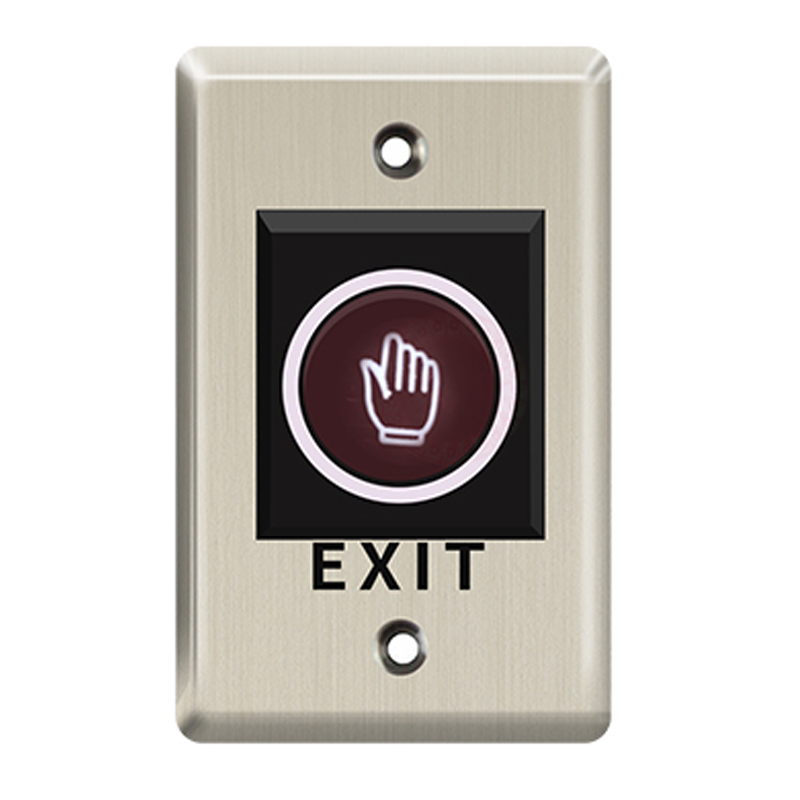

Door Exit Button Stainless Steel DC12V Infrared Sensor

Model No: EB-16R2


Product ParameterParameter Description
S4A ModelEB-16R2

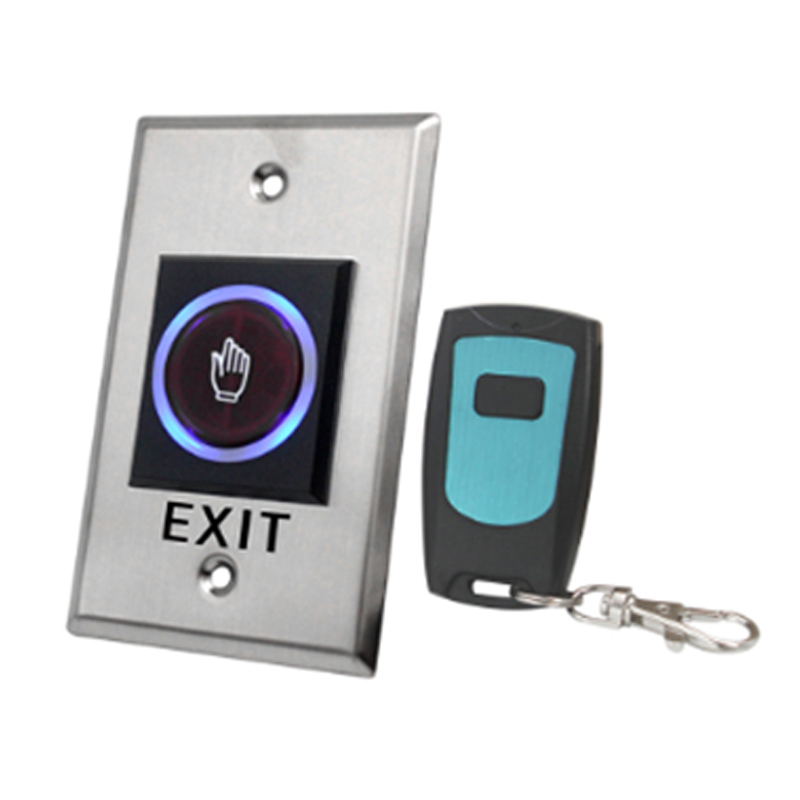

Product NameInfrared Sensor Exit Button with Remote Control

Dimensions115Lx70Wx26H(mm)
InputDC12V-24V
Contact Rating1A@36VDC
Output ContactNO/NC/COM
Mechanical Life500000 tests
Suitable for DoorHollow Door
Operating temp-20℃~+55℃(14-131F)
Suitable Humidity0-95% (relative humidity)
Detection rangeMax 20cm
Delay0 ~ 30s ( Option)
Remote ControlSupport
BuzzerSupport

Unit Weight0.11KG
Standard Package100PCS/carton
Carton Weight11KG
Carton Size51*43*33(cm)

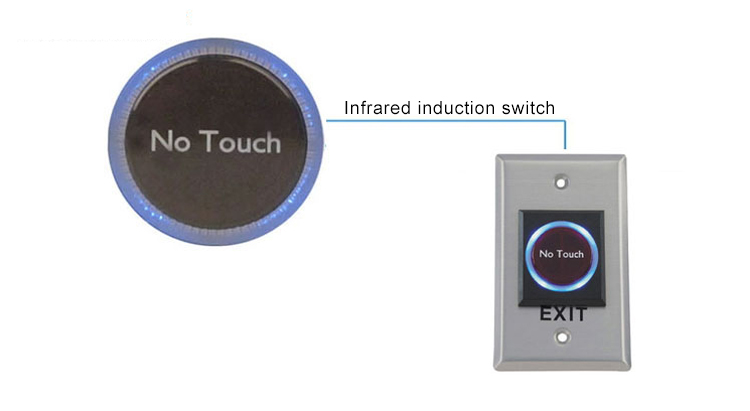

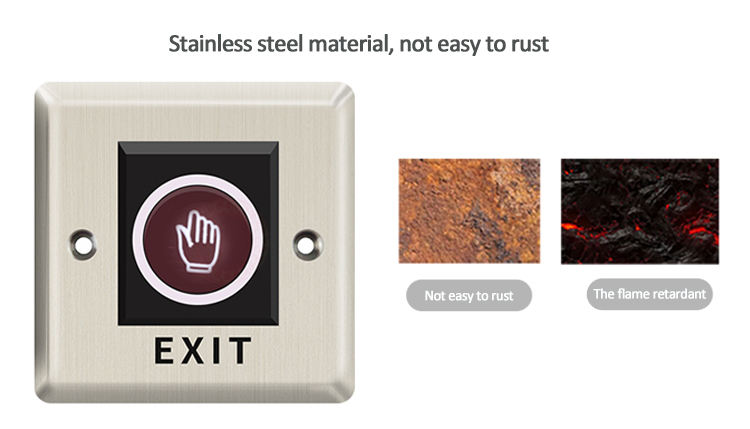

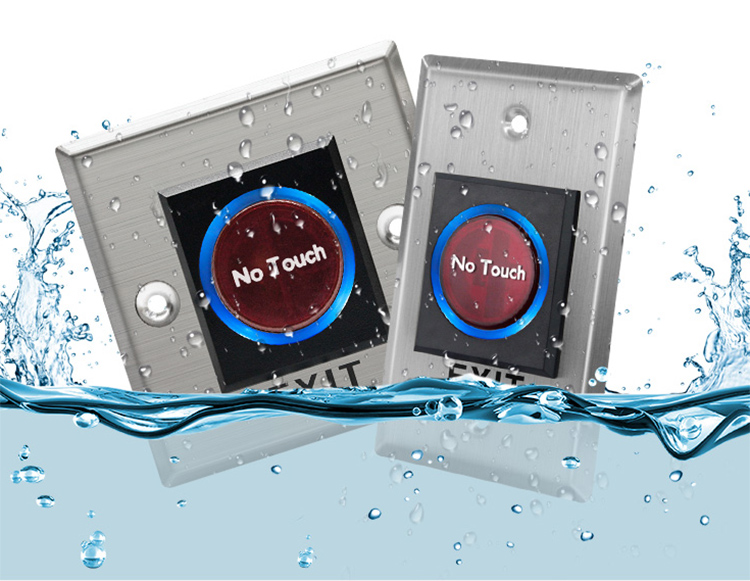

Stainless Steel DC12V Infrared Sensor

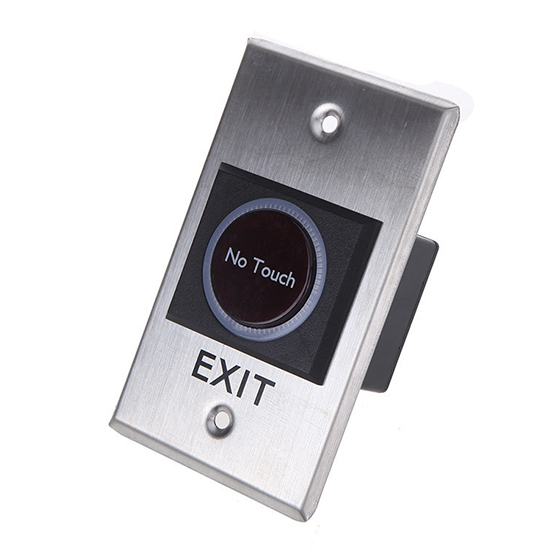

Stainless Steel DC12V Infrared Sensor

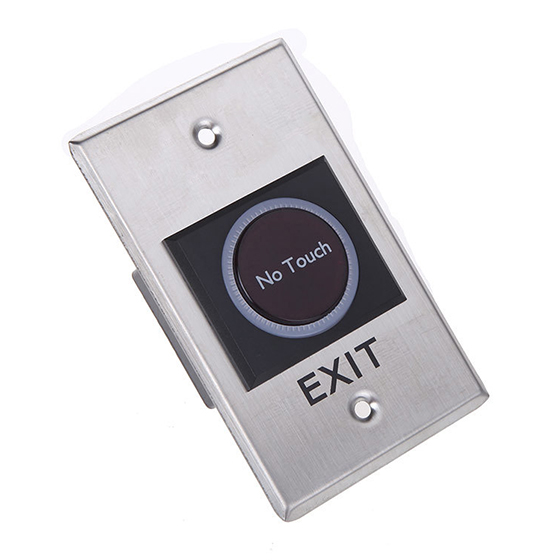

Stainless Steel DC12V Infrared Sensor



Stainless Steel DC12V Infrared Sensor

Stainless Steel DC12V Infrared Sensor
