> Wave length: 940nm
> Operating Voltage: 12-24V DC

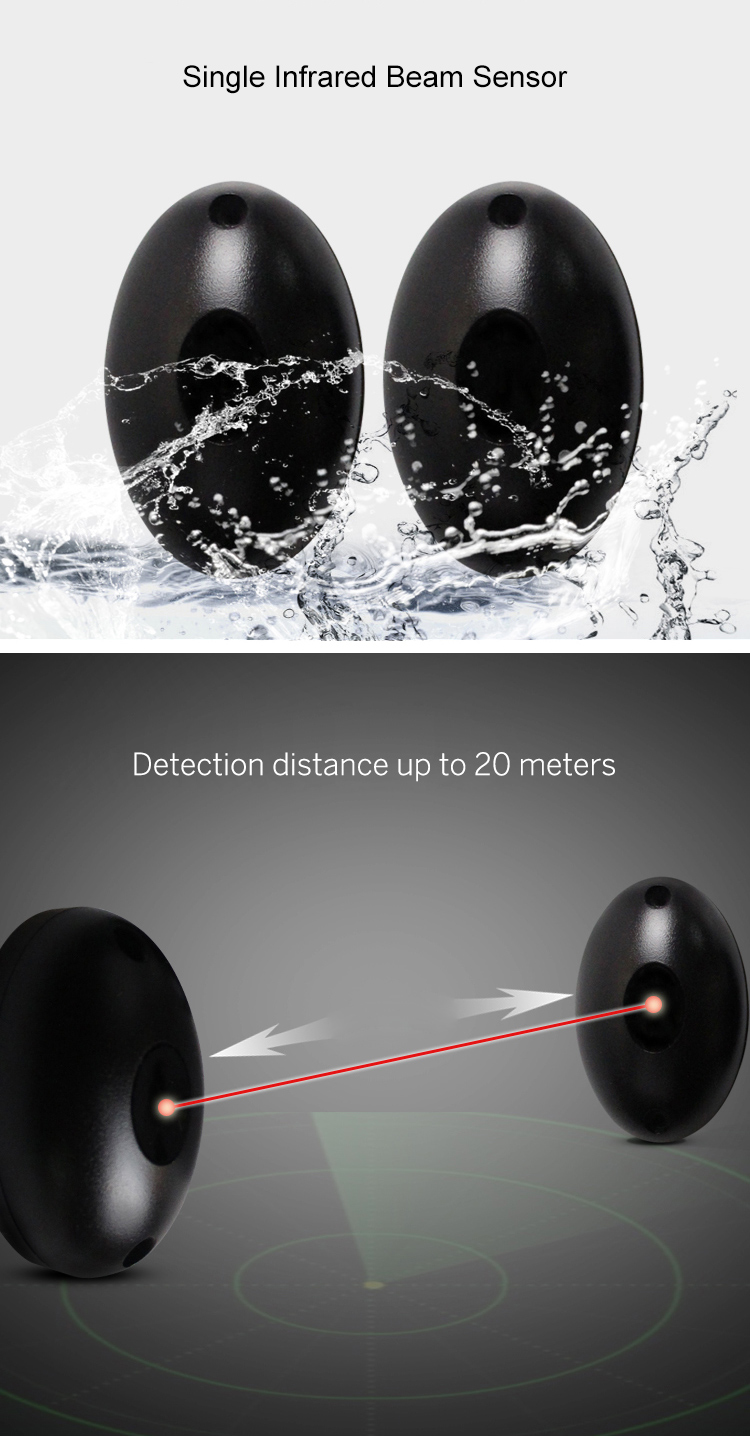

> Detection distance: ≤20M
> Frequency: 1.92KHz
> Waterproof IP65
Brand:
S4AItem NO.:
BS-20Waterproof IP65 Single Infrared Beam Sensor
Model No.: BS-20
Features
> Anti-glare up to 50,000LUX, built-in automatic adjustment of glare filtration system, to avoid the impact of light or car lighting
> All-weather sealed rain (fog), dust (insects), and other integrated structure designed to work in harsh environments
> Detector automatically increases sensitivity when fog or bad weather conditions (AGC circuit)
> High level of anti-RFI / EMI capability
> Unique digital filter circuit design
> High-power transmitter devices, 90% sensitivity margin High-power infrared receiver on the tube, low-power processing technology Anti-lightning circuit design
> With rain cover design

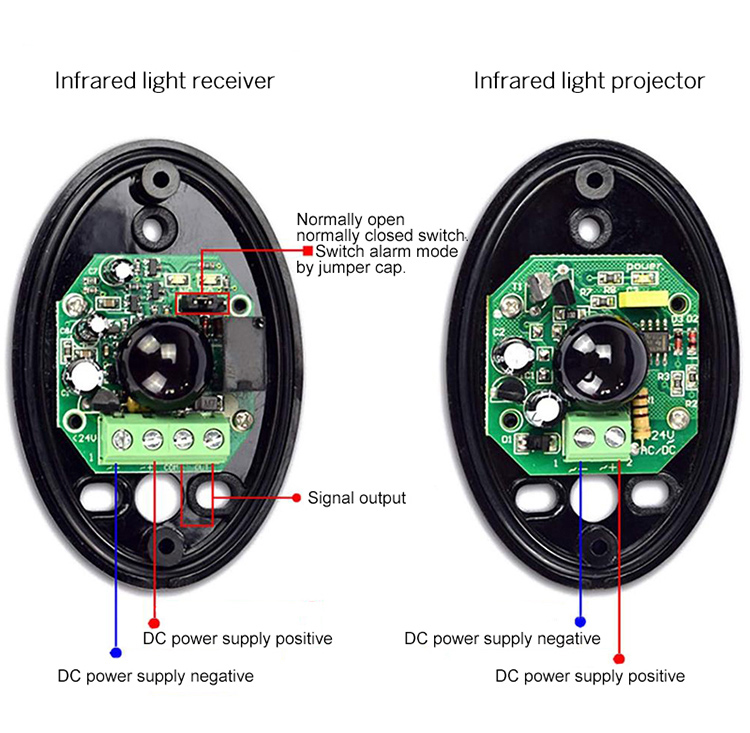

> C-type relay output
> Adjustable beam interruption period to make it more flexible and adaptable
> Professional anti-interference optical cover
Product Name | Beam sensor |
Color | Black |
Wavelength | 940nm |
Operating Voltage | 12-24V DC |
Detection distance | ≤20M |
Frequency | 1.92KHz |
Operating Temperature | -25℃ ~ 55℃ |
Dimensions | 76x49.2x21.6mm |
Infrared Photocell Beam Sensor, Waterproof Detector Alarm, for Access Control System | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
BS-20 | 100 PCS | 11.5 KG | 11.75 KG | 49X28X45 CM |
S4A Datesheet_Waterproof IP65 Single Infrared Beam Sensor
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
