>Door width:1500mm
>Door weight:300kg
>Automatic opening Angle:90°- 150°/s
>Turn on hold time:1~30 seconds/s
>Openingspeed:3~6 seconds/s Adjustable
Brand:
S4AItem NO.:

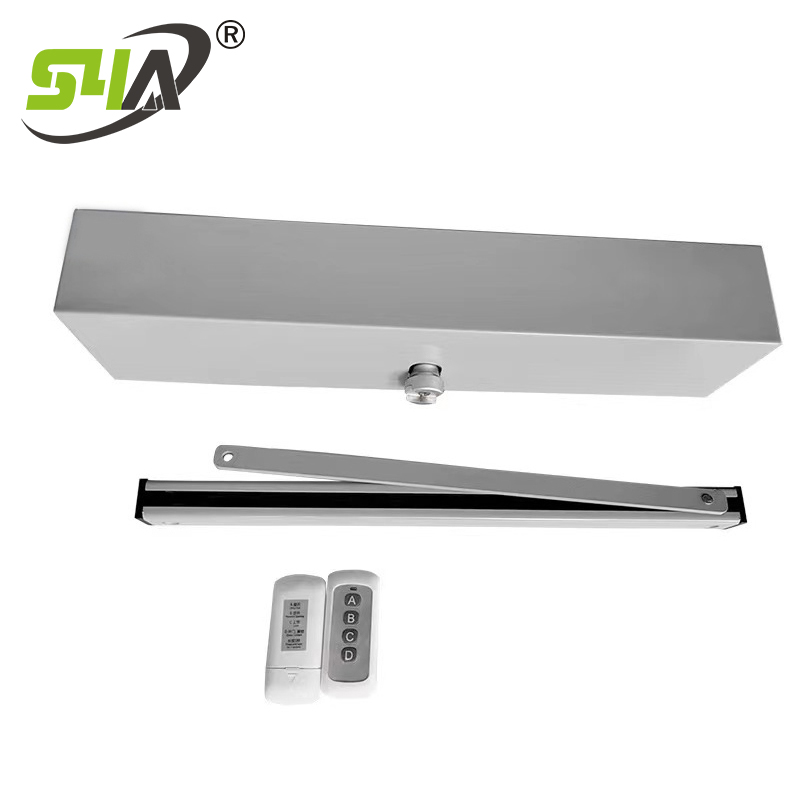

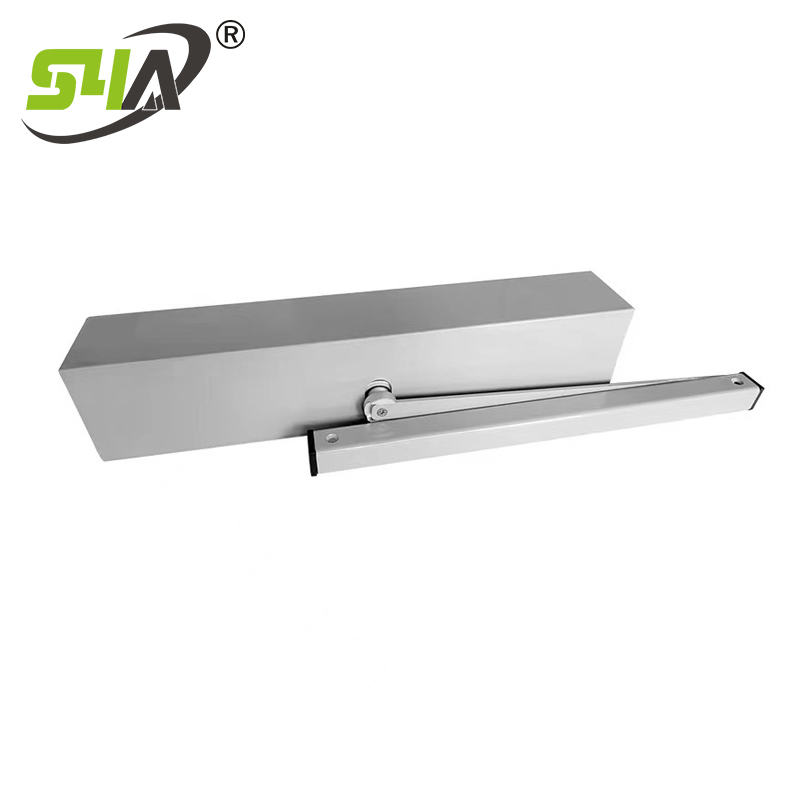

ED300Push Button Swing Door Opener with Remote Control Swing Opening Heavy Duty Door Operator with 300KG holding force
Model No.: ED300
Product Features
A.Adopting encoder brushless motor worm gear technology, ultra-quiet operation
B. Multi-function interface, full-featured remote control technology with double-door interlocking, position feedback, and other functions
C. Push-to-open function, safety protection function for closing the door in the reverse direction
D. It can be used with manual remote control, sensors, buttons, access control, etc
E. The opening force and closing check setting of the door can be adjusted to better adapt to the weight and position of the door
F. Its ultra-quiet operation mode is especially suitable for noise-sensitive occasions (operating room doors, hospital access doors, The doors of senior consulting rooms, public offices, secret institutions, business hotels, senior apartments, leaders' offices, and so on.
G. Can be used as fire linkage control for normally open or normally closed doors, with fire fee-dback signal
Applicable swing doors | Swing door of various materials |
Door width | 1500mm |
Door weight | 300kg |
Automatic opening Angle | 90°- 150°/s |
Turn on-hold time | 1~30 seconds/s |
Opening speed | 3~6 seconds/s Adjustable |
closing speed | 3~6 seconds/s Adjustable |
Automatic overload protection | No |
Intelligent obstacle protection | Have |
Remote control function | Full-featured password remote control |
Alarm in case of obstacle | Have |
Intelligent overheat protection | Have |
Closing buffer function | Have |
Control the electric lock function | adjustable |
Door lock force adjustment function | Have |
Door opening buffer function | Have |
power supply | Ac110-220V |
Input power Static/Maximum | 65W |
Main engine dimensions | 450X85X100mm |
Push Button Swing Door Opener with Remote Control Swing Opening Heavy Duty Door Operator with 300KG holding force | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ED300 | 2PCS | 16.65KG | 17KG | 27x56x25cm |
S4A Datesheet_Push Button Swing Door Opener with Remote Control Swing Opening Heavy Duty Door Operator with 300KG holding force
