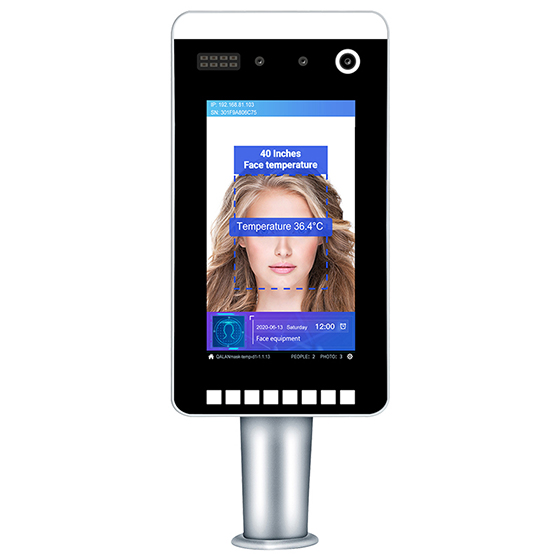

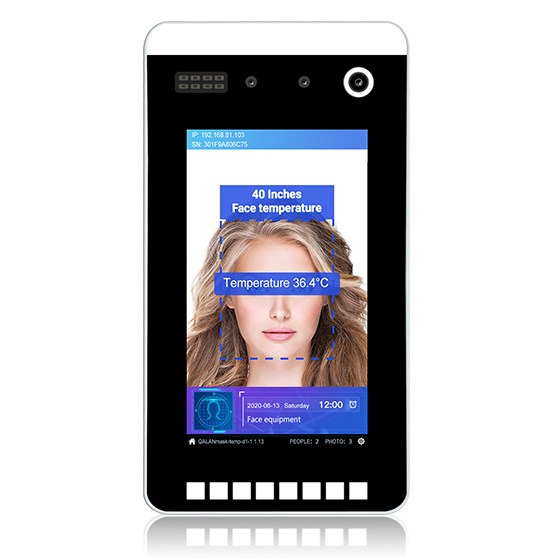

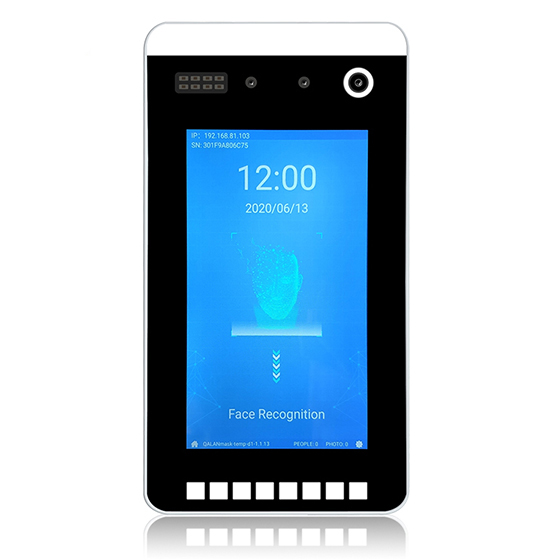

Face Recognition Temperature Measurement System-access Control Infrared Temperature Scanner Thermometer Attendance All-in-one Controller

> Support Access Control & Time Attendance

> Built-in Infrared camera

> Abnormal temperature Alarm

> Detect Distance: 0.3m~0.5m

  • Brand:

    S4A
  • Item NO.:

    FTZN-001
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Face Recognition Temperature Measurement System-access Control Infrared Temperature Scanner Thermometer Attendance All-in-one Controller

Model No.: FTZN-001


Application scenario

Suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public service and management projects, and other places where face access control is required.


Product Features

1. Support camera to capture the face to activate a device;

2. Human body temperature detection using thermal imaging; with access control attendance function;

3. Automatic alarm when human body temperature is higher than 37.3 ℃ (customizable temperature value);

4. Using RGB and living body dynamic binocular camera;

5. Supports serial port, Wiegand 26, 34 input and output;

6. Using video stream-based dynamic face detection, tracking recognition algorithm;

7. Support device local storage of 10,000 face libraries;

8. When the face database is 3,000, the misrecognition rate is 3 in 10,000, 1: N recognition accuracy rate is 99.7%;

9. Fast recognition speed: (a) face tracking and detection takes about 20ms, (b) face feature extraction takes about 200ms, (c) face comparison takes about 0.2ms(1000 people database, multiple identification to get the average), 0.5ms(10,000 face database,multiple identification to get the average);

10. Binocular with infrared fill light camera;

11. Support live photo saving during face recognition or stranger detection;

12. Support HTTP Interface connection;

13. Support public network and local area network deployment;

14. Support stranger compared with ID card function;

15. Provide SDK development kits to support docking with major enterprises and institutions (docking);

Precautions for use: this temperature measuring product can only be used indoors, and the ambient temperature is between 10°C and 30°C. It cannot be used outdoors or under sunlight.

This product is not used as medical equipment!


Screen

Size

7 inch, LCD

Brightness

500 LU

Resolution

1024*600 HD screen

Camera

Resolution

200W*200W

Camera quantity

2

Type

RGB camera, living body dynamic binocular camera, the thermal imaging camera

Aperture

F2.0

Focal length

6mm

White balance

Automatic

Wide dynamic

Support

Vertical wide angle

52°

Horizontal angle

29°

Core parameters

CPU

4 cores, 1.8GHz

Device interface

2GB memory, 8GB storage

Interface

Audio

1 audio output (line out)

Video

HDMI2.0 Type-A interface 1

Serial communication interface

1 RS232 interface

Relay output

1 relay interface

Wigan output

1 Wiegand output interface supports Wiegand 26 and 34

Wigan input

1 Wiegand output interface supports Wiegand 26 and 34

Network Interface

1 RJ45 10M / 100M adaptive Ethernet port, WIFI

Features

Face Detection

Supports detection and tracking of 5 people at the same time

1:N face recognition

Under the false recognition rate is 3 in 10,000, the recognition accuracy rate is 99.7%

Stranger detection

Support

Identify distance configuration

Support

Living body detection

Support

UI interface configuration

Support

Remote device upgrade

Support

Deployment method

Support use the  public network and local area network

Stranger compared with ID card

Support (Purchase ID card reader separately)

Human temperature detection

Human temperature

Support

Temperature detection distance

<1m

Temperature measurement accuracy

≤ ±0.5℃

Temperature measurement range

30℃~42.5℃

Thermal imaging field

Support

Visitors' temperature is normal then released directly

Support

The body temperature alarm value can be set

Support

Body temperature over temperature alarm

Support

General parameters

Protection class

IP42, certain dust, and water resistance

Power supply

DC12V (±10%)

Operating temperature

-10℃~60℃ (Optional thermostat))

Working humidity

10%~90%

Power consumption

10W MAX

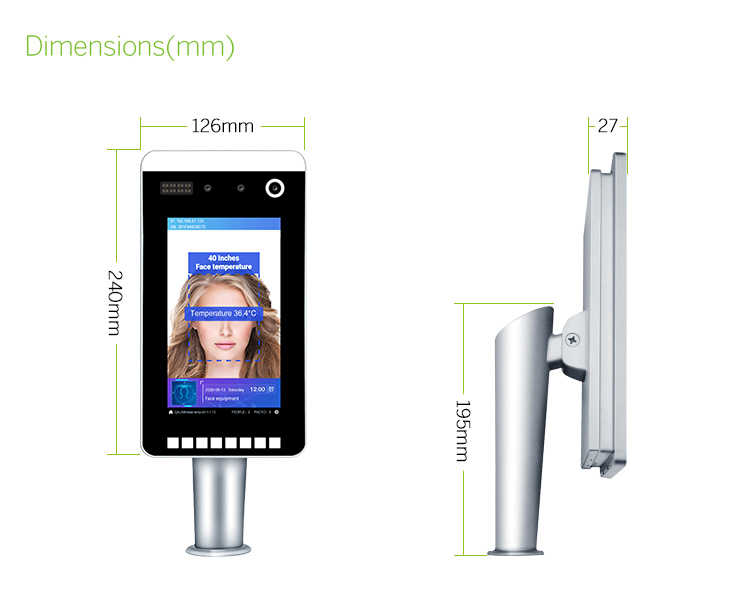

Dimensions

L240 x W126 x H27 (mm)

Weight

≈2kg


Face Recognition Temperature Measurement System



Dynamic Face Recognition Access Control with Mask and Multi Language Support

Model No.

Quantity/Carton

Net Weight/KG

Gross Weight/KG

Carton Size

FTZN-001

10 pcs

19KG

25.8KG

79.5x 43x37.8cm


Face Recognition Temperature Measurement SystemFace Recognition Temperature Measurement System

S4A FTZN-001 Use Manual_Face Recognition Temperature Measurement System-access Control Infrared Temperature Scanner Thermometer Attendance All-in-one Controller
