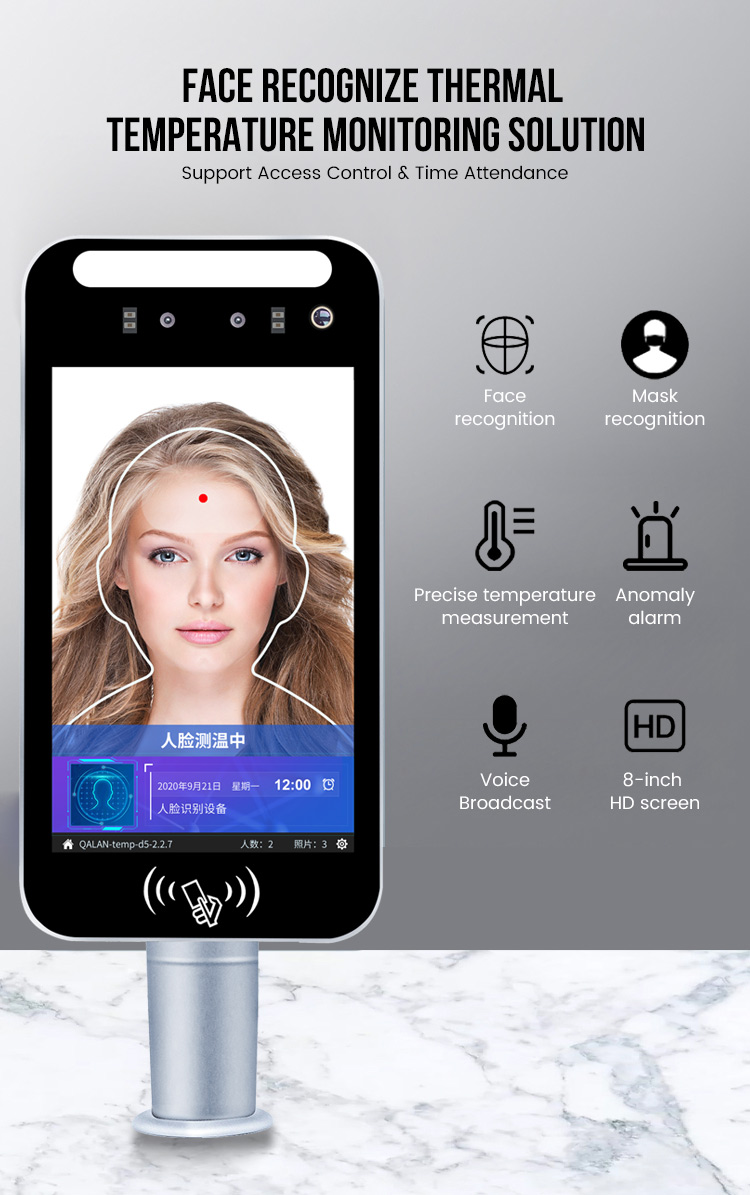

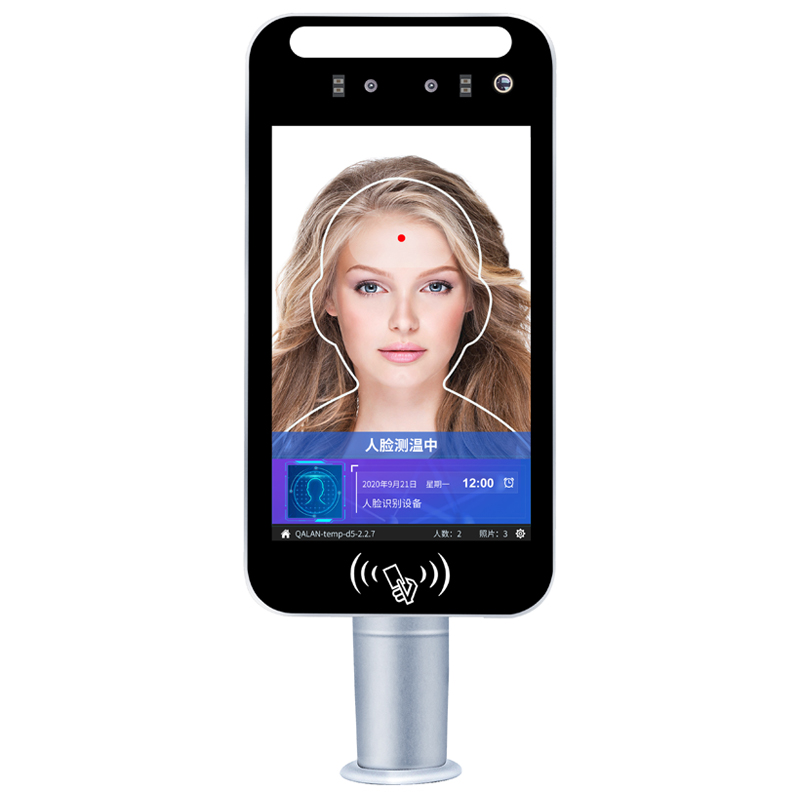

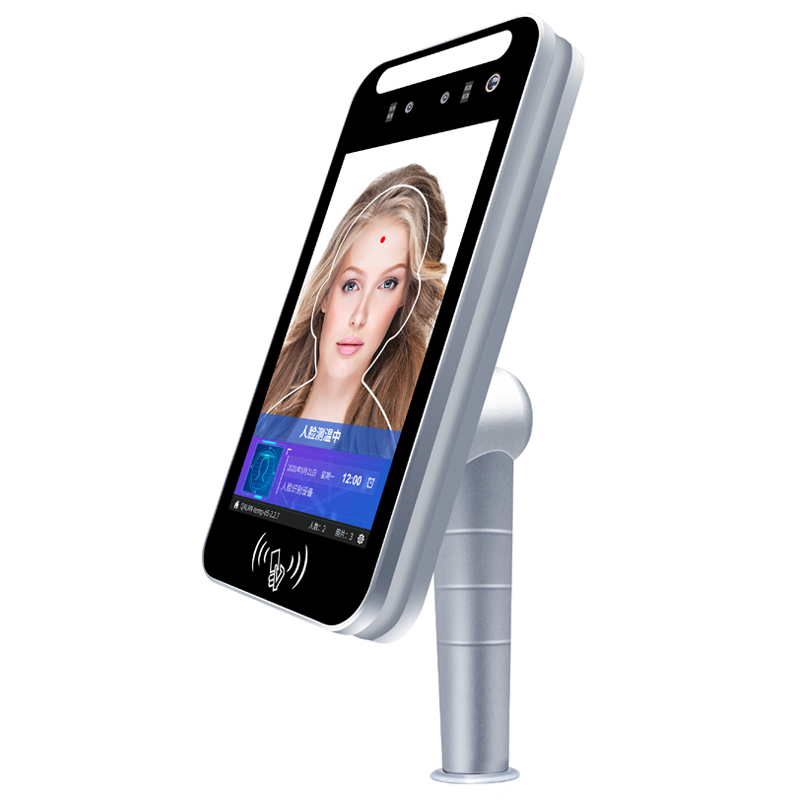

Body Temperature Scanner-non Contact Infrared with 8inch Display Lcd

> Support Access Control & Time Attendance

> Built-in Infrared camera

> Abnormal temperature Alarm

> Detect Distance: 0.3m~0.5m

  • Brand:

    S4A
  • Item NO.:

    FTZN-002
  • Specifications

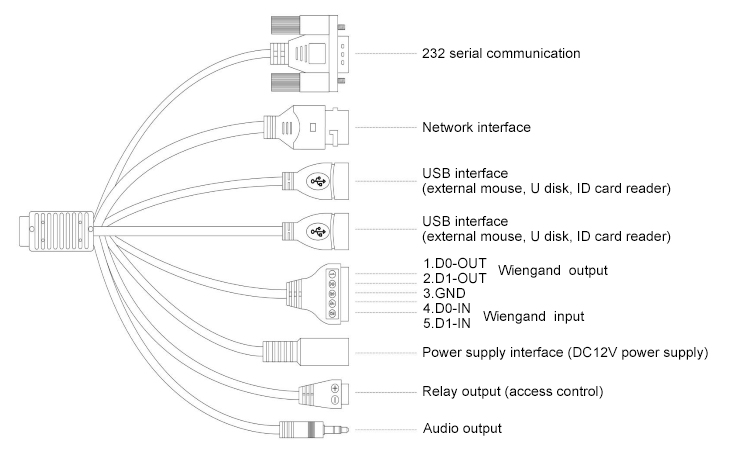

  • Wiring Diagram
  • Package
  • Download

Body Temperature Scanner-non Contact Infrared with 8inch Display Lcd

Model No.: FTZN-002


Application scenarios

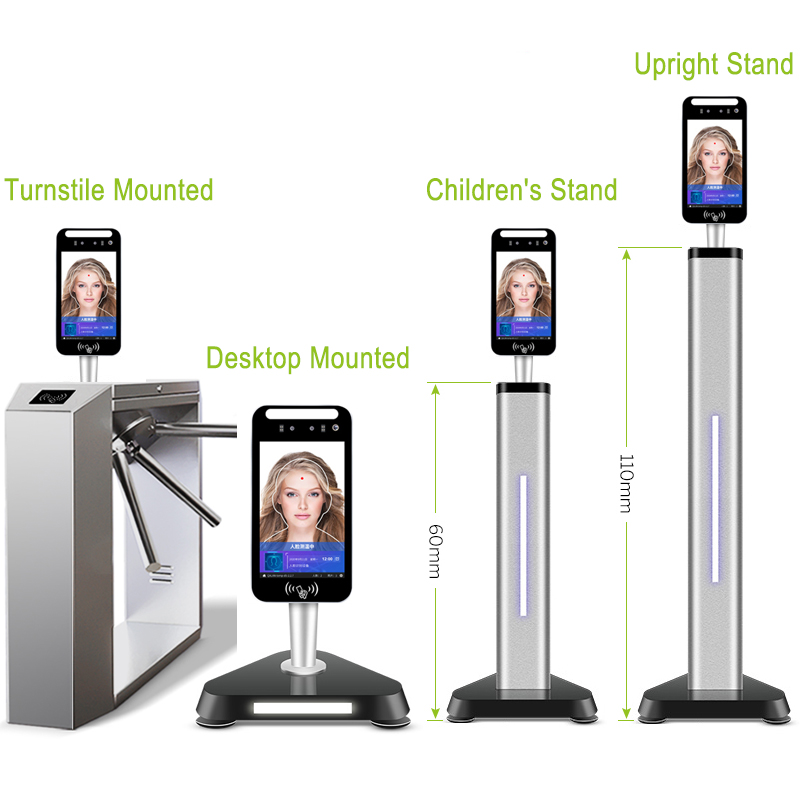

It is suitable for office area, hotel, passage gate, office building, school, shopping mall, store, community, public service and management, etc. where face control is needed.


Product characteristics

1. Support camera capture and face activation device;

2. Adopt the dynamic face detection and tracking recognition algorithm based on video stream;

3. Support device local storage of 10000 face library;

4. When the face database is 3000, the recognition accuracy of 1:n is 99.7% under the condition of error rate of 3/10000;

5. Fast identification speed:

(a) Face tracking and detection takes about 20ms

(b) Face feature extraction takes about 200ms

(c) Face comparison time is 0.2ms (1000 people database, multiple recognition is averaged), 0.5ms (10,000 people database, multiple recognition is averaged);

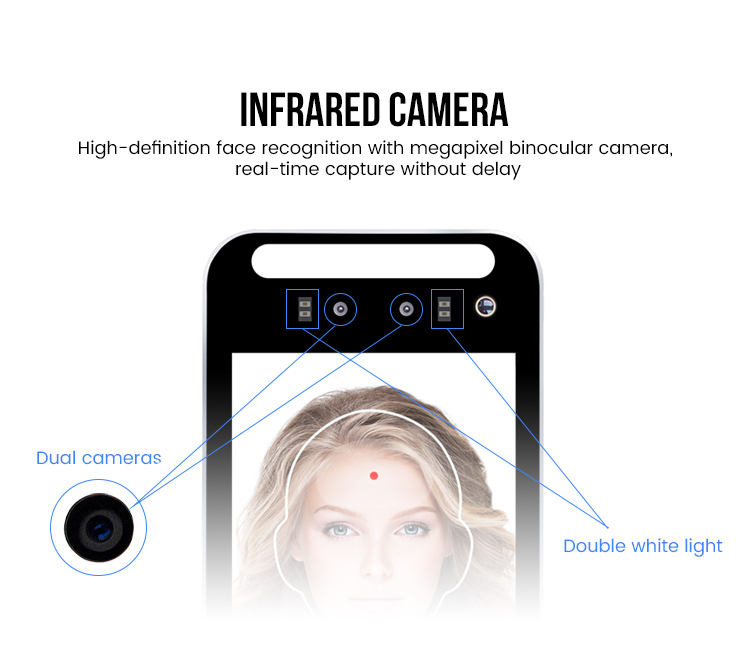

6. Binocular camera with infrared supplementary light;

7. Support the saving of on-site photos during face recognition or stranger detection;

8. support HTTP interface docking;

9. Support the use and deployment of public network and LAN;

10. Support stranger identification comparison function;

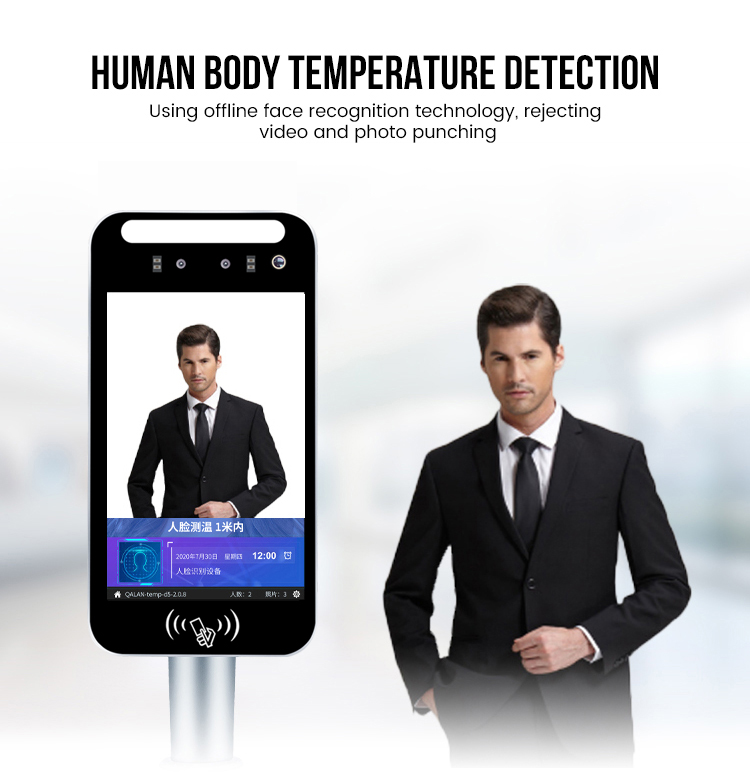

11. Support human body temperature detection and human body temperature measurement under indoor conditions;

12. Support external QR code;

Cautions: The temperature is between 0 ℃ and 35 ℃. This product is not used as a medical device.


Screen

Size

8 inches, IPS LCD screen

Brightness

500 LU

Resolution

800*1028HD screen

Camera

Resolution

200W*200W

Number of cameras

2

Type

RGB Camera

Aperture

F2.0

Focal length

4.3mm

White balance

Automatic

Wide dynamic

Support

Vertical wide angle

52°

Horizontal angle

29°

Core parameters

CPU

4Core, 1.8GHz

Device interface

2GB Memory, 8GB Storage

Interface

Audio

1 Audio output(line out)

Video

HDMI2.0 Type-A interface 1

Relay output

1 relay interface

Network Interface

1 RJ45 10M/100M adaptive Ethernet port, WIFI

Function

Face Detection

Also supports detection and tracking of 5 people

1: N Face recognition

Under the condition of three thousandths of false recognition rate, the recognition accuracy rate is 99.7%

Stranger detection

Support

Recognition distance configuration

Support

Biopsy

Support

UI interface configuration

Support

Device remote upgrade

Support

Deployment mode

Support public network and local area network

Comparison of witness

Support (separately purchase ID card reader)

Face Detection

Support

1: N Face recognition

Within 1 meter

Stranger detection

≤ ±0.3℃

Recognition distance configuration

30℃~42.5℃

Biopsy

Yes

UI interface configuration

Support

Temperature alarm value can be set

Support

Wear a mask to identify

Support

Body temperature over temperature alarm

Support

Outdoor temperature measurement

Support

The temperature alarm value can be-set

Support

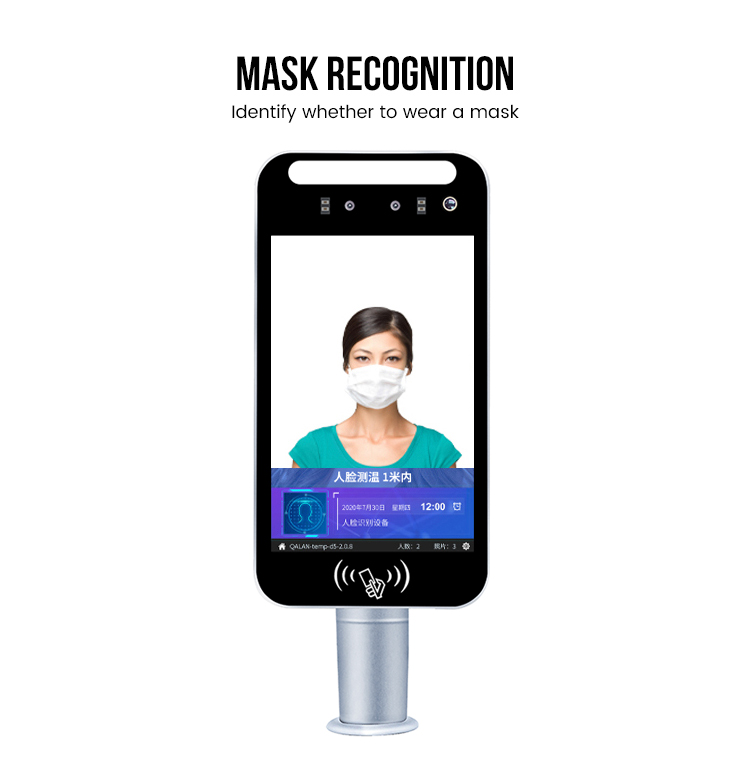

Mask recognition

Support

General parameters

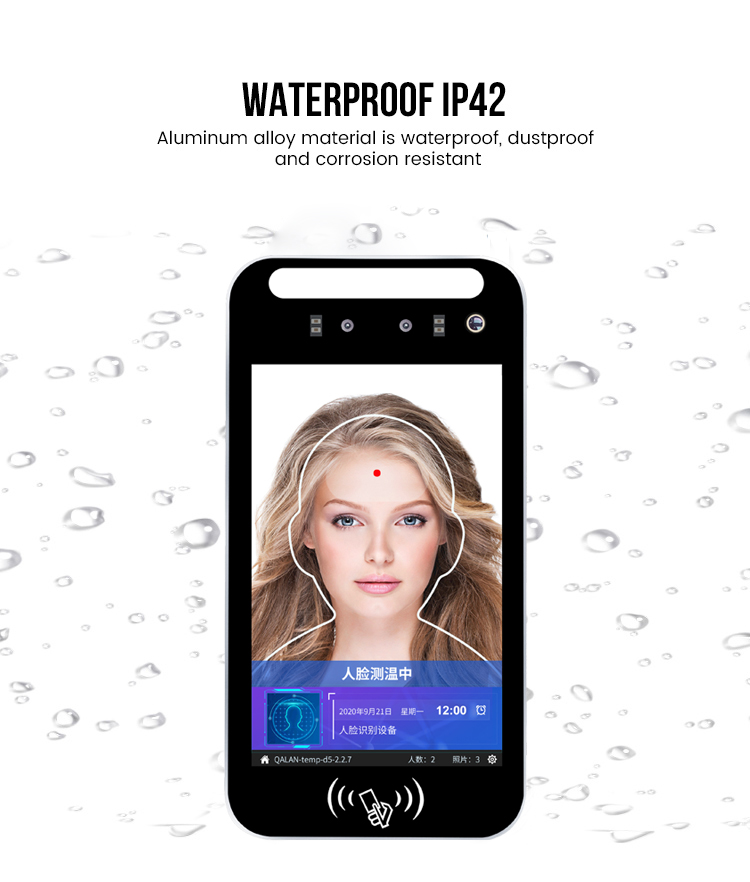

Protection class

IP42, certain dustproof and waterproof function

Power supply

DC12V(±10%)

Operating temperature

-10℃~60℃

Working humidity

10%~90 %

Power consumption

10W MAX

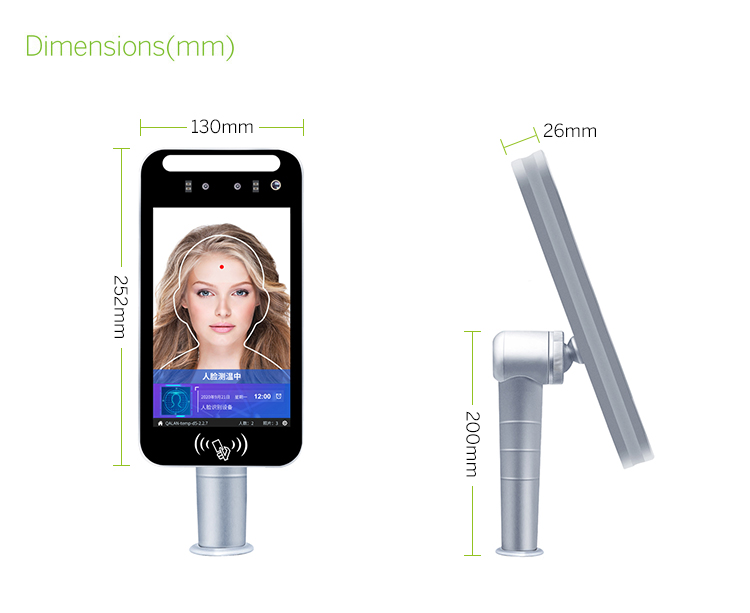

Equipment size

252x130x26mm

Weight

≈2kg


temperature scannertemperature scannertemperature scannertemperature scannertemperature scannertemperature scanner

temperature scanner

Dynamic Face Recognition Access Control with Mask and Multi Language Support

Model No.

Quantity/Carton

Net Weight/KG

Gross Weight/KG

Carton Size

FTZN-002

10 pcs

19KG

25.8KG

79.5x 43x37.8cm


temperature scanner

S4A FTZN-002 Use Manual_Body Temperature Scanner-non Contact Infrared with 8inch Display Lcd
