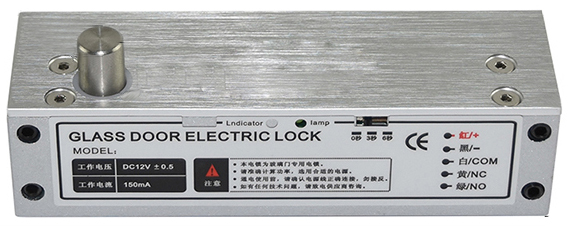

Electric Bolt Lock with Feedback Signal for Frameless Glass Door

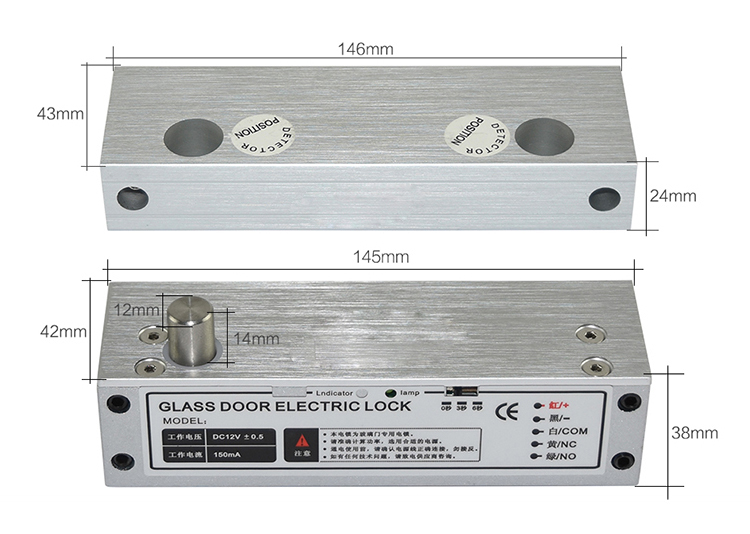

> Face Plate: 150×43×39mm

> Bolt: 17mmDIA, stainless steel 13mm throw

> Timer: 0 / 3 / 6 seconds available to set

> Signal Output: Door Status Output, NO/COM

> Suitable For: 12~15mm Electric Bolt For Fully Frameless

> Open Left or Open Right (Choose One)


  • Brand:

    S4A
  • Item NO.:

    BL-2800
  • Specifications

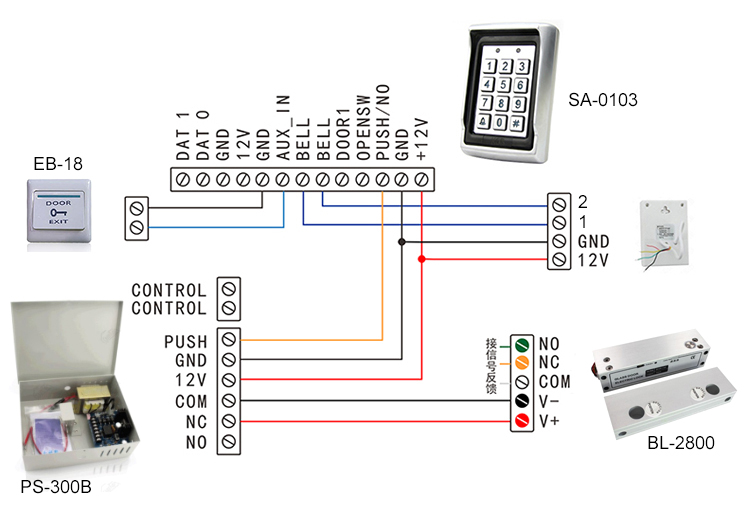

  • Wiring Diagram
  • Package
  • Download

Electric Bolt for Frameless Glass Door (5wires)

Model No.: BL-2800


I. Fail-Safe: Adjustable fail-safe (Power to lock)

Adjustable to fail-secure (power to open) for high-security places. Adjustable to fail-safe (Power to lock) for public places.
Adjustable to fail-secure (power to open) to achieve long unlock state function.

Face Plate

170Lx48WX40H(mm)

Bolt

17mm(Throw) x 13mm(Diameter)

II. Built-in oval cylinder as unlocking the device

Use of an oval cylinder to unlock when a power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when the door is not open within 5 seconds


III. Bolt lock Suitable For Fully Frameless Glassdoor

Fail-Safe/Fail secure

power to lock/power to open

Voltage

DC12V

Start Current

900mA

Face place material

Stainless steel

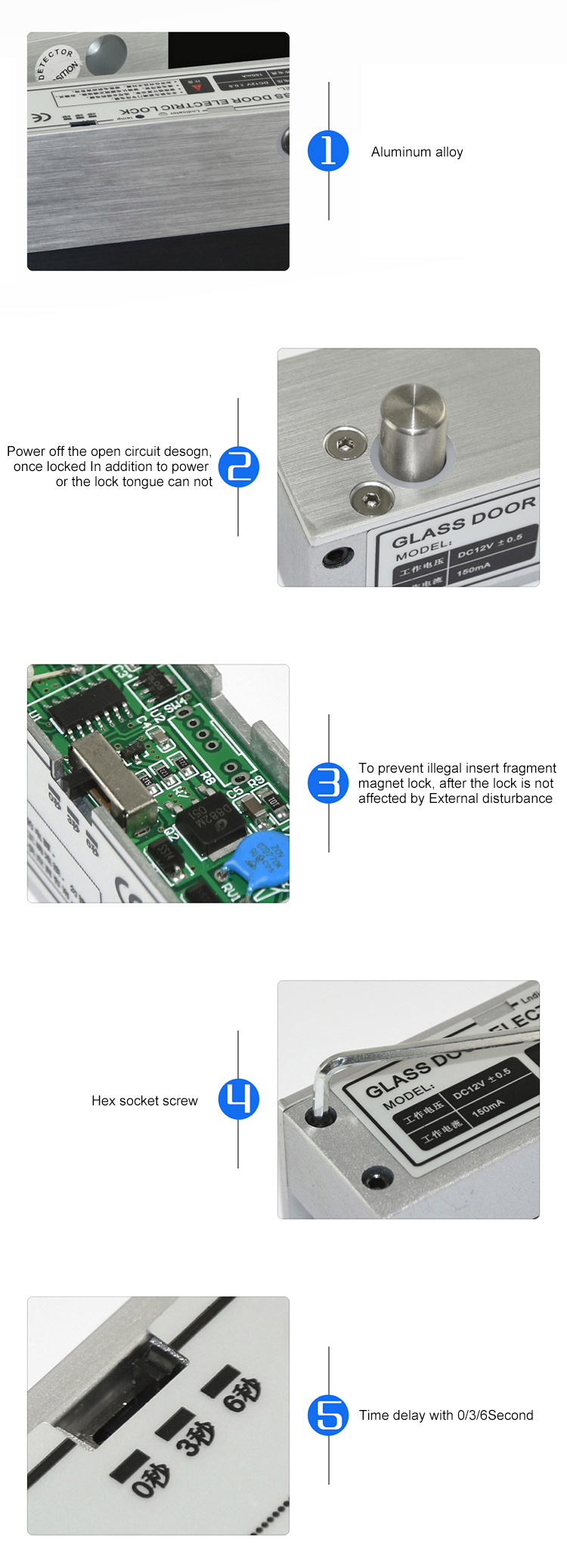

IV. Bolt lock with a timer to set

With a delay timer, When you swiping your card and do not open the door, the bolt lock will lock itself within 0/2.5/5S


V. Four lines electric bolt lock with door state detection output point

6-line magnetic output with LED detection when the door opened, the detection point gets red, when the door closed, the detection light turned off.NO/COM Detection point advise you working status.

Bolt Electric

Bolt Electric

Bolt Electric

Electric Bolt Lock with Feedback Signal for Frameless Glass Door

Model No.

Quantity/Carton

Gross Weight

Carton Size

BL-2800

20PCS

15KGS

37.5x35x12cm

Bolt Electric

S4A Datesheet_Electric Bolt for Frameless Glass Door (5wires)
