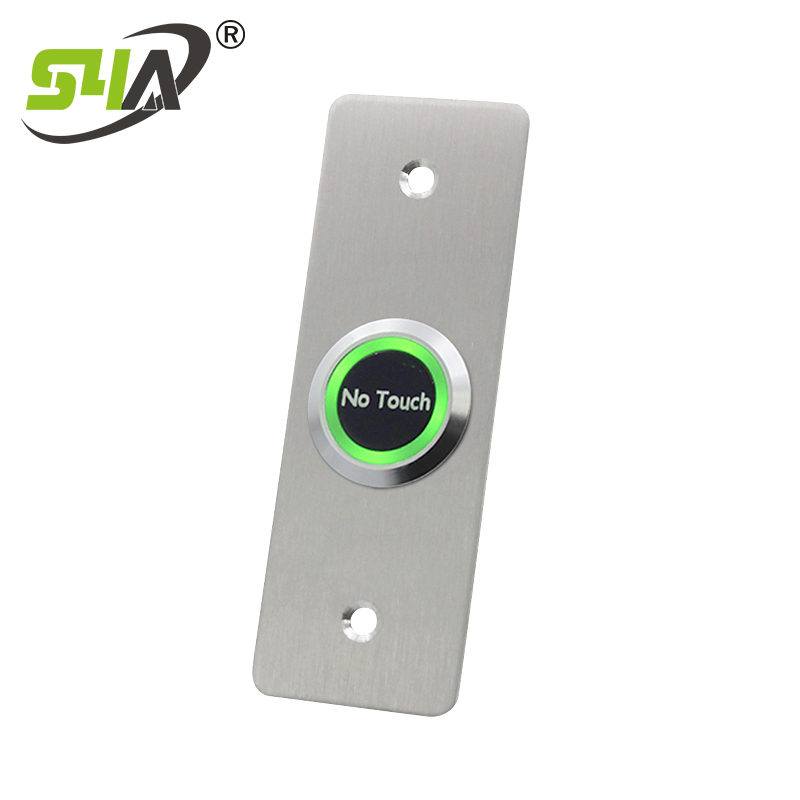

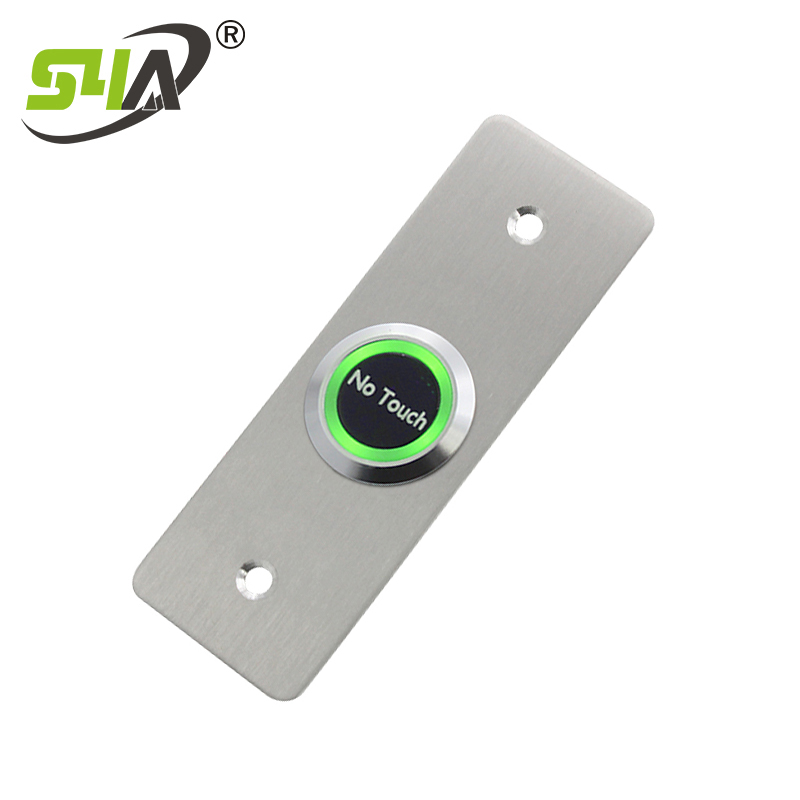

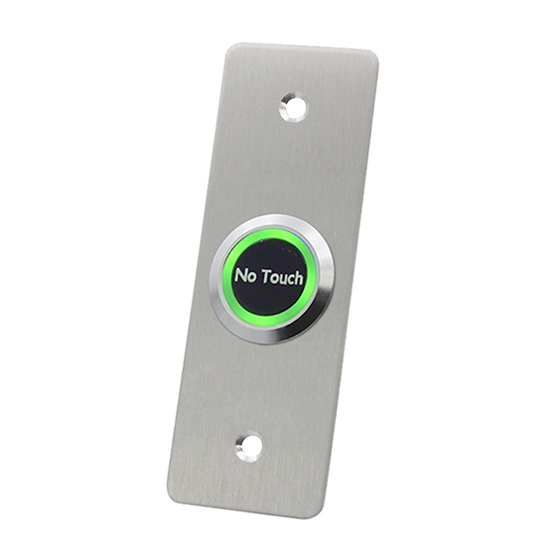

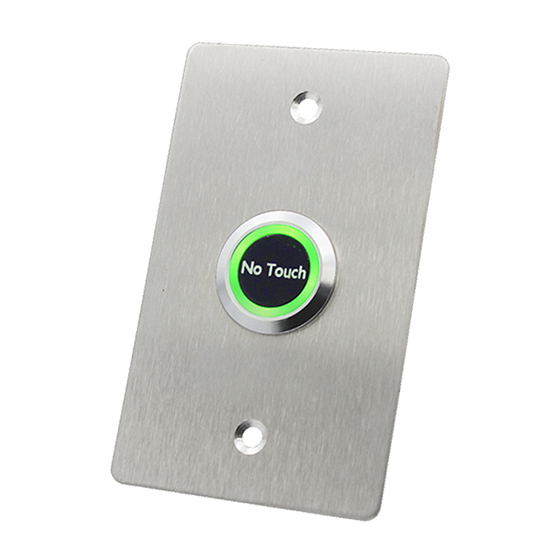

Access Control Infrared Door Exit Push Button

>Dimension: 86x86mm
>Current:10mA
>Output:NO, NC, COM

  • Brand:

    S4A

  • Item NO.:

    NS86
Inquire Now
  • Specifications

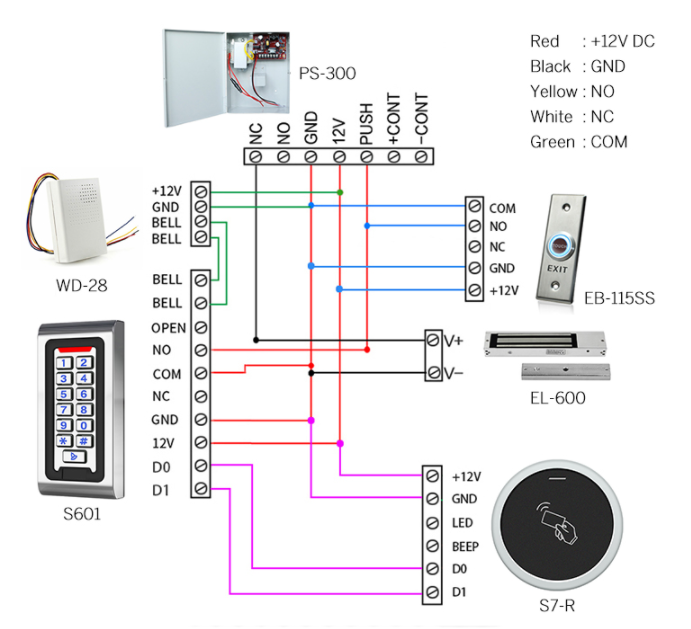

  • Wiring Diagram
  • Download

Access Control Infrared Sensor Exit Button

Model No: NS86


Material

Metal

Voltage

DC12V

Current

10mA

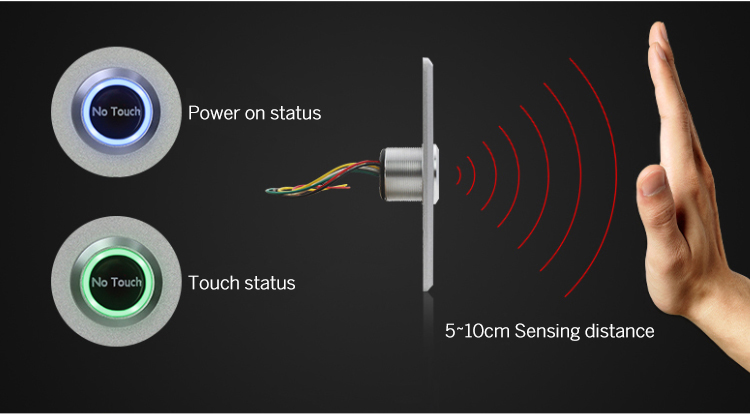

Sensor distance

5-10CM

Current Rating

3A,36VDC Max

Output

NO, NC, COM

Dimension

86 x 86mm

Weight

0.14kg

Exit Button

Exit Button

Exit Button

S4A_Datesheet_Access Control Infrared Sensor Exit Button

Download
Related Tags : Exit button Infrared Door Exit Push Button Exit Push Button Access Control Infrared Door Exit Push Button
