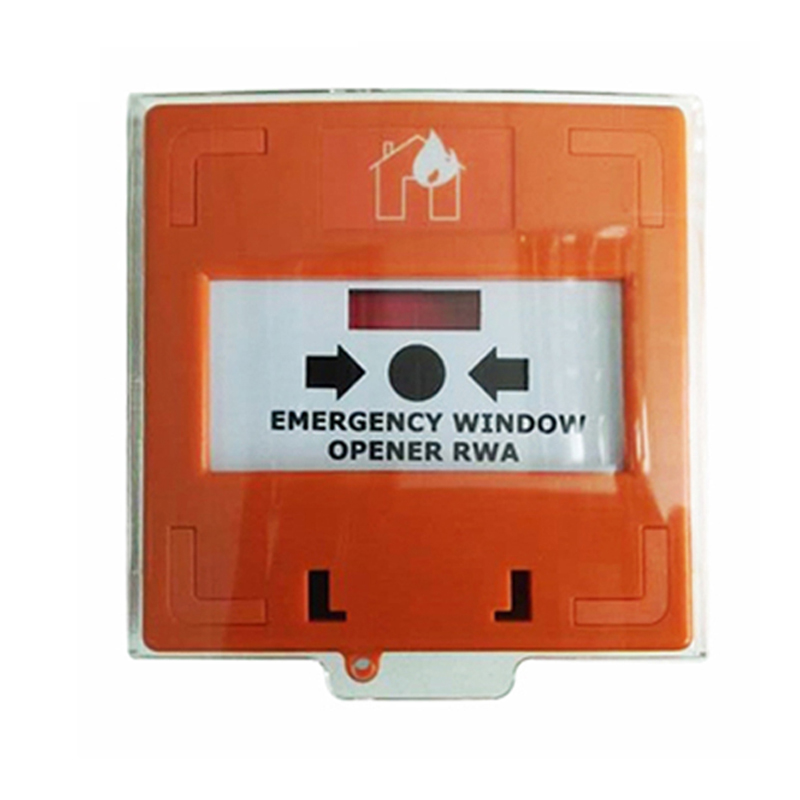

EB-20C Resetable Switch Call Point (Orange)

>SPDT / NO/NC/COM
>Material: ABS, PC (transparent part)
>Standard Structure:  Fireproof Material, Easy to install

  • Brand:

    S4A

  • Item NO.:

    EB-20C(Orange)
Inquire Now
  • Specifications

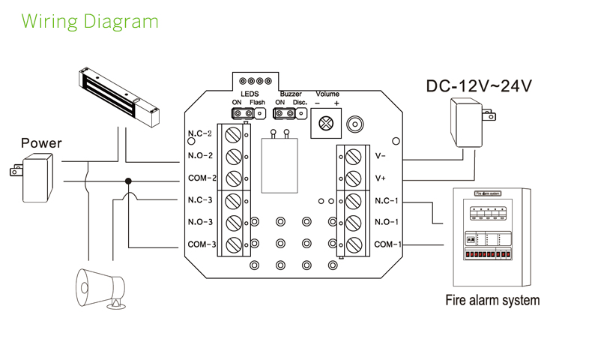

  • Wiring Diagram

EB-20C Resettable Switch Call Point (Orange)
Model No.: EB-20C(Orange)

Product Parameter

Parameter Description

S4A Model

EB-20C

Product Name

Resettable Switch Call Point includes a Plastic cover


Dimensions

90Lx93Wx45H(mm)

Material

ABS, PC (transparent part)

Surface

Surface Mount


Standard Structure

 Fireproof Material, Easy to install

Operation current

DC 12V/18mA(Standby)/75mA(Operation) (±5%)
DC 24V/11mA(Standby)/41mA(Operation) (±5%)

Output

N.O.N.C.&COM. Output(Maximum load of 125V/3A)

Power Supply

X

Buzzer

X

Indicator

X

Color

 Red, White, Green, Orange, Yellow, Black, Blue


Unit Weight

0.2KG

Standard Package

100PCS/carton

Carton Weight

20KG

Carton Size

50*45*24(cm)
