>SPDT / NO/NC/COM
>Surface: Surface Mount
>Material: ABS, PC (transparent part)
Brand:
S4AItem NO.:

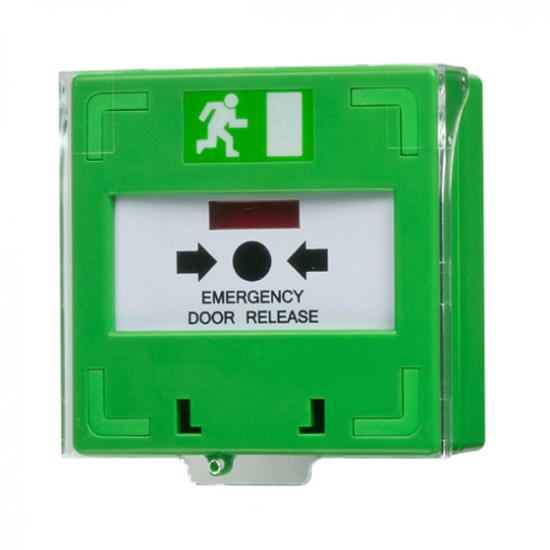

EB-20C(Green)EB-20C Resettable Switch Call Point (Green)
Model No.: EB-20C(Green)
|
Product Parameter |
Parameter Description |
|
S4A Model |
EB-20C |
|
Product Name |
The resettable Switch Call Point includes a Plastic cover |
|
|
|
|
Dimensions |
90Lx93Wx45H(mm) |
|
Material |
ABS, PC (transparent part) |
|
Surface |
Surface Mount |
|
|
|
|
Standard Structure |
Fireproof Material, Easy to install |
|
Operation current |
DC 12V/18mA(Standby)/75mA(Operation) (±5%) |
|
Output |
N.O.N.C.&COM. Output(Maximum load of 125V/3A) |
|
Power Supply |
X |
|
Buzzer |
X |
|
Indicator |
X |
|
Color |
Red, White,Green, Orange,Yellow,Black, Blue |
|
|
|
|
Unit Weight |
0.2KG |
|
Standard Package |
100PCS/carton |
|
Carton Weight |
20KG |
|
Carton Size |
50*45*24(cm) |
| Item Number | Description | Quantity | Cartons | Net Weight | Gross Weight | CARTON SIZE |
| pcs | (Total) | Carton/KG | Carton/KG | (CM) | ||
| EB-20C(Green) | Resetable Switch Call Point (Green) | 100pcs | 1 | 19KG | 20KG | 50*45*24 |
Material: ABS+PCOperating Voltage: DC12Color: WhiteOutput: Normally open, optional normally close
>Operating Voltage Range:DC9~28V >Alarm Current:45mA @ DC 24V >Dimensions:140x105x45mm
Material:ABS fireproofUsage: Alarm, door releasePower Supply Voltage: DC 12 V/24VColor: Grey/WhiteOutput contact: N.O & N.C
> Material: Baking Finish> Dimension: 65x15.5x5cm 100x15.5x5cm
Material: Baking Finish or Stainless Steel 304
Dimension: 182x78x60mm
> Material: 304 Stainless Steel> Dimension: 65x15.5x5cm 100x15.5x5cm
Dimension: 86x86x50mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
