> Built-in LED, door sensor, and time delay
> Voltage: DC12V or DC24V
> Current Draw: 12V/500mAx2 24V/250mAx2
Brand:
S4AItem NO.:

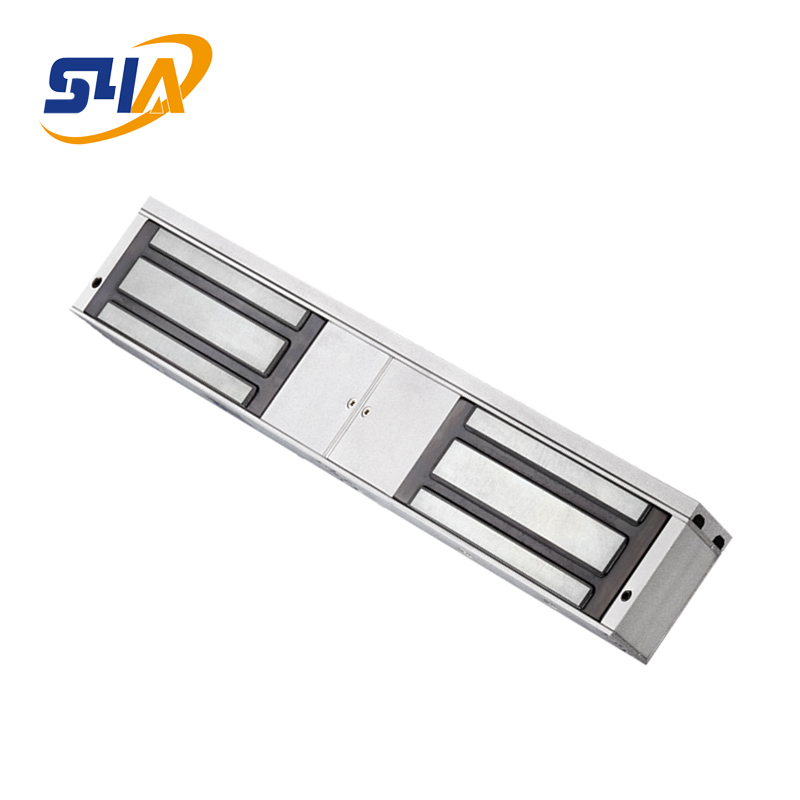

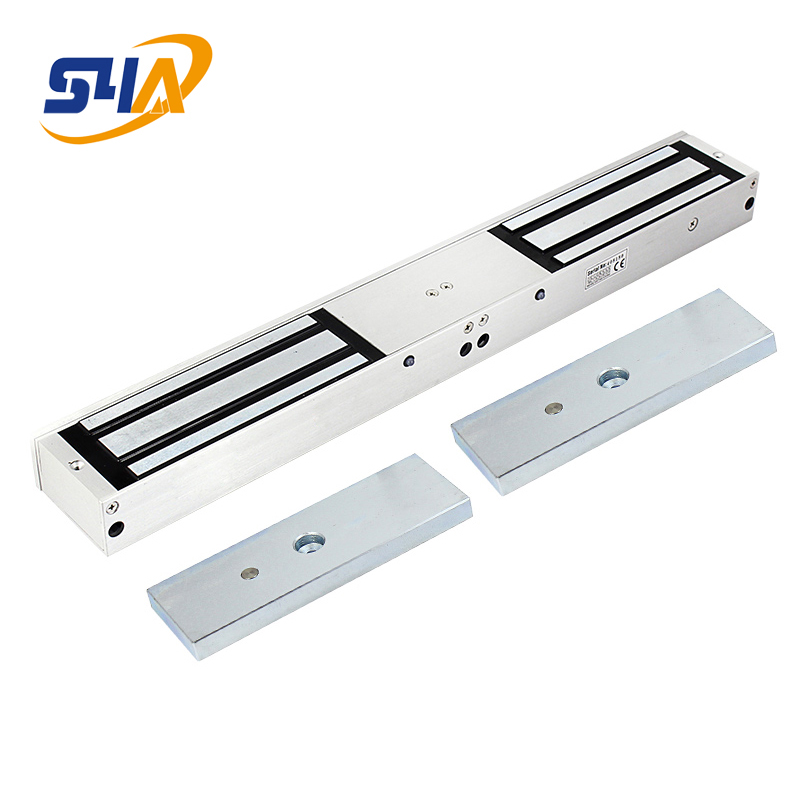

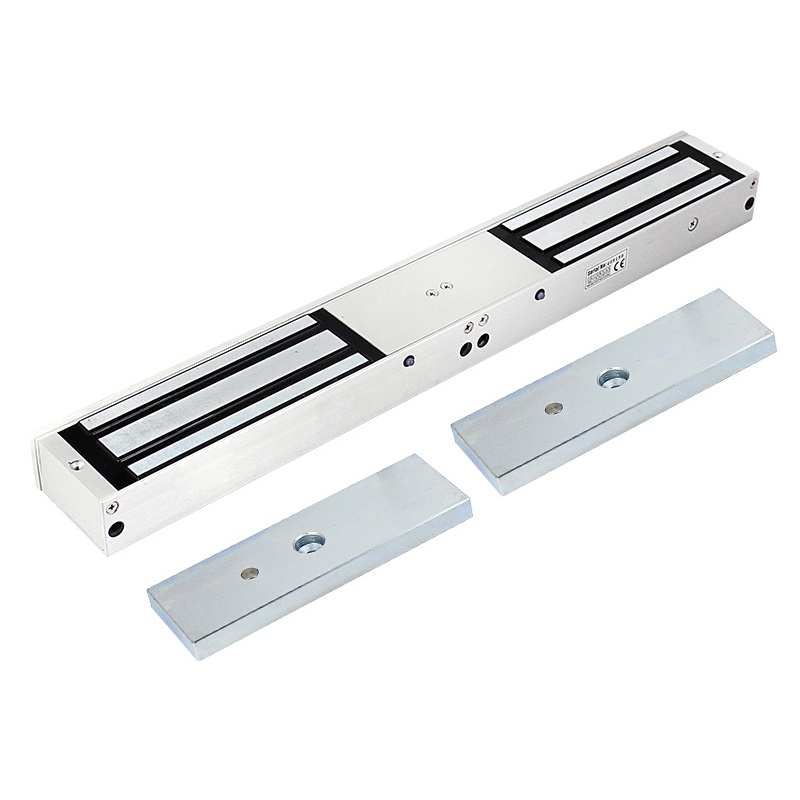

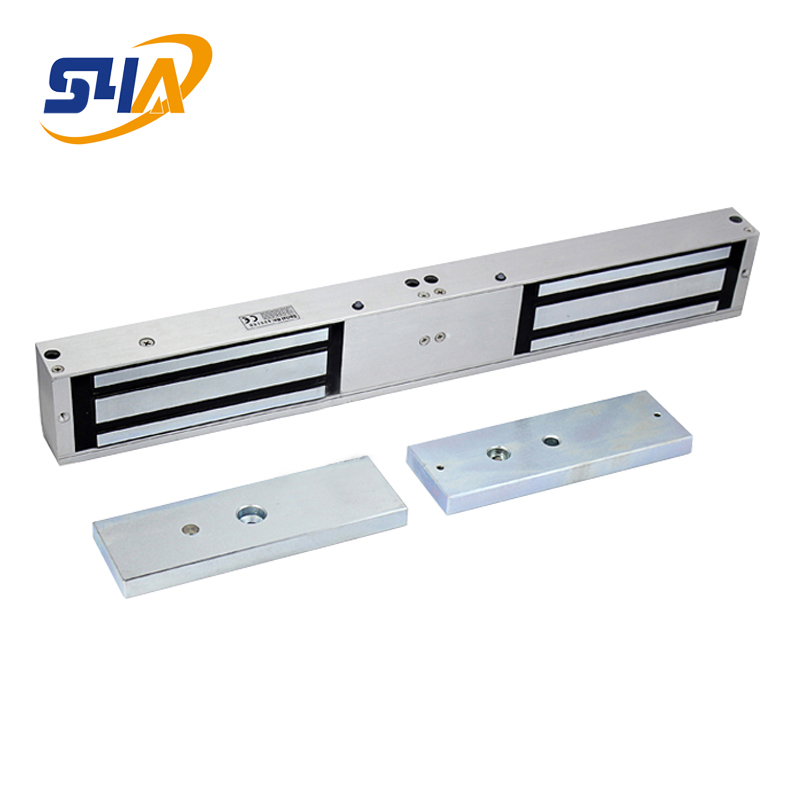

EL-1200DSTDouble Door 500KG Magnetic Lock
Model No.: EL-1200DST
What is Electromagnetic Lock?
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. There are two main types of electric locking devices. Locking devices can be either "fail safe" or "fail secure". A fail-secure locking device remains locked when power is lost. Fail-safe locking devices are unlocked when de-energized. Direct-pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action. Because the mating area of the electromagnet and armature is relatively large, the force created by the magnetic flux is strong enough to keep the door locked even under stress.
Product Parameter | Parameter Description |
EL-1200D | Without indicator lights |
EL-1200DS | With LED (Red only) |
EL-1200DST | Built-in LED, door sensor, and time delay |

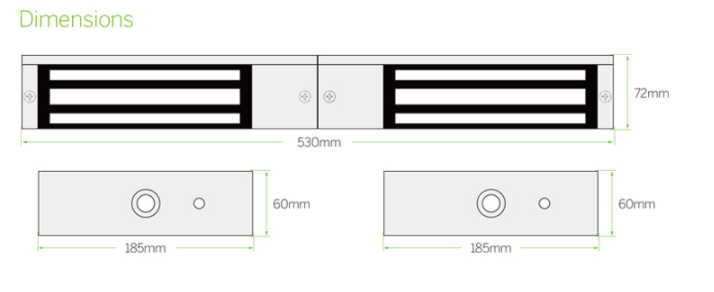

Lock Dimension | 530Lx72Wx40H(mm) |
Armature Plate Dimension | 185Lx60Wx13H(mm) |
Holding Force | 500kgx2(1200Lbsx2) |
Input Voltage | DC12V or DC24V |
Current Draw | 12V/500mAx2 24V/250mAx2 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-D1200S |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 9KG |
Standard Packing | 4pcs |
Double Doors 500KG Magnetic Lock | |||
Standard Carton box | Unit Size | Gross Weight /pcs | Gross Weight /Carton |
4pcs | 530Lx72Wx40H(mm | 9kg | 36.5KG |
