> Without indicator lights

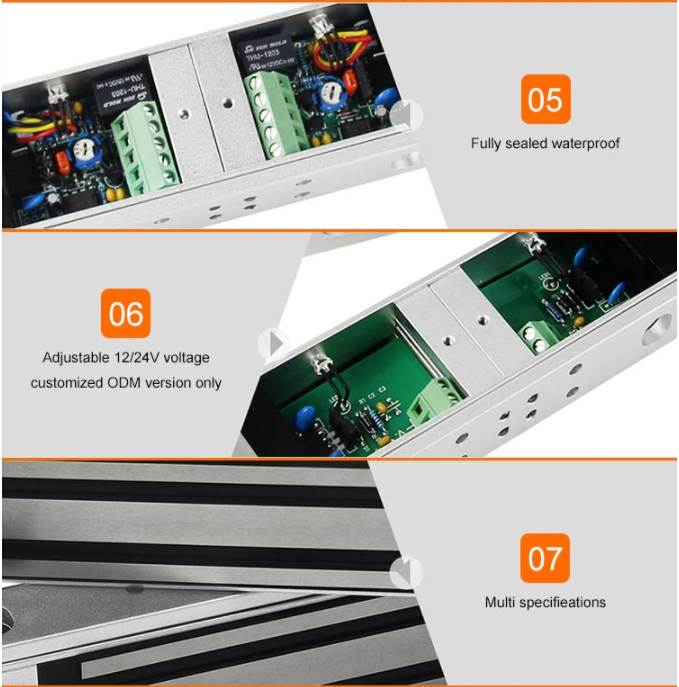

> Voltage: DC12V and DC24V(adjustable)
> Holding Force: 500KG(1200Lbs)
Brand:
S4AItem NO.:

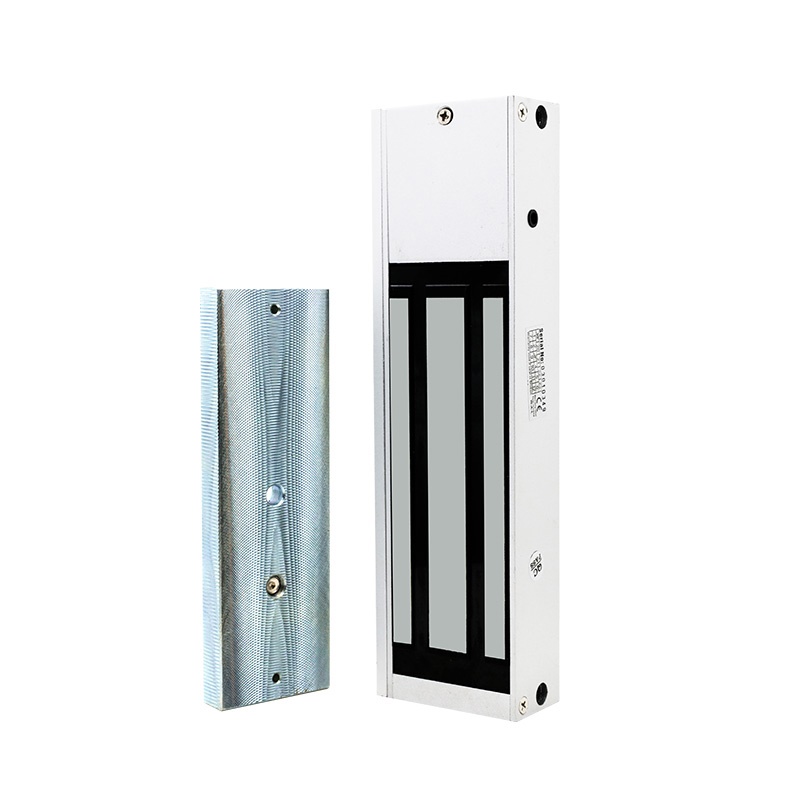

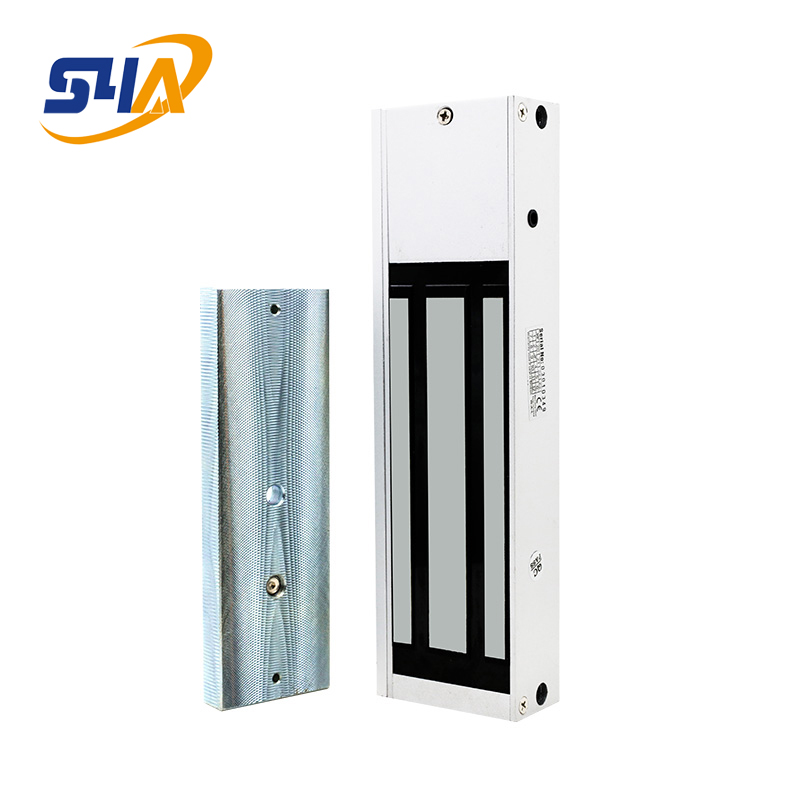

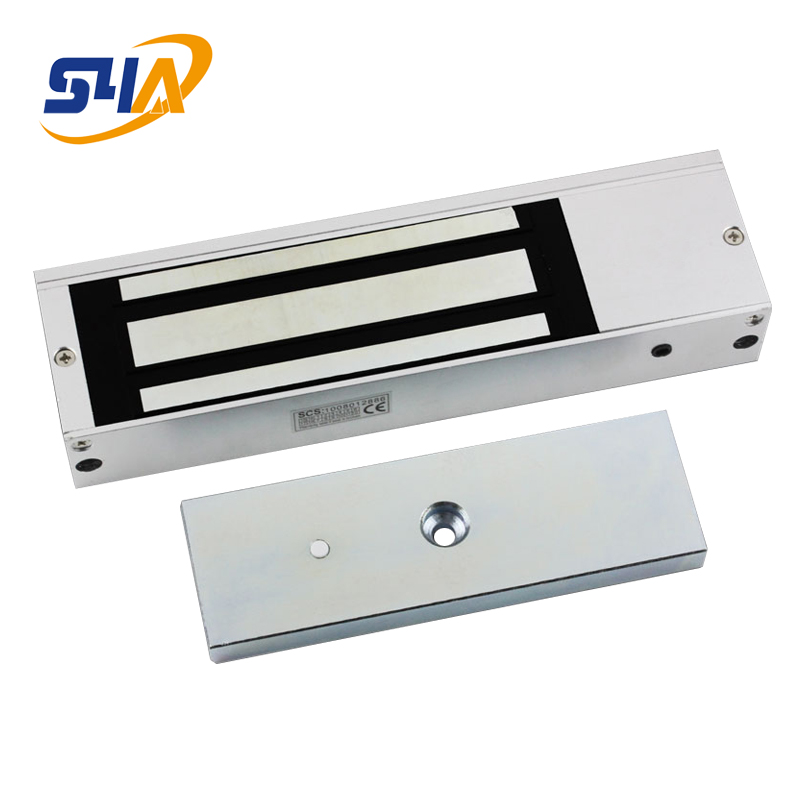

EL-1200Single Door 500KG Magnetic Lock
Model No.: EL-1200
A magnetic lock is a magnet that is created when an electrical current is passed through a wire with multiple coils around an iron core, or a solenoid (single coiled wire wrapped around a metal core). When the electrical current is disrupted the metal wire is no longer magnetized. Because of the very nature of an electromagnet, it can not be fail-secure, which means that in the result of an emergency or power outage, the doors will unlock. The built-in feature of unlocking in the result of a power outage (referred to as fail-safe) is the basic operating premise of the electromagnet or maglock.
EL-1200 | Without indicator lights |
EL-1200S | With LED (Red only) |

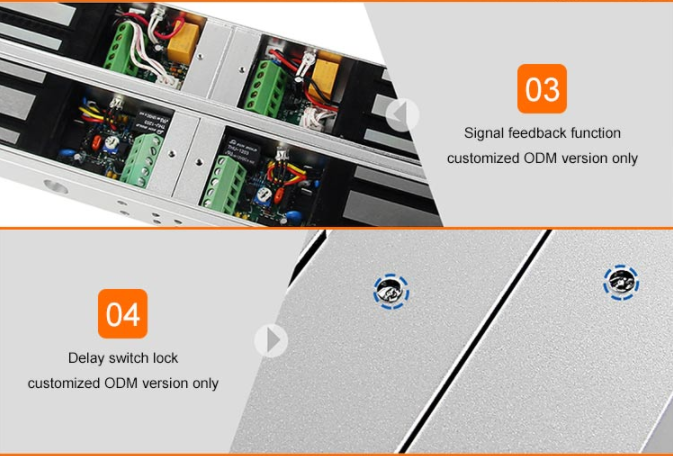

EL-1200SD | Built-in LED and door sensor |
EL-1200ST | Built-in LED, door sensor, and time delay |
EL-1200SZ | LED, door sensor, and Buzzer |

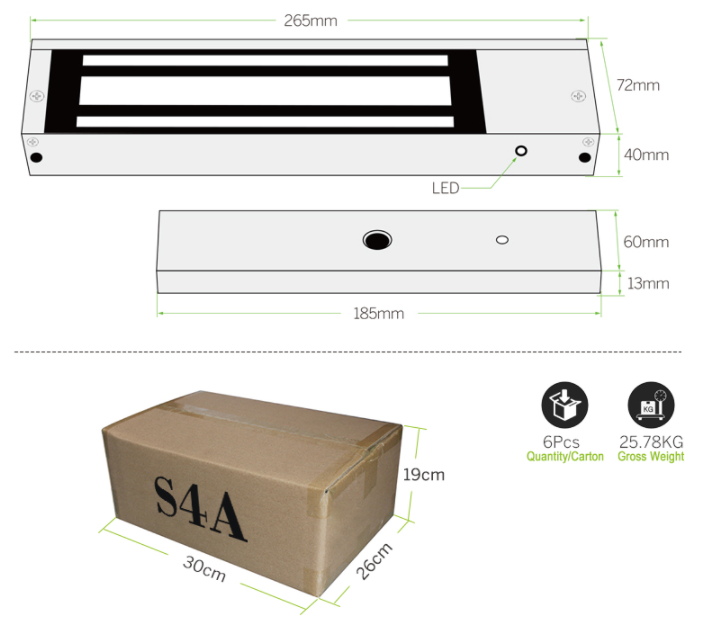

Lock size | 265Lx72Wx40H(mm) |
Plate | 185Lx60Wx13H(mm) |
Holding Force | 500kg(1200Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/420mA 24V/210mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |

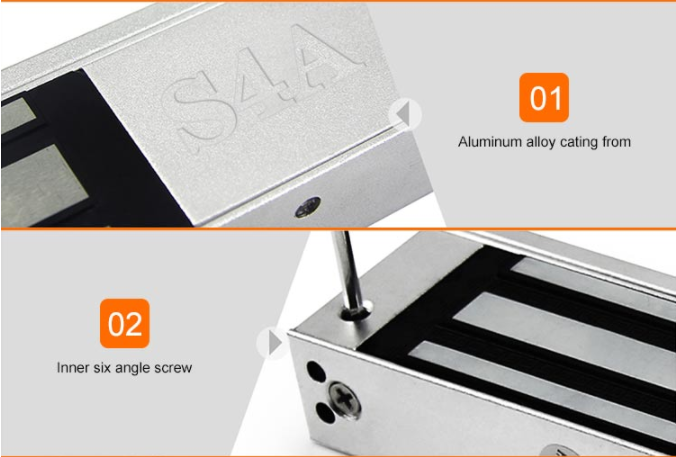

Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5kg |
Standard Packing | 4pcs |
1200lb Magnetic Lock Single Door Stainless Steel | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EL-1200 | 6pcs | 25.78KG | 30x26x19cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
