> Without Signal Output
> Current Draw: 12V/480mA 24V/240mA
> Voltage: DC12V or DC24V
> Holding Force: 350KG (800Lbs)
> Lock Size: 273Lx44Wx27.5H(mm)
> Armature plate: 180x45x11(mm)
Brand:
S4AItem NO.:

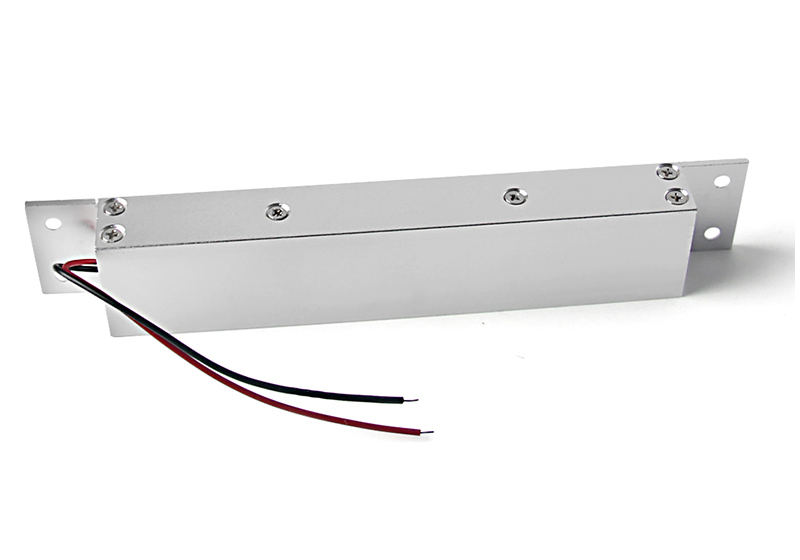

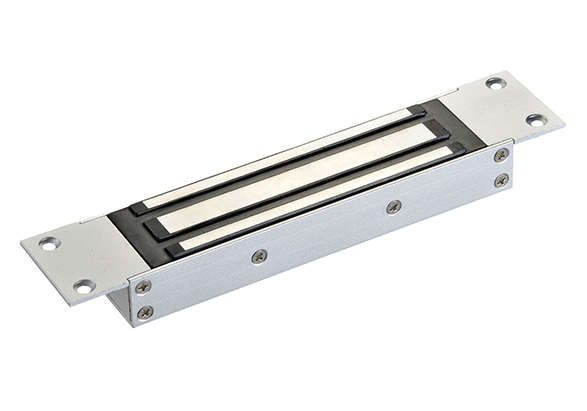

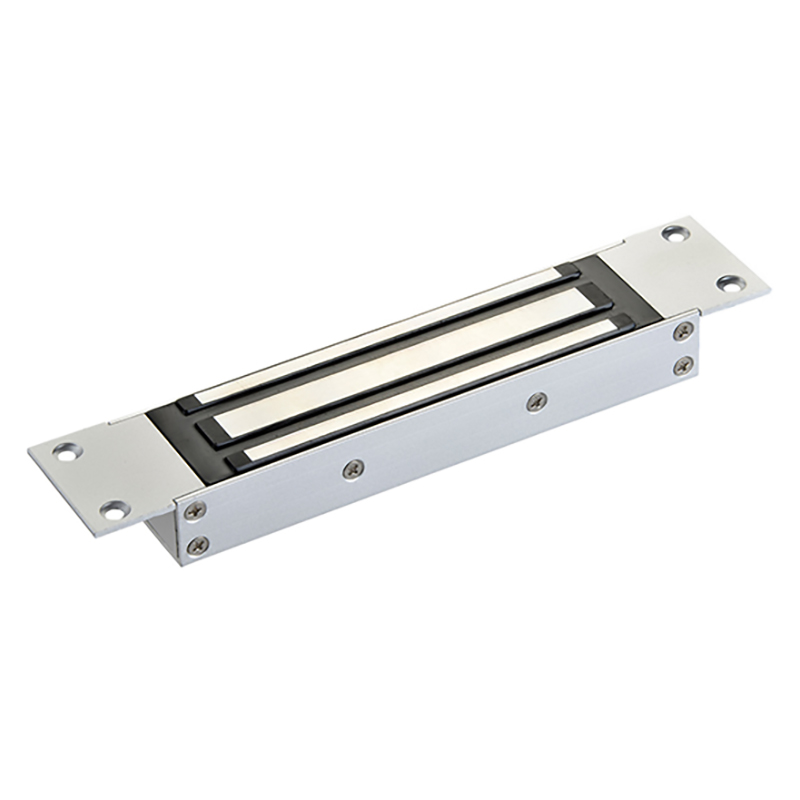

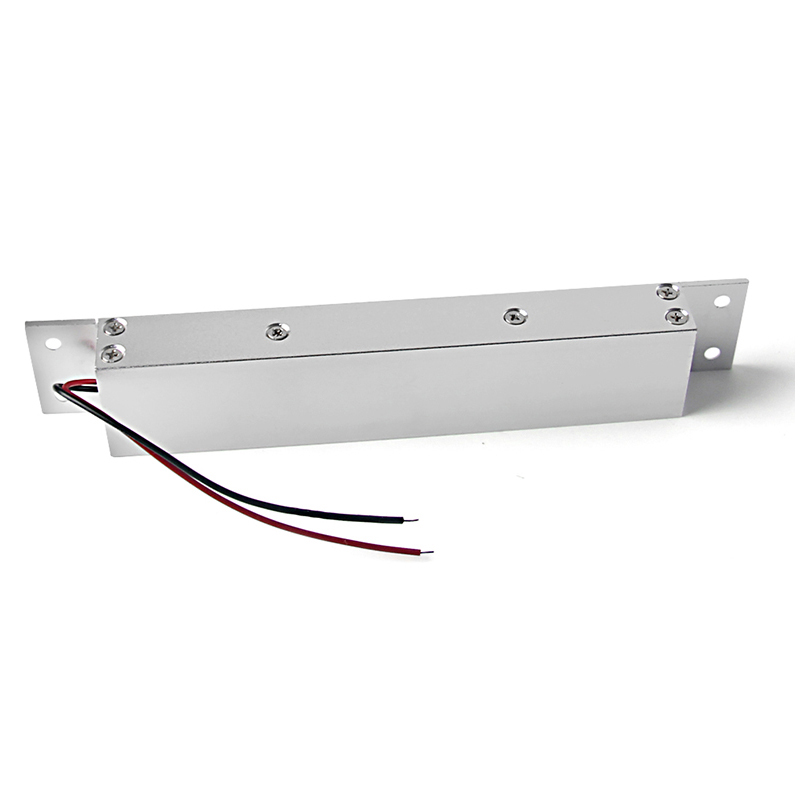

EM-800TMortise Mount Lock 350KG (800Lbs)
Model No.: EM-800T
What is Electromagnetic Lock?
The design of the magnetic lock (or electromagnetic lock) is the same as that of the electromagnet, which uses the principle of electromagnetism. When the current passes through the silicon steel sheet, the electromagnetic lock will generate a strong suction force and tightly absorb the adsorption iron plate to achieve the effect of locking the door. A very small current will also cause the electromagnetic lock to generate a large magnetic force. The access control system that effectively controls the power supply of the electromagnetic lock will cut off the monthly power after the correct identification of the person, and the electromagnetic lock will open the door when it loses its suction.
EL-800T | Without Signal Output |
EL-800TS | With Signal Output |
Lock size | 273Lx44Wx27.5H(mm) |
Armature Plate | 180Lx45Wx11H(mm) |
Working voltage | DC12V or DC24V |
Current Draw | 12V/480mA 24V/240mA |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃（14°F-131°F） |
Finishes for shell | Anodized Aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2.7KG |
Mortise Mount Magnetic Lock 350KG (800Lbs) | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EM-800T | 10pcs | 23.3KG | 34x30x15cm |

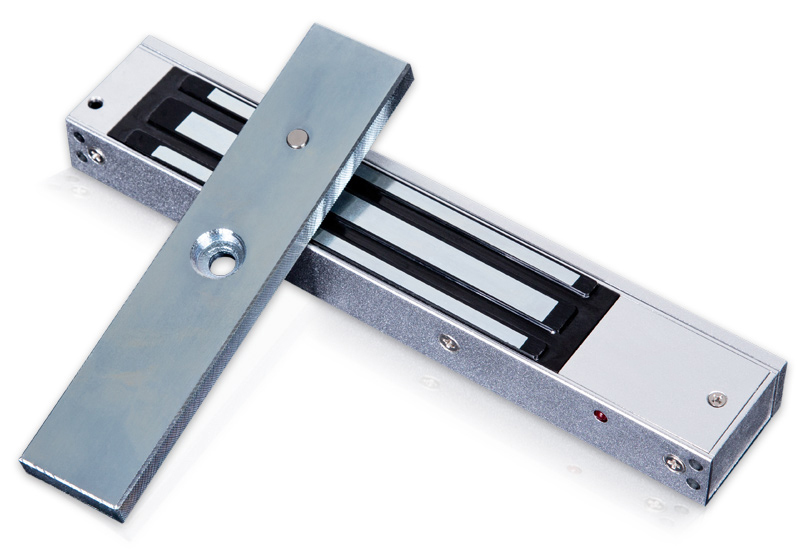

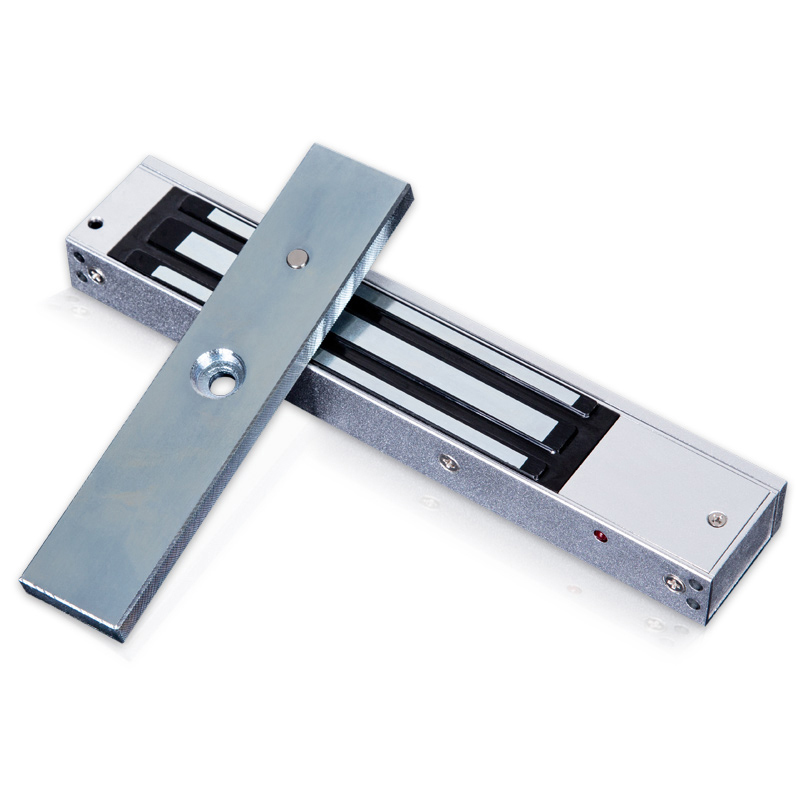

> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> With LED (Red only)> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED and door sensor> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED, door sensor and time delay> Single door 350KG=800lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and Buzzer> 100% Copper Single door 350KG=800lbs > Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Lock Size: 285Lx55Wx27.5H(mm)
> Without Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> With Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> Without indicator lights> Voltage: DC12V or DC24V> Current Draw: 12V/480mAx2 24V/240mAx2> Holding force: 350KGx2 (800LBSx2)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
